| Model: | MPJ08 |
|---|---|
| Brand: | Criticare,Datascope,Mindray,Philips |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | Medical connector , Matel connector , NIBP connector |
| Price: |
US $1
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:14 Sep, 2023 |
OEM:
| AMC | CN-BP13 |
|---|---|
| 330059 | |
| Pacific Medical | PM12 |
| Welch Allyn | 5082-184 |

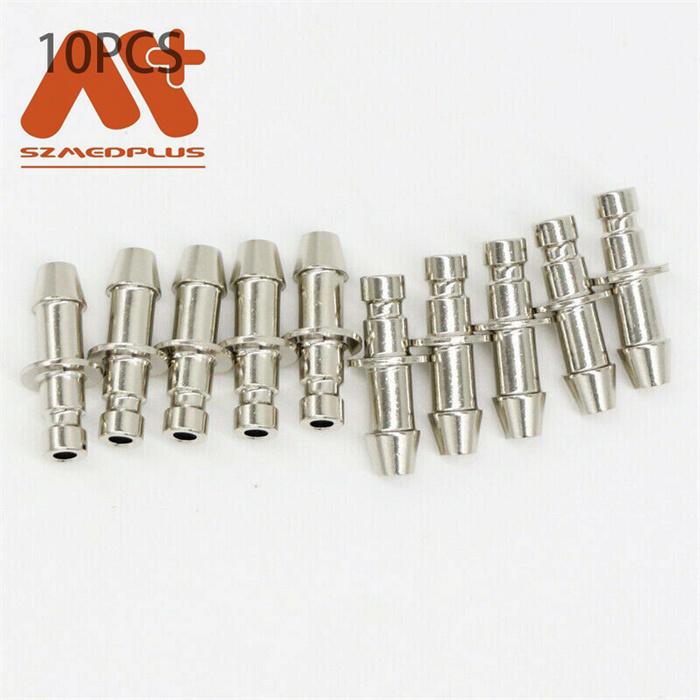

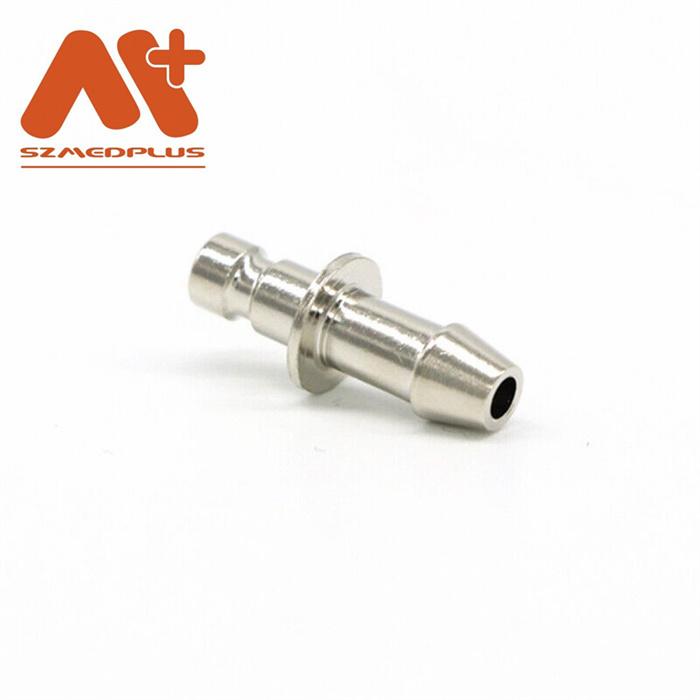

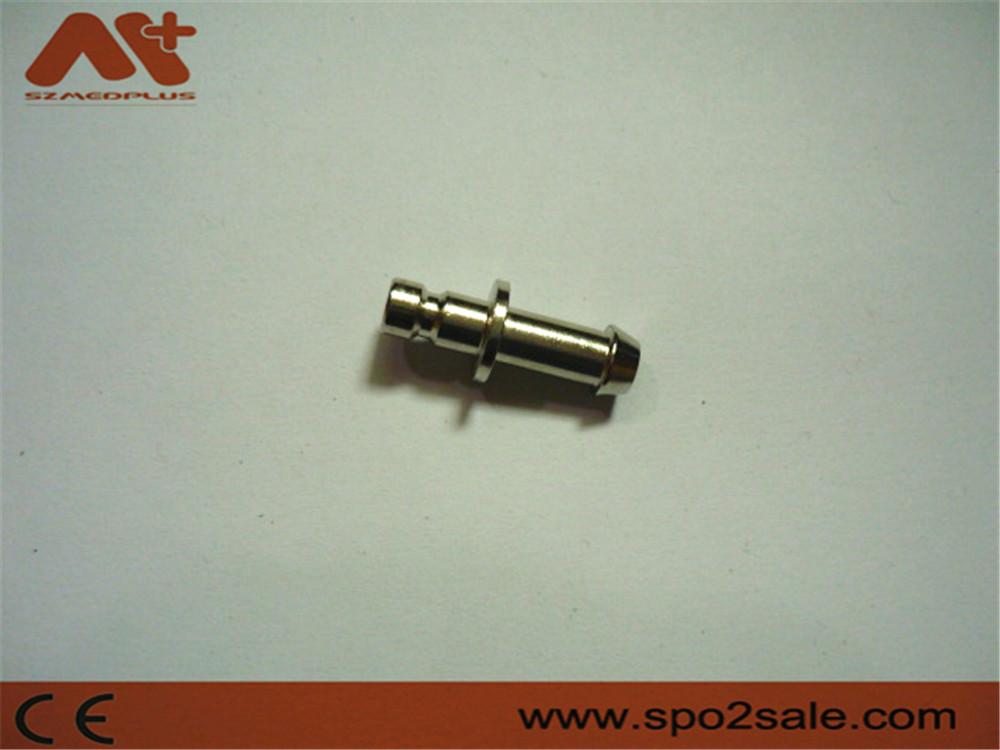

NIBP connector with the following main features:
1.Quick connect and disconnect, push-pull
2.Life cycles: 5000 mating
3.Air leakage: when the pressure is 400mmHg, it is less than 6mmHg within 3min.
4.Material: copper alloy housing, nickel plating.
Technical Specifications:
|
Barb Diameter |
5.00 mm |
|
Working temperature |
-20°-120° |
|
Certifications |
RoHS Compliant |
|
Connector Material |
copper alloy housing, nickel plating |
|
Distal Connector 1 |
Male, Metal, Quick Disconnect (Bayonet) |
|
Packaging Type |
Bag |
|
Packaging Unit |
1 |
|
Weight |
0.1KG |
|
Life cycles: |
5000 Times |
| Payment Terms: | 100%TT |
|---|---|
