Teflon Conveyor Belt for Microwave Machine

Model:YM-CB
Brand:YeMai
Origin:Made In China
Category:Industrial Supplies / Machinery / Convey Belt
Label:teflon belt , teflon mesh belt , teflon plane belt
Price: US $50 / M
Min. Order:10 M
Inquire Now Add to Basket

Member Information

Detail

Jinan Adasen Machinery Equipment Co.,Ltd

Free MemberShan Dong - China
Live Chat:Last Online:08 Dec, 2018

Product Description

Industructions:

Teflon conveyor belt: also known as Teflon conveyor belt, Teflon conveyor belt, PTFE conveyor belt and high temperature conveyor belt, Teflon conveyor belt Teflon mesh conveyor belt and Teflon plain cloth belt two In both cases, Teflon resin is coated with a glass fiber cloth as a base material to make a Teflon (PTFE) conveyor belt base fabric; Teflon belts are differentiated by thickness, and the thin ones can be reached. 0.08MM. Teflon mesh is defined by the size of the mesh, mainly meshes of 1×1MM, 2×2.5MM, 4×4MM, 10×10MM, etc., and according to the difference between warp and weft, single and double wefts Fluorone grid cloth;


Teflon conveyor belt features:
 Teflon conveyor belt continues the characteristics of Teflon itself, with high temperature (from low temperature -140 °C to high temperature 260 °C), corrosion resistance (for most of the chemicals and solvents are not affected), anti-adhesion ( Almost all adhesives such as resin, paint, and chemicals can be easily removed).

Teflon conveyor belt application:
Teflon plain cloth tape has high temperature resistance, small table friction coefficient and good insulation properties. It is widely used in microwave drying, bonding machines, garment printing and dyeing machines.

1.Anti-stick liner, gasket, cloth and conveyor belt; according to different thickness, for a variety of drying machinery conveyor belt, adhesive tape, sealing tape and so on;

2. Welding of plastic products, welding seal with the welding cloth; plastic sheet, film, heat-seal sheeting lining. 3. High electrical insulation: electrical insulation with a base, spacers, gaskets, liner. High-frequency copper-clad board;

4. Heat-resistant coating layer; laminated substrate, insulation wrapped;

5. Microwave gaskets, ovens, food drying;

6.Adhesive tape, transfer printing hot table cloth, carpet adhesive curing belt, rubber vulcanized conveyor belt, abrasive sheet curing release fabric;

7. Pressure-sensitive tape fabric;

8. Construction materials: roofs of various sports venues, pavilions at the station, umbrellas, and landscape canopies;

9. For a variety of anti-corrosion corrosion of petrochemical pipelines, power plant emissions of environmental desulfurization;

10. Flexible compensator, friction material, and grinding wheel;

11 “Antistatic cloth” can be made after special processing;

Teflon high temperature conveyor belt PTFE coating features:

1. For low temperature -196 °C, high temperature between 350 °C, with weather resistance, anti-aging. The practical application, such as continuous placement at 250°C for 200 days, will not only reduce the strength but also reduce the weight; at a high temperature of 350°C for 120 hours, the weight will only decrease by about 0.6%; at -180°C Cracking does not occur at extremely low temperatures and maintains the original softness;

2. Non-adhesive: not easy to adhere to any material. Easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as pastes, resins, and coatings can be easily removed;

3. Chemical resistant, resistant to strong acids, alkalis, aqua regia and various Corrosion of organic solventsC;

4. Low friction coefficient (0.05-0.1) is a good choice for oil-free self-lubricating;

5. Light transmittance of 6 to 13%;

6. With high insulation performance (small dielectric constant: 2.6, tangent below 0.0025), UV protection, anti-static;

7. Good dimensional stability (extension coefficient less than 5 inches), high strength. Has good mechanical properties;

8. Drug resistance, non-toxic. Almost all pharmaceutical products can be tolerated;

9. Fire retardant.




Product Image

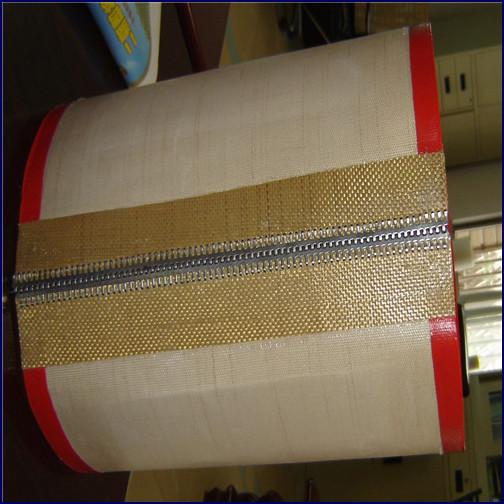

Teflon Conveyor Belt for Microwave Machine 1
Img 1
Teflon Conveyor Belt for Microwave Machine 2
Img 2
Teflon Conveyor Belt for Microwave Machine 3
Img 3
Teflon Conveyor Belt for Microwave Machine 4
Img 4
Teflon Conveyor Belt for Microwave Machine 5
Img 5
