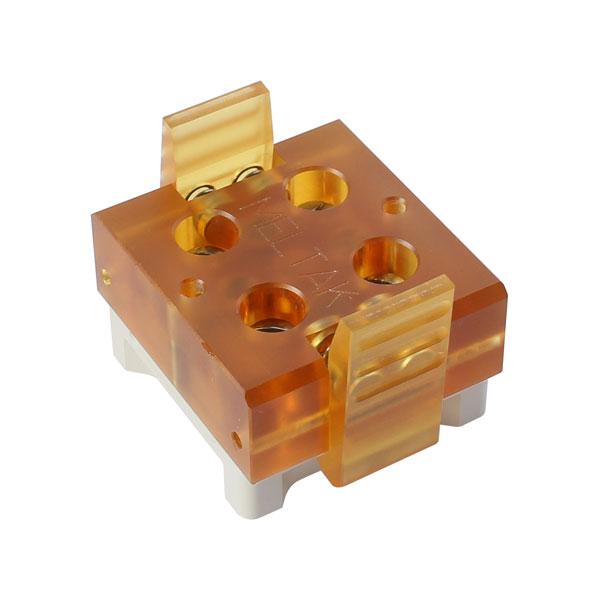

Custom Test Socket
1.Design according to customer requirements
2.Key material: PEI,Peek,Torlon,PPS.etc
3.Package Type: BGA,LGA,QFN,QFP.SOP,PLCC,etc
4.Pitch range:0.30 to 1.27mm
5.Contact with top pogo pin.

Socket Feature:
1.Different structure:open top,clamshell or handler
2.One type: design socket according to customer's PCB.
3.The other type : customer layout PCB according to socket datasheet.
4.Please tell device voltage,current,frequency and temperature and other requirements.

Socket Specification:
Lid&house material:                             AL
Insulation material:                            PPS,PEI,PeeK,Torlon
Contact material:                               POGO pin(spring probe),silicone rubber
Contact length:                                 Min2.5mm,Max7.2mm
Contact rated current:                          Max 6.2A
Contact temperature rating:                     -40 - +120℃
Contact preload:                                0.15mm,0.2mm,0.25mm(optional)
Contact force:                                  Min 6gf, Max 55gf
DC resistace:                                   Min 0.1ohm, Max100mohm
Life span:                                      Min 50k cycles, Max 100k cycles
Contact application pitch:                      Min 0.17mm
Contact material:                               top/bottomplunger: Becu/Au plated
                                                barrel: Pd Alloy, Alloy/Au plated
                                                spring: music wire/Au plated Stainless steel
