Horizontal CNC Machining Center Technical Characteristics:

      Powerful Cutting Capability with Excellent Precision and Performance Makes Drilling and Milling Easy

      High Speed, Super Precision and More Reliable Structure; High rigidity, Super Efficient, High Torque and Heavy Cut Features; Make Full Use of Higher Productivity and Precision Processing;

Horizontal CNC Machining Center  Super-high Processing Efficiency

     HM-500 Horizontal Machining Center features in high rigidity, stable performance and high performance-cost ratio, which is the optimal choice for sourcing horizontal machining center

.

    Horizontal CNC Machining Center  T-type Base Structure, High-rigidity and Slide Way Support, Gantry Column, High Rigidity Saddle Base, Strong Spindle Support

   X/Y/Z Feeding Drive System: High-torque Servo Motor Directly Connected with Φ50 Ball Screw by Coupling; Both Ends of Ball Screw are Fixed and Pre-stretched. High Transmission Rigidity Structure Ensure the Positioning Precision.

     Spindle Transmission System: Servo Motor Direct Transmission to High-precision Spindle; Higher Transmission Efficiency, Lower Noise and Vibration; ContinuousOutput Power for Higher Processing Efficiency; Specially-designed Spindle from Taiwan

      Anti-collision Design to Prevent Nut Base, Motor Base and Bearing Base from Colliding with Each Other for Protect the Machine Precision

     One-piece Oil-water Separation System Ensures that Polluted Lubricant and Coolant Flow Back Separately, and prevent the coolant from being polluted

     Newly-designed and Fully-sealed Cover: Safe and Convenient

Horizontal CNC Machining Center Core Components

CNC Control System from Mitsubishu, Fanuc or Siemens

Spindle and 3 Axis Motor: Mitsubishu, Fanuc or Siemens

​ Spindle: Taiwan

​ Tool Magzine: Taiwan 24T Arm Type or 32 Chain Type

Bearing: Japan NSK

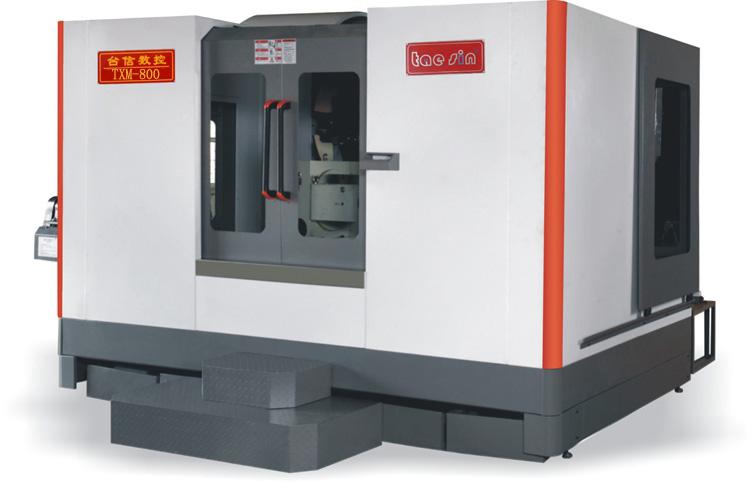

TXM-800 Horizontal CNC Machining Center:
