Metal push-pull self-locking connector Compatible EEG Female socket

Model:EEG Female
Brand:szmedplus
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Terminal
Label:Metal connector , Lemo connector , Electrical Connector
Price: US $13 / pc
Min. Order:10 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Mai pin Electronic Technology Co., Ltd.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:27 Oct, 2020

Product Description

Materials:

  1. Outer shell: Brass in chrome plating;
  2. Earthing crown: Brass in nickel plating;
  3. Retaining ring: Brass in nickel plating;
  4. Hexagonal nut: Brass in nickel plating;
  5. Locking washer: Stainless steel;
  6. Insulator: PPS(Phenylenesulfide);
  7. Female contact collet: Brass in gold plating;

Industry Application:

Medical connector: Analyzers, Processing Equipment, Dental Equipment, Electrosurgical Devices, Pacemakers and Hearing Devices;

Audio-video connector: HDTV/Media Converter, Remote Cam / Motion Pict Cam(Indoors/outdoors), Analog Audio/Video, Digital Audio, Lighting - Indoors/outdoors;

Test & Measurement connector: GPS (portable or vehicle mounted), High Voltage Experiments, Meters, Sources, Analyzers, Weather Sensors, Quality Inspections;

Information system connector: Authentication Devices, Computers (outdoors), Input Devices, Printers/Copiers,

Automotive connector: Cars/Trucks (inside), Crash Dummies, Engine Compartments, Emergency Vehicles,

Research connector: Robots, Sub-Atomic Research, Physics Research, Laboratories;

Aerospace connector: Airplanes/Helicopters, Baggage Screeners;

Communication connector: Antennas - Indoors/outdoors, Headsets/IBFs (Reporters), Remote Control, RF/uWave,

System control connector: Security/Surveillance – Indoors, outdoors.

Features:

·       Straight male plug with nut for bend relief..

·       Push-pull self-latching system for mating and unmating easily.

·       Multi-contact types 2 to 26 contacts.

·       Solder pins for cable.

·       Keying system ("G"key standard) for connector alignment.

·       Multiple key options to avoid cross mating of similar connectors.

·       High packing density for space savings.

·       360° screening for full EMC shielding.

Technical characteristics:

Mechanical and Climatically;

1. Endurance: > 5000 mating cycles;

2. Humidity : up to 95% at 60 degree;

3. Temperature range: -45 , +125 ;

4. .Resistance to vibration : 15 g[10 HZ-2000HZ];

5. Shock resistance: 100 g ,6 MS;

6. Salt spray corrosion test : > 48h;

7. Protection index (mated) : IP50.


Price Terms:EX-factory price
Payment Terms:100%TT
Packing:Blister package
Lead Time:one week

Product Image

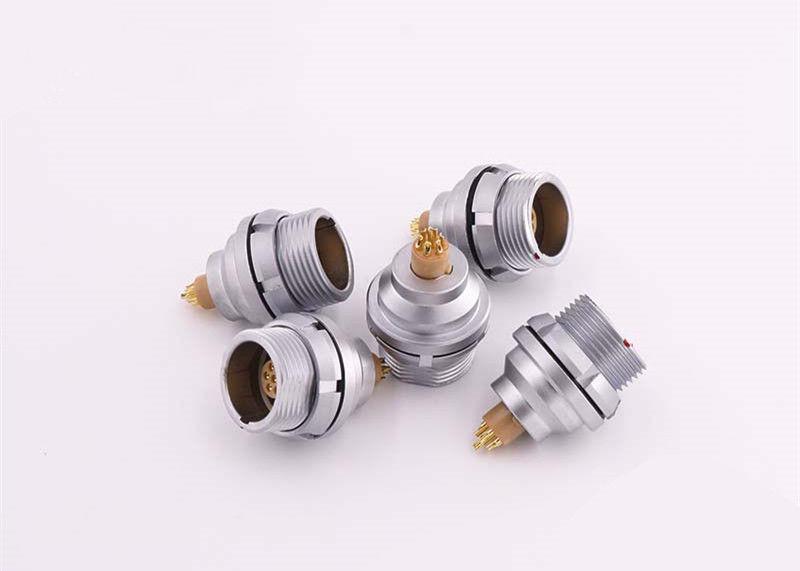

Metal push-pull self-locking connector Compatible EEG Female socket 1
Img 1

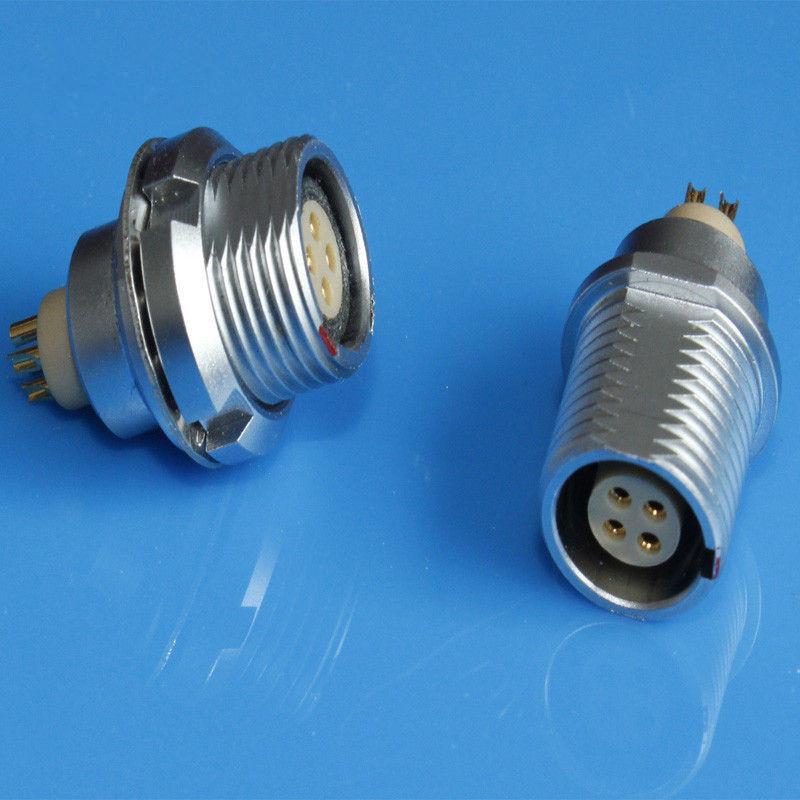

Metal push-pull self-locking connector Compatible EEG Female socket 2
Img 2
Metal push-pull self-locking connector Compatible EEG Female socket 3
Img 3
Metal push-pull self-locking connector Compatible EEG Female socket 4
Img 4
Metal push-pull self-locking connector Compatible EEG Female socket 5
Img 5
