Product Description

CAR FANS C800 is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle. Some of the functions are based on the advanced technology accumulated by the R & D team for many years, and are superior to other similar diagnostic products in the industry. The main diagnostic functions include reading the version information, reading/clearing the fault code, actual values, actuators, advanced function (special function, matching settings, functional test, diesel calibration) and so on.

CAR FANS C800 Diesel & Gasoline Vehicle Diagnostic Scan Tool for Commercial Vehicle, Passenger Car, Machinery with Special Function Calibration

Car Fans C800 Feature:

★Wide Vehicle Coverage: CAR FANS C800 support 35 Heavy duty brand, 21 BUS Brand, 16 Passenger car Brand, 32 Machinary vehicle brand and 46 ECU System, almost cover all brand heavy duty vehicles in market
★Powerful function of software: C800 is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle. Some of the functions are based on the advanced technology accumulated by the R & D team for many years. The main diagnostic functions include reading the version information, reading/clearing the fault code, actual values, actuators, advanced function
★Fashionable design of hardware: 7 inch 800 x 480 touch screen, super light main unit, is easy to hold and operate. ARM9 CPU with 4GB memory, the software operation is faster than similar tools
★Advance Functions: Adjustment/Settings、Function Test、Special function, calibration.
★Online Updating: Log in the official website (www.carfans.net.cn) download and install the C800 intelligent diagnostic device upgrade client software, the device SD card through the card reader plug in the computer USB interface to complete the device software upgrade.

Car Fans C800 Heavy Duty Scanner Vehicle List:

Commercial Vehicle: FAW,DONGFENG,Mercedes-Benz,CNHTC, FOTON, SANY, JAC, SFH, CAMC,UD, VOLVO, Mitsubishi, IVECO, MAN, SCANIA, JMC, HINO, ISUZU, SHACMAN, C&C, Hyundai,XCMG, BEIBEN, KIA, KING LONG, YUTONG, HIGER, GOLDEN DRAGON, YOUNGMAN, BYD, ANKAI,DAEWOO, SUNWIN, ZHONGTONG,
HUANGHAI, WZL, SUNLONG, TOYOTA, ASIASTAR


Passenger Car: Mercedes-Benz, Hyundai, VW, Zhonghua, JMC, GreatWall, ZZNISSAN,JAC, ZXAUTO, DONGFENG, LIEBAO, CHERY, FUDI, GONOW, HUATAI, SSANGY, MAXUS, JX-ISUZU


Machinery: CAT, KOMATSU, VOLVO, SANY, LOVOL, JOHN DEERE, HITACHI, KOBELCO, HYUNDAI,ZOOMLION, CASE, LISHIDE, DOOSAN, SUMITOMO, YUTONG, Bobcat, SHANTUI, LiuGong, IHISCE,XCMG, KUBOTA, Takeuchi, XGMA, Atlas, TEREX, YUCHAI, LONKING, SUNWARD, SEM, Jonyang,PENGPU, YTO, JAC, XINYUAN, DXZG, HENGTE, SANYUAN, HUANGHE, SHUNTONG, STRONG


Engine&ECU: Bosch, Denso, Delphi, Perkins, Deutz, Weichai, Yuchai, Fawde, Cummins,Yunnei, Changchai, SDEC, DCD, Yangchai, Quanchai, EUP, JX-Isuzu, XCE, Kernel, SIDA

Car Fans C800 Function List:

Identification
Read Fault code
Erase Fault code
Actual Values
Actuators
Advance Functions: Adjustment/Settings, Function Test, Special function, calibration etc.

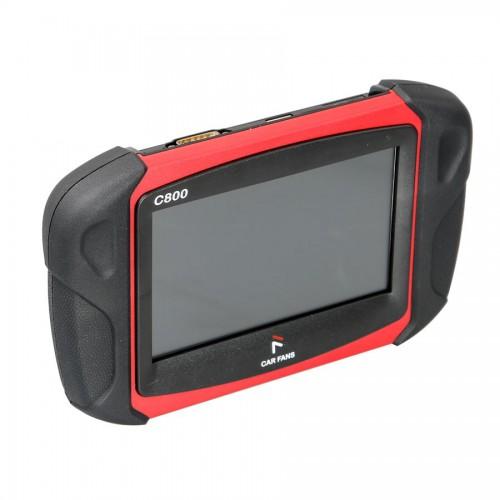

CAR FANS C800 Main Unit:

① Touch Screen：Display the operation buttons, test results and help information.
② Rubber sleeve: easy to hand, protect the product, to prevent loosening and wear.
③ Power Indicator
④SD card port
⑤USB port：Used to connect the printer for printing. diagnostic connectors to connect the car.
⑥ Network connection port: Reserved.
⑦Diagnostic port: provides power, uses diagnostic lines and
⑧Power socket: power supply, connection with the car or the vehicle diagnostic port without power supply.

Notice:
When the power is supplied through the diagnostic port, it is not necessary to connect the power supply through the main power port. When the vehicle diagnosis block itself is not powered, it can be connected to the power source through the power supply port.
The SD card stores the operating system, application software, and data files of the device. (Unless the software upgrade, do not to remove the SD card).

CAN FANS C800 Software Update:

C800 use PC software to upgrade, log in the official website (www.carfans.net.cn) download and install the C800 intelligent diagnostic device upgrade
client software, the device SD card through the card reader plug in the computer USB interface to complete the device software upgrade.Detailed upgrade
steps, please log in the official website (www.carfans.net.cn) view the product upgrade process.

CAN FANS C800 Heavy Duty Diagnostic Tool Technical Parameters:

CPU:                                        ARM9
SD Card:                                4G,Maximum Support 32GB
Communication port:          OBD,USB
Input voltage:                        7-32V
Power:                                   <10W
Screen:                                  7 inch 800x480 touch screen
Operating temperature:      -10~45°C
Storage temperature:          -15~50°C
Operation method:               Touch

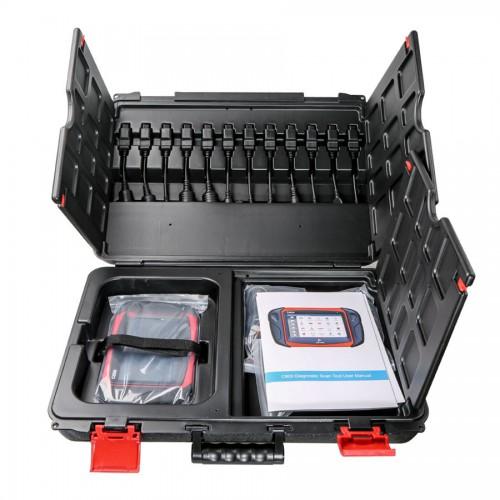

CAR FANS C800 Packing List:
