Product Description

With features of the horizontal omni directivity and the vertical specific angle directivity, broadband cylindrical transducer is used in acoustic calibration sound source, acoustic long-distance communication system, underwater acoustic simulator, receiving hydrophone and so on. With the good stability, broadband cylindrical transducer’s working frequency band covers from 5kHz to 100kHz, and its pressure depth reaches to 300 meters.



Broadband cylindrical transducer

Characteristics

WBT-10

WBT-15

WBT-30

WBT-45

WBT-60

WBT-75

Resonance frequency (kHz)

10.0

15.0

30.0

45.0

60.0

75.0

Working frequency range (kHz)

617

10~20

20~40

30~60

40~80

50~100

Impedance@Fr (Ohms)

1000

850.0

1100.0

1300.0

800.0

1200.0

Capacitance (nF)

105

58.0

20.0

15.0

13.0

10.0

Beam angle @Fr
(-3dB,degrees)

45

30.0

50.0

35.0

30.0

25.0

Height (mm)

200

111.0

65.0

55.0

51.0

47.0

Diameter (mm)

140

81.0

42.0

32.0

26.0

23.4

Transmitting voltage response (dB)

140

142.0

142.0

140.0

143.0

140.0


Product Image

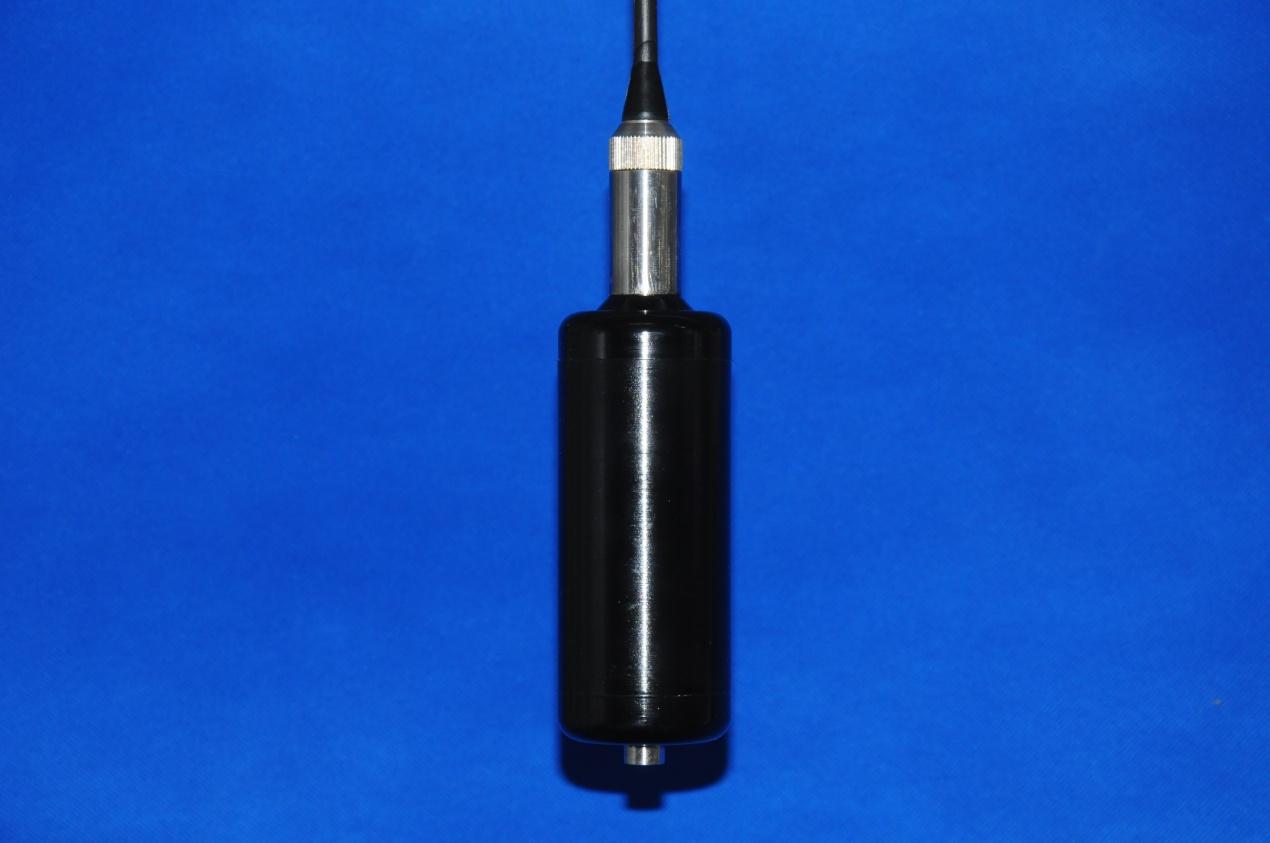

Broadband cylindrical transducer 1
Img 1

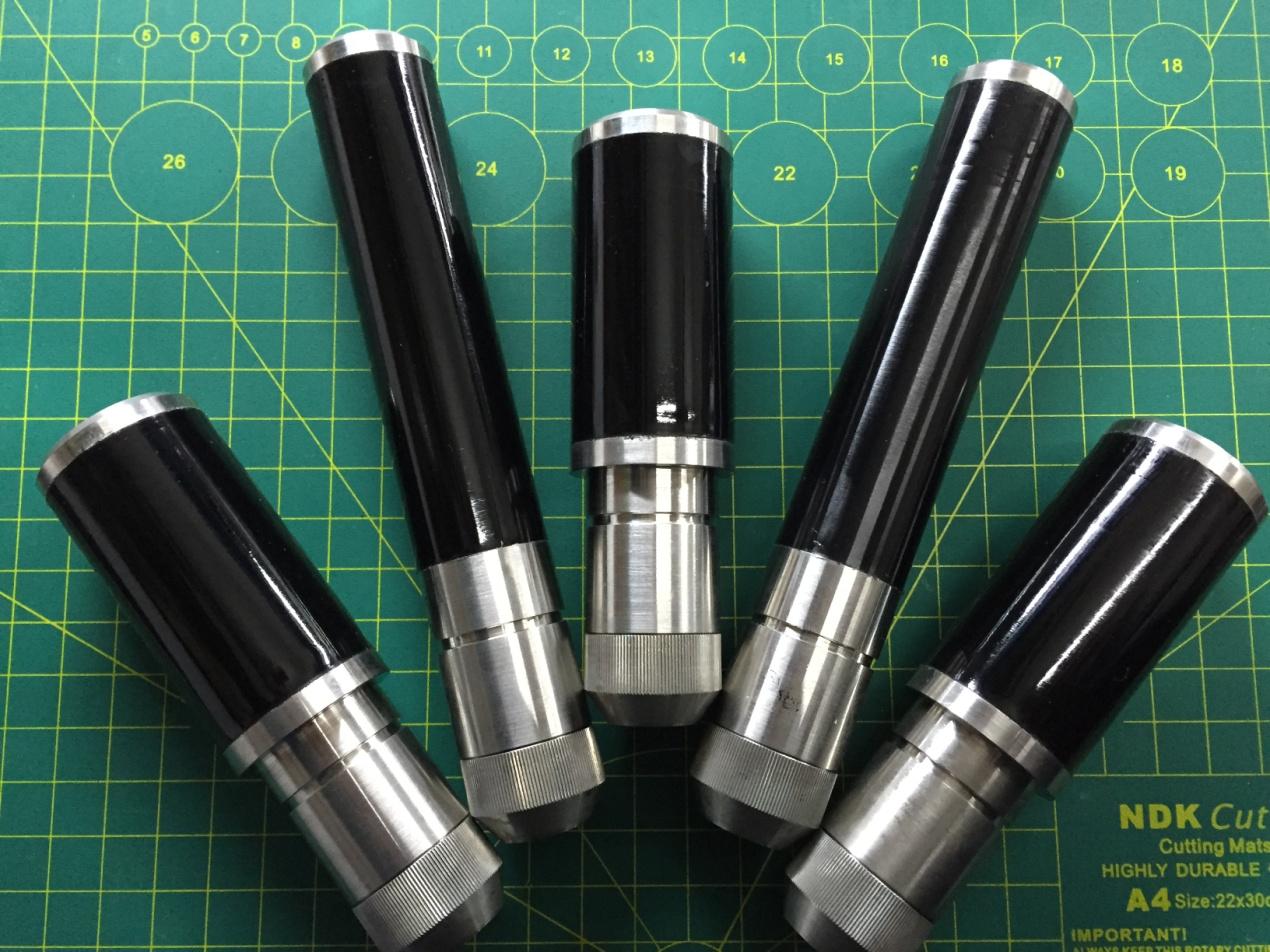

Broadband cylindrical transducer 2
Img 2
Broadband cylindrical transducer 3
Img 3
