| Model: | HT40M |
|---|---|
| Brand: | DUROCK/OEM |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computers / PDA |
| Label: | R ed Handheld PDA , Android PDA , Mobile Computer |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 May, 2018 |

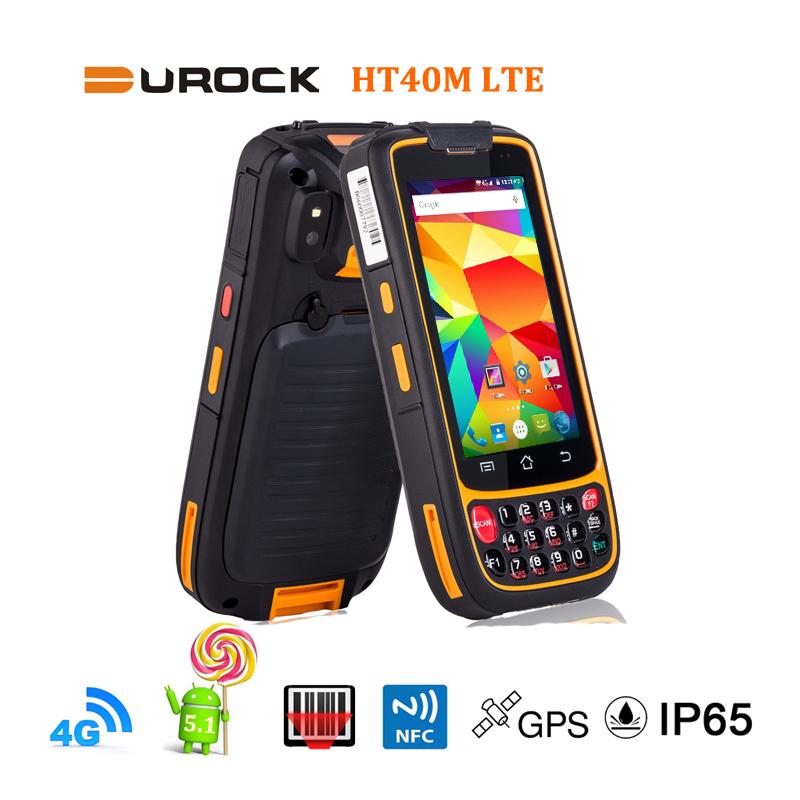

R ed Handhelds IP65 MTK6737 Quad Core 4G LTE R ed Handsets with 1D 2D Barcode Scanner NFC RFID
Main Features
Product Description
|
SPECIFICATIONS |
|||||
|
PHYSICAL CHARACTERISTICS |
|||||
|
Dimension |
158mm(H)x75mm(W)x28mm(D)±2 mm |
||||
|
Weight |
Net Weight :300g (including battery&wrist strap) |
||||
|
Display |
4.0 in. TFT-LCD(WVGA 480x800)touch screen with backlight |
||||
|
Backlight |
LED backlight |
||||
|
Keypads |
3 TP keys, 17 function keys, 4 side buttons |
||||
|
Expansions |
2 PSAM, 1 SIM, 1 TF |
||||
|
Battery |
Rechargeable li-ion polymer, 3.7V, 5200mAh |
||||
|
PERFORMANCE CHARACTERSTICS |
|||||
|
CPU |
MTK6735 Cortex A53 1.3GHz dual-core |
||||
|
Operating System |
Android 7.0 |
||||
|
Storage |
2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) |
||||
|
USER ENVIRONMENT |
|||||
|
Operating Temp. |
-20℃ to 50℃ |
||||
|
Storage Temp. |
-20℃ to 70℃ |
||||
|
Humidity |
5%RH to 95%RH(non-condensing) |
||||
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
||||
|
Sealing |
IP65, IEC compliance |
||||
|
ESD |
±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge |
||||
|
DEVELOPMENT ENVIRONMENT |
|||||
|
SDK |
Software Development Kit |
||||
|
Language |
Java |
||||
|
Environment |
Android Studio or Eclipse |
||||
|
DATA COMMUNICATION |
|||||
|
WWAN |
WCDMA(850/1900/2100MHz), GSM/GPRS/Edge 850/900/1800/1900MHz) |
||||
|
WLAN |
IEEE 802.11 b/g/n |
||||
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
||||
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
||||
|
DATA CAPTUER |
|||||
|
BARCODE READER(OPTIONAL) |
|||||
|
1D barcode |
1D laser engine |
Honeywell N431x |
|||
|
Symbologies |
All major 1D barcodes |
||||
|
2D barcode |
2D CMOS Imager |
Honeywell N6603 |
|||
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
||||
|
COLOR CAMERA |
|||||
|
Resolution |
8.0 megapixel |
||||
|
Lens |
Auto-focus with LED flash |
||||
|
RFID READER(OPTIONAL) |
|||||
|
RFID LF |
Frequency |
125KHz/134.2KHz(FDX-B/HDX) |
|||
|
Protocol |
ISO 11784&11785 |
||||
|
R/W Range |
2cm to 10 cm |
||||
|
RFID HF |
Frequency |
13.56MHz |
|||
|
Protocol |
ISO 14443A&15693 |
||||
|
R/W Range |
2cm to 8cm |
||||
|
ZigBee READER(OPTIONAL) |
|||||
|
Protocol |
IEEE 802.15.4 |
||||
|
Reading Range |
100 m to 200 m |
||||
|
PSAM SECURITY(OPTIONAL) |
|||||
|
Protocol |
ISO 7816 |
||||
|
Baudrate |
9600, 19200, 38400,43000, 56000, 57600, 115200 |
||||
|
Slot |
2 slots(maximum) |
||||
|
ACCESSORIES |
|||||
|
Standard |
1xPower Supply 1xLithium Polymer Battery 1xDC charging cable 1xUSB data cable |
||||
|
Optional |

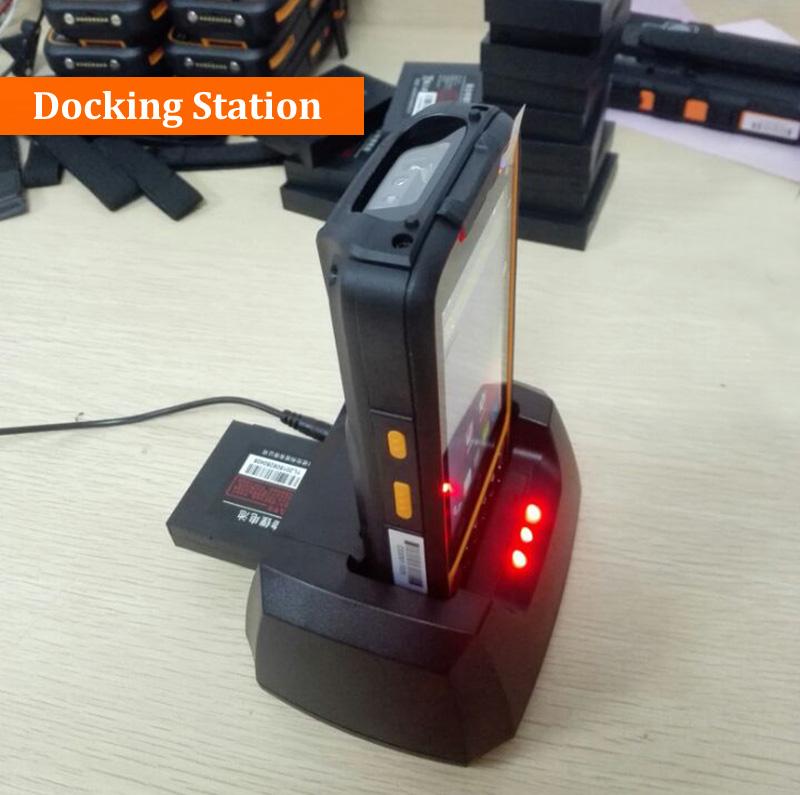

Magnetic charging cable Carry Case Charging Cradle |
||||
| Payment Terms: | T/T, Paypal, Western Union |
|---|---|
