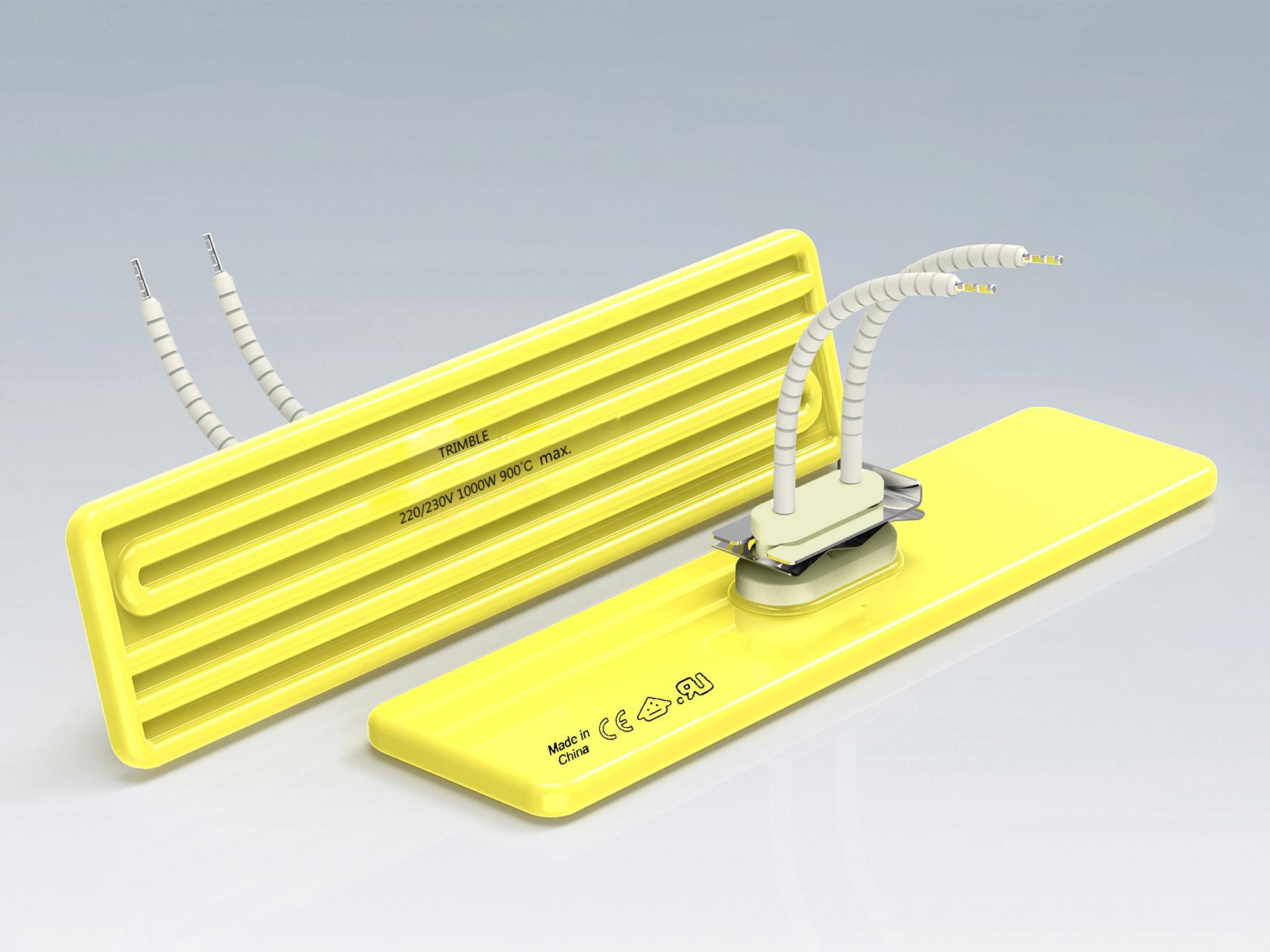

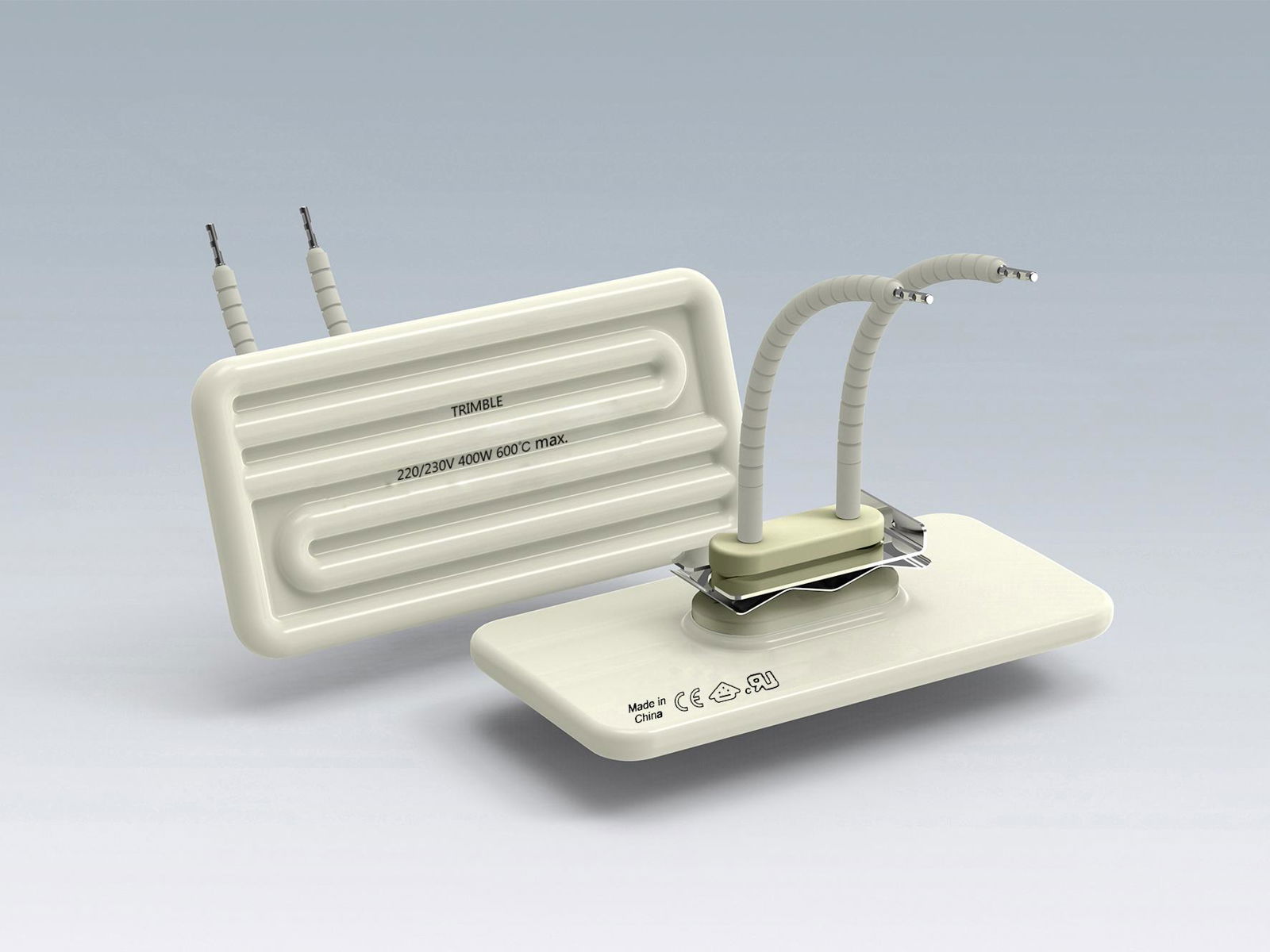

Standard size: 240 * 60 (60 * 60, 120*60，240 * 60，245*95)

Color: white, black, yellow

Power: 100 w to 1000 w

Thermocouple types: K, J

Nickel chrome aluminum wire

Heater standard voltage of 220 v / 230 v (other voltage can be customized according to requirements)

Heater wavelength range: 2 to 10 microns

According to the different operating conditions, the average life expectancy of operation for 3 years

S est heater radiation distance is 100 mm to 100 mm

With 120 mm ceramic bead wire

Jiangsu tianbao ceramic heating plate use items

1. The installation of radiator plate thickness shall not be more than 1.5 mm

2. Because of thermal expansion, distance between radiator and radiator should not be less than 3 mm

(3) for high power radiator surface power density (more than 36 kw/M2) to thermocouple with built-in control, surface temperature cannot exceed the scope of temperature

4. Radiation heating plate of thermocouple have positive and negative, are on red an extension wire must use special thermocouple, cannot be replaced with ordinary copper and aluminum wire

5. In the following use infrared heater, may affect the service life of the radiator chemical pollution (chlorine, fluorine, caustic soda, hydrofluoric acid, nitrogen, peroxide) high mechanical strength pressure. The high temperature, voltage (surge)

6. Edison thread radiator must be installed on the ceramic or lined with ceramic and metal

7. Quartz radiator installation to ensure that the level s ested by the radiator heating uniformity and longevity

8. In practice, please pay attention to abide by the relevant state regulations, safety rules, such as: IEC 60159-1 or EN standards
