| Model: | TF-SPRM |
|---|---|
| Brand: | Taifeng |
| Origin: | Made In China |
| Category: | Industrial Supplies / Paper Machinery |
| Label: | Small roll machine , toiletrollequipment , toiletpapermachine |
| Price: |
US $30000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:28 Mar, 2018 |

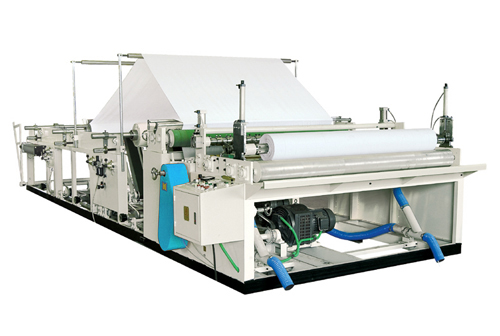

Small paper rewinder refers to cut the jumbo roll paper cutting into large rolls of toilet paper, mainly used for hotels, airports and other large public toilets.
Main features：
1. Gassing axis used to make paper tube is accurate, simple

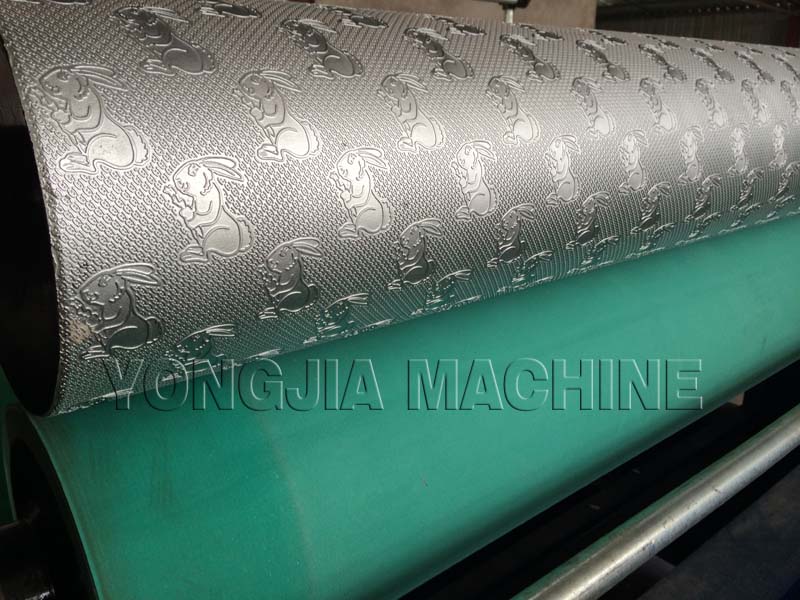

2. Embossing system: using steel to steel blank holder, independent gas steel adjustment, convenient adjustment, each layer of paper stratification;
3. Horizontal type unwinder, paper is pneumatically loaded on machine, save manualhandling
4. paper is pneumatically loaded on machine by wide leather，Each roll of jumbo paper are independent tension adjusting device
5. Adopts inching switch before and after drawing the jumbo roll paper, simple and safe operation.
Technical parameters
|
Model |
1575 1760 2200 2500 2800 |
|
The width of jumbo rollpaper mm |
1750 2000 2150 2400 2700 |
|
The diameter of jumbo roll paper mm |
Standard Φ1100mm，please specify the other sizes |
|
Rewinding diameter mm |
400mm （90-300） |
|
Roll quantity |
3a（can specify） |
|
paper core diameter mm |
3”（76.2mm）（please specify the other sizes） |
|
Production Speed m/min
|
180-200M/MIN |
|
pneumatic system |
3 air compressor，minimum pressure5kg/cm2pa（customer owned） |
|
installed power |
4.5KW 380V,50HZ |
|
Embossing system |
Steel to steel |
|
Dimension |
6.2x2.6x1.8 (L x W x Ht);(m) |
|
Machinery weight |
2.5T |
