| Model: | VC390 |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Optical Lens & Instrument |
| Label: | vipfixphone , microscope , magnifying |
| Price: |
US $179.99
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:14 Mar, 2018 |

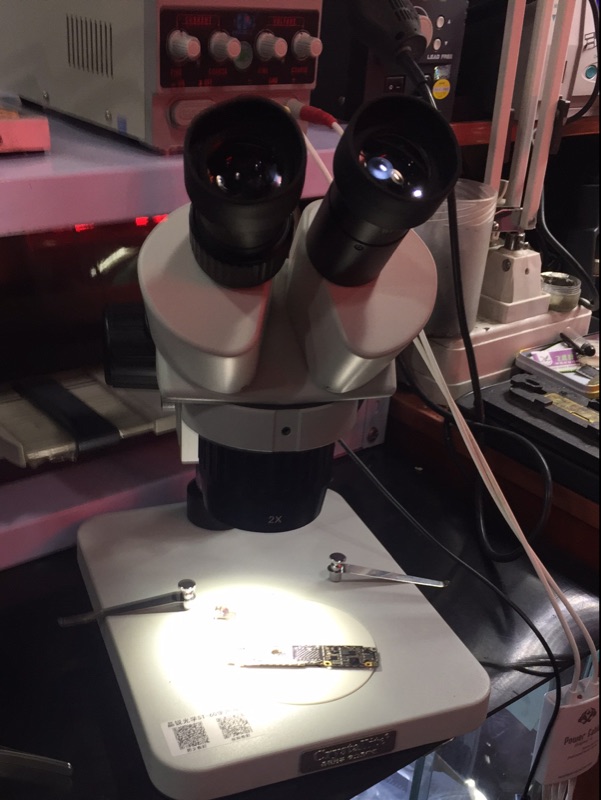

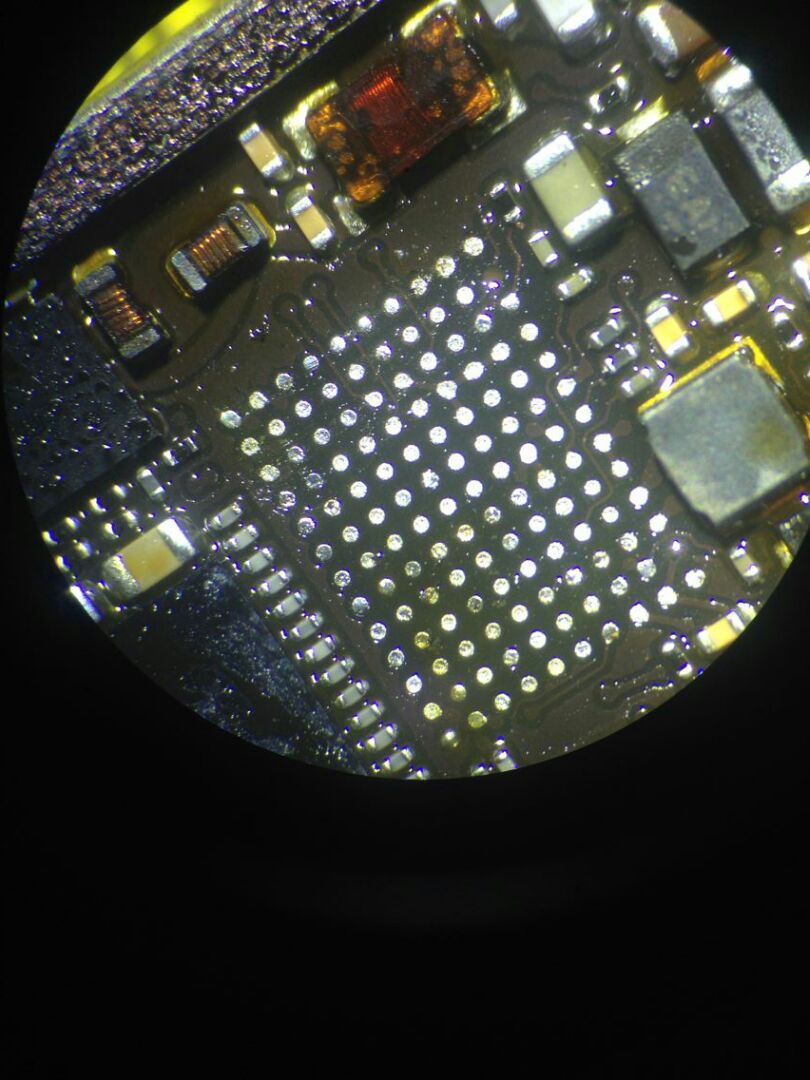

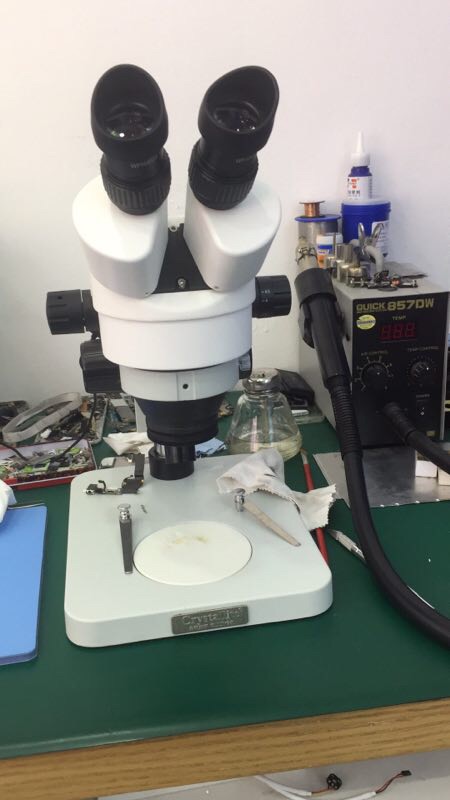

7-45X/90X/180X Stereo Zoom Microscope is high resolution instrument for mobile phone motherboard repair,the professional microscope with Dual Halogen lights can offer super clear images of mobile phone motherboard circuit to get more convenient operation when repairing smartphones.This digital microscope will offer perfect inspection for your phone repair.
7-45X/90X/180X Stereo Zoom Microscope for Phone motherboard Inspection Tool
Optional Magnification:
Option 1: 7-180X, with LED light + Light Control adapter + dust cover + Heat-resistant base + protection glass
Option 2: 7-90X, with LED light + Light Control adapter + dust cover + Heat-resistant base + protection glass
Option 3: 7-45X, with LED light + Light Control adapter + dust cover + Heat-resistant base + protection glass
Feature:
| 7X-180X Continuous Zoom Magnification Range For phone repair | |
|
Zoom Ratio |
6.4:1 |
|
Interpupillar Distance |
55-75mm |
|
Eyepiece tube |
Binocular & Trinocular Head Angle of viewing, inclined 45° |
|
Main body |
Column type |
|
Working distance |
100mm |
|
Eyepiece |
WF10X/22mm High Point Wide Field Eyepiece |
|
Objective |
0.7x-4.5x |
|
Magnification |
7x-45x |
|
Optional accessory: |
1. Eyepiece: WF15X, WF20X |
|
2. Auxiliary objectives: 0.5X, 1.5X, 2X |
|
|
3. Illumination system: 8W fluroscenent, 220V/110V |
|
Optical Data:
|
Eyepiece |
Standard Specifications |
Auxiliary 0.5X |
Auxiliary 1.5X |
Auxiliary 2X |
||||
|
Working Distance:100mm |
Working Distance:165mm |
Working Distance:45mm |
Working Distance:30mm |
|||||
|
Magnification |
Viewing Field |
Magnification |
Viewing Field |
Magnification |
Viewing Field |
Magnification |
Viewing Field |
|
|
WF10X/20 |
7.0X |
28.6mm |
3.5X |
57.1mm |
10.5X |
19mm |
14X |
14.3mm |
|
45X |
4.4mm |
22.5X |
8.9mm |
67.5X |
3mm |
90X |
2.2mm |
|
|
WF15X/15 |
10.5X |
21.1mm |
5.25X |
42.8mm |
15.75X |
14.3mm |
21X |
10.7mm |
|
67.5X |
3.3mm |
33.75X |
6.7mm |
101.25X |
2.2mm |
135X |
1.7mm |
|
|
WF20X/10 |
14.0X |
14.3mm |
7.0X |
28.6mm |
21.0X |
9.5mm |
28X |
7.1mm |
|
90.0X |
2.2mm |
45.0X |
4.4mm |
135.0X |
1.5mm |
180X |
1.1mm |
|
