| Model: | NC-002 |
|---|---|
| Brand: | North Coffee |
| Origin: | Made In China |
| Category: | Industrial Supplies / Food, Beverage & Cereal Machine |
| Label: | - |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:27 Mar, 2018 |

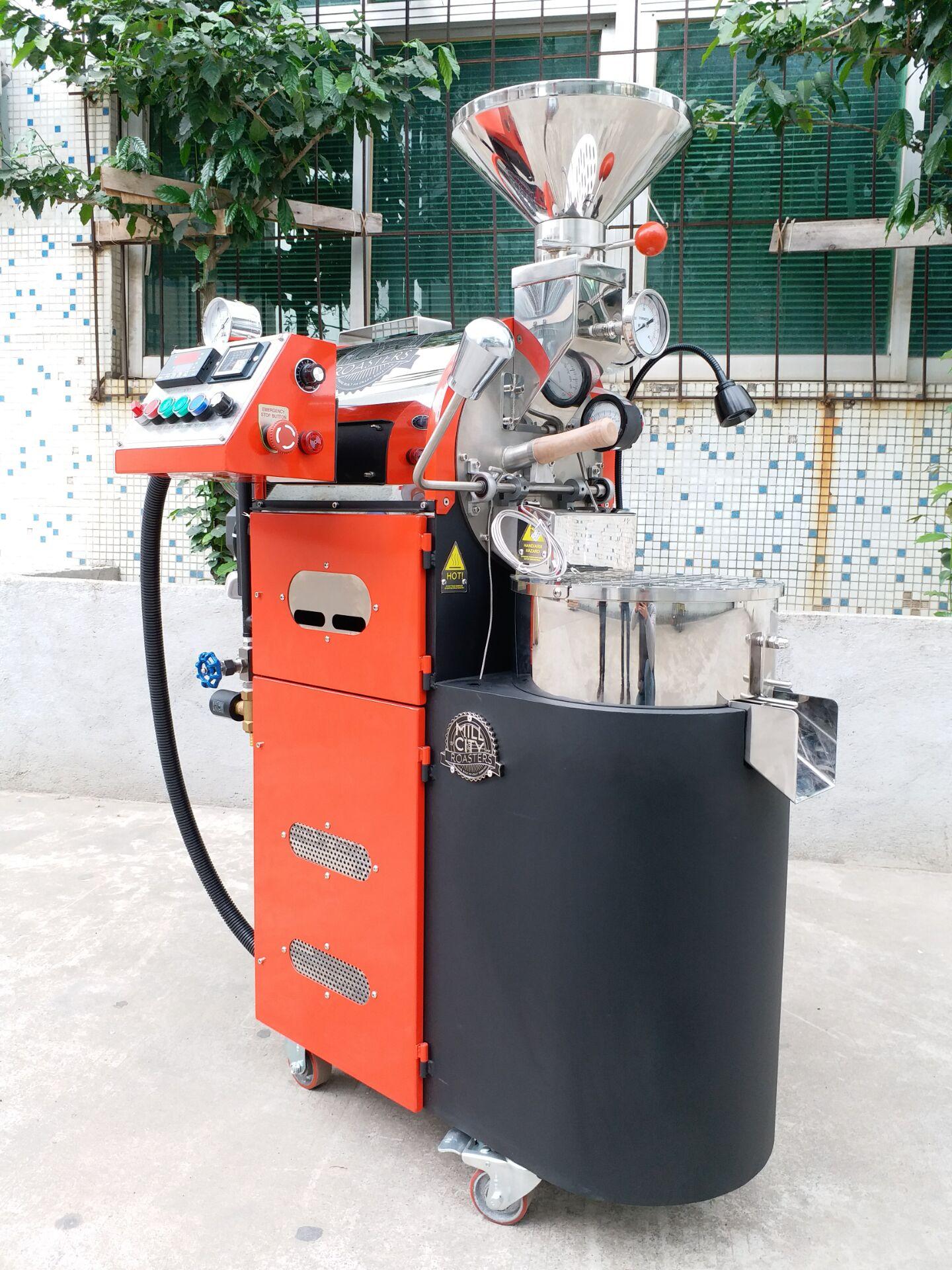

| NC-002 2kg Gas Coffee Roaster Parameters | |
| Roaster Dimensions: | 33.9×27.6×39 in (860×700×1000mm) |
| Roaster Weight: | 220.5lb (100kg) |
| Chaff Collector Dimension： | 30.7×13.4×17.7 in（78×34×45mm） |
| Chaff Collector Weight： | 44.1lb (20kg) |
| Net/Gross Weight: | 264.6/352.8lb (218/270kg) |
| Crate Dimension(One Crate): | 47.2×43.3×45.3lb (1200×1100×1150mm) |
| Drum Thickness: | 0.2 in (4mm) |
| Drum Diameter/Length: | 8.6/10.6 in (218/270 mm) |
| Drum Construction: | 430 stainless steel, welded |
| Cooling Tray Diameter: | 12.4 in (315mm) |
| Cooling Tray Stirring Arm Length: | 5.1 in (130mm) |
| Average Roasting Time: | 15 minutes batch |
| Production: | 17.6lb/hr,141.1lb/day (8kg/h, 64kg/day) |
| Roaster Voltage/Frequency: | Single phase 220v,15 amp service 50-60Hz |
| Step-up Transformer: | 120v to 220v, 1000 watt |
| Drum Motor | 45w |
| Exhaust Fan Motor: | 50w |
| Exhaust Fan Max. Airflow: | 70m³/h |
| Cooling Fan Motor: | 50w |
| Cooling Tray Stirring Motor: | 15w |
| Heating Mode: | Natural Gas or Propane |
| Max. BTU: | 30,000 |
| Burner Control: | Ball Valve |
| Gas Connection: | 3/8'' NPT |
| Typ. Chaff Collector Exhaust Temp: | 300F(during normal use) |
| Recommended Temp Controller Limit: | 455F (about 30 seconds into rolling second crack) |
| Max. Gas Usage | 1.1lb/hr (0.5kg/h) |
| USB Logging Interface: | Phidget 1048 |
| Logging Thermocouples: | BT,ET, incoming air |
