HP0420L4F 48V/7A Li-ionCharger for lawn mower with UL, cUL,CE-OK,PSE 1HP0420L4F 48V/7A Li-ionCharger for lawn mower with UL, cUL,CE-OK,PSE 2
  • HP0420L4F 48V/7A Li-ionCharger for lawn mower with UL, cUL,CE-OK,PSE 1
  • HP0420L4F 48V/7A Li-ionCharger for lawn mower with UL, cUL,CE-OK,PSE 2

HP0420L4F 48V/7A Li-ionCharger for lawn mower with UL, cUL,CE-OK,PSE

Model:HP0420L4F 48V7A
Brand:ELITE
Origin:Made In China
Category:Electronics & Electricity / Battery, Storage Battery & Charger
Label:Golf Cars Stealth , Tamland onewheel , lawn mower charger
Price: -
Min. Order:50 pc
Inquire Now Add to Basket

Member Information

Detail

Elite Electronics Co Limited

Biz MemberGuang Dong - China
Live Chat:点击这里给我发消息Last Online:21 Oct, 2020

Product Description

 Model: HP0420L4 48V/7A Lithium Battery Charger for ebike & power wheelchair & e-scooter

 Input Voltage: AC 100Vac~240Vac, 50/60Hz

 No Load Output Voltage: 54.6V±0.3V

 Output current: 7A±0.5A

 Full charge current: 0.4A±0.3A

 LED:  Power On: Green

           Charging: Red

           Charged: Green

Over Current protection: Have

Over voltage protection:Have

Timer in CCfastcharging:15H, stop charging.

Timer Protection for Pre-charge: 2H, stop charging if no fast charging.

Protection against Short circuit: Stop charging, RED LED blinks

Reverse polarity protection: Stop charging.

Feedback Protection: Stop charging.

Operating temperature: -10℃~40℃

Storage temperature: -20℃~80℃

Operating  Humidity:20%-85%RH

Operating Height: 2000M

Dimensions: 240mm(L)*160mm(W)*80mm(H)

Weight: 2.1kg

Colour/Case Material: Black PC

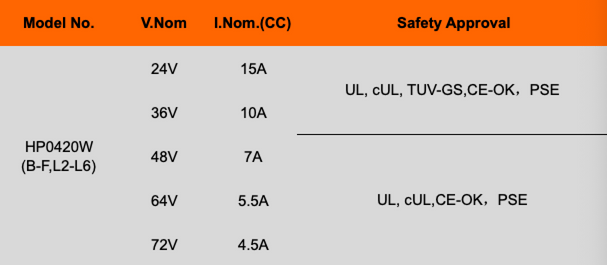

Series available:    HP0420L2F    24V   Imax:15A

                              HP0420L3F    36V   Imax:10A

                              HP0420L4F     48V   Imax:7A

                              HP0420L5F     64V   Imax:5.5A

                              HP0420L6F     72V   Imax:4.5A

RoHS compliant


Payment Terms:TT
Packing:Bulk Packing
Standards Certificate:UL, cUL,CE-OK,PSE

Product Image

HP0420L4F 48V/7A Li-ionCharger for lawn mower with UL, cUL,CE-OK,PSE 1
Img 1
HP0420L4F 48V/7A Li-ionCharger for lawn mower with UL, cUL,CE-OK,PSE 2
Img 2
