CK6130 Economical CNC lathe 1
  • CK6130 Economical CNC lathe 1

CK6130 Economical CNC lathe

Model:CK6130
Brand:-
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:CNC , LATHE MACHNE , MACHINE
Price: -
Min. Order:1 pc
Inquire Now

Member Information

Detail

zeqing machinery(jiangsu) co., ltd

Free MemberJiang Su - China
Last Online:14 Jun, 2018

View all products. (20)

Product Description

Items

Specifications

Max.swing over bed

Φ360mm

Max.swing over carriage

Φ150mm

Max.length of work piece

450mm

Range of spindle speeds

150-2500rpm

Spindle bore

Φ40mm

Taper of spindle bore

MT5

Stations of tool carrier

4/6 or gang-type tool carrier

Max.size of tool post

20x20mm

Min.setting unit of motor

0.001mm

(Servo/stepper)

0.001mm

Moving speed of post

7.6m/min

(Servo/stepper)

4m/min

Taper of tailstock quill

MT3

Max.range of tailstock quill

100mm

Motor power

3.7KW

Packing size（mm)

1820x1200x1820mm

Net and gross weight

1000kg/1200kg

Packing size

Based on the styles

Payment Terms:TT/LC

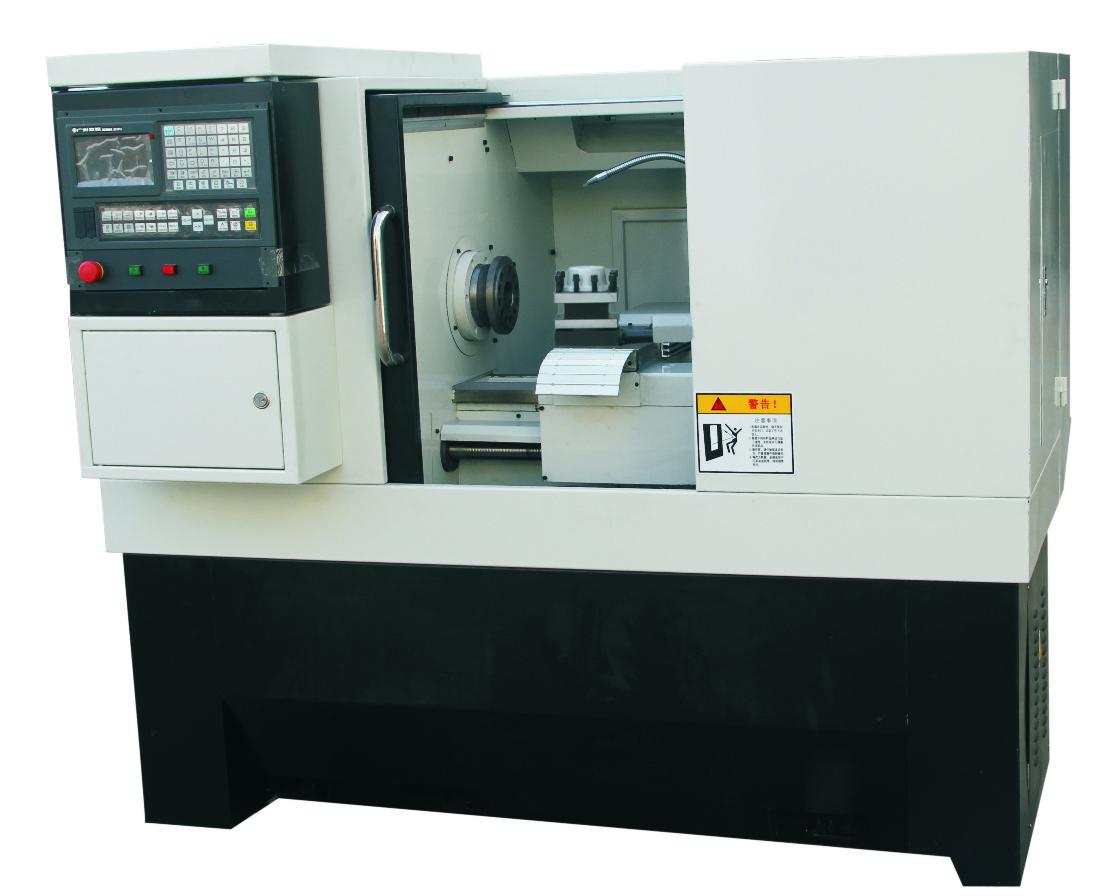

Product Image

CK6130 Economical CNC lathe 1
Img 1
