high quality HDI PCB board

Model:-
Brand:XFHD
Origin:-
Category:Electronics & Electricity / Electronic Components / Circuit Board
Label:HDI , manufacturer , professional
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Xinfuhengda Technology Co., LTD

Free MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:02 Nov, 2018

Product Description

Overview

Quick Details

Place of Origin:GuangDong, China (Mainland)

Brand Name:XFHD

Model Number:HDI PCB board

Base Material: Aluminium, FR1, FR4, CEM3, Alu, etc

Copper Thickness:0.5 OZ to 2 OZ

Board Thickness:0.2mm ~ 3.2mm

Min. Hole Diameter:0.1mm

Min. Line Width:0.1mm

Min. Line Spacing:0.1mm

Surface Finishing:HASL; ENIG; Immersion Gold/Tin; Gold Finger; Carbon Oil

ISO Certificate 1:ISO9001:2000

ISO Certificate 2:ISO 14001

ISO Certificate 3:ISO / TS 16949:2002

UL Certificate:UL E203640

Surface processing 1:OSP

Surface processing 2:HASL

Surface processing 3:Immersion Tin

Surface processing 4:Immersion Gold

Surface processing 5:HAL Lead free

Surface processing 6:Gold Connector

Level:IPC-6012 Class 3

Fabrication:IPC-A-610

Flame Resistance:UL 94V0

Packaging & Delivery

Packaging Details

according to the customers' requirements and Export Rules.

Delivery Time3-10days , depend on final data confirmation



Main Products



Our Factory

PCB Factory and Machine

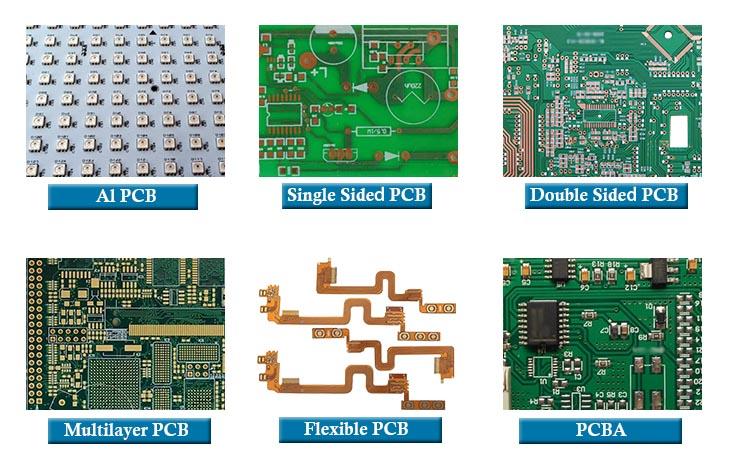

ShenZhen XFHD Eletronic Co., Ltd was established in 2002. We mainly offer high-precision single-side, double-side, multi-layer printed circuit boards, LED aluminium printed circuit board, customers components procurement and PCB assembly (SMT) business.
Now the production capacity of our factory has reached 600,000 square meters annually. And our products apply far and wide in many fields such as communication, computer, mobile phone, eletronic equipment and electrical appliance.
We established an assembly line in 2010, all the assembly machines were purchased from Pnansonic, which can assemble the components of 0201. The production capacity of the PCBA are 2,000,000 points per day.



We have two large plate warehouses, our plates contain different thickness, different varieties, different copper thickness, which is able to meet different requiremets of our customers

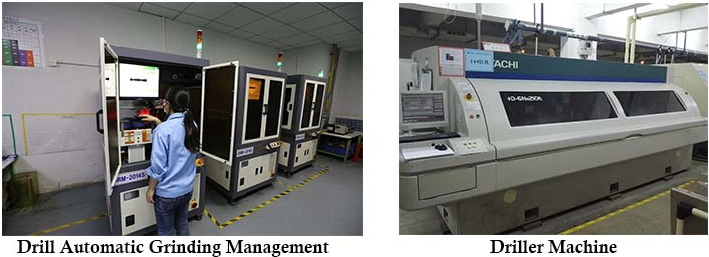

Drill is very important, so we have a perfect drill management area, and a machine 24 hours polished to ensure the quality of the drill bit.



We use the VPC (Vertical Continuous Plating) to ensure that the plated surface is smooth and uniform.

First we will exposure the Gerber circuit onto the film and then we will manufacture the PCB exactly the same according to the film. In the meanwhile, we maintain our workshop clean all day long to ensure the accuracy of exposure.

   For multi-layer sheet, we use AOI equipment for inner inspection to ensure the inner quality.



Our Services

Now we have been a factory which can provide one-stop service, from the PCB production, the components purchasing to the components assemble.

XFHD production capacity

PCB Item

Manufacture Capacity

   Layer Counts

   1--24L

   Base Material

   FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)

   Material Thickness(mm)

   0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2

   Max board size(mm)

   900x900mm

   Board Outline Tolerance

   ±0.13mm

   Board Thickness

   0.4mm--5.0mm

   Thickness Tolerance

   ±8%

   Minimum line/space

   0.1mm4MIL

   Min Annular Ring

   0.1mm4MIL

   SMD Pitch

   0.3mm

Min Clearancesolder mask

0.003" (0.07mm)

Thickness solder mask

0.006" (0.15mm)

Holes



   Min  Hole Size(mechanical)

   0.15mm

   Min Hole Size(laser hole)

   0.1mm

   Hole Size Tol (+/-)

   PTH:±0.075mm;NPTH: ±0.05mm

   Hole Position Tol

   ±0.075mm

Plating



   HASL/LF HAL

   2.5um

   Immersion Gold

   Nickel  3-7um  Au:1-5u''

   Surface Finish

   HAL,ENIG,Plated Gold,Immersion Gold,OSP

   Copper



   Copper Weight

   0.5--6oz

Color



   Solder mask

   Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue

   Silk screen

   White, Black, Blue,Yellow

   Acceptable File Format

   Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000

   Certificate

  UL. ISO9001, IS16949 and ROHS

  TEST

Test Rate

100%

Electronic Test

Yes

Flying Probe Test

Yes

Packaging & Shipping

 Our company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:
PCB:  Sealed bag, Anti-static bags, Suitable carton.
PCBA:  Antistatic foam bags, Anti-static bags, Suitable carton.

Regular Cartons Specification.
No. Dimension (L*W*H)
Small Size :         33cm*28.5cm*18.5cm
Medium Size:     44.5cm*30cm*15cm
Big Size:              51.5cm*32.5cm*17.5cm

Customized Cartons:
Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.

 FAQ

 - What does XFHD need for a customized PCB order?

   When you place a PCB order, you need to provide Gerber or pcb file.

   If you do not have the file in the correct format, you can send all the details related to the products.

-  What does XFHD need for a customized PCBA order?

  When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list.

- What is your quotation policy?

  For the PCB order in large quantity, we will send you the quotation based on the MOQ of the products concerned.

- What does XFHD need for other services?

  For PCB clone service, the customer needs to send us the printed circuit board concerned, and also the sharp photos of its front side and the back side.

- How about the service offered to the customers?

  If you have any questions about our products or company, do not hesitate to send us your inquiry to our customer service representatives. Your satisfaction is our pursuits.
