Shoes UV curing machine TM-500UVF-A

Model:TM-500UVF-A
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:UV curing dryer , e UV curing printer , Shoes UV dryer
Price: US $6000 / UNIT
Min. Order:1 UNIT
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:20 Oct, 2023

Product Description

Shoes UV curing machine TM-500UVF-A with 4pcs 3KW UV lamp

UV Curing Machine TM-500UVF-A be fit to  UV curing drying for Shoes, plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying ,  UV pritning, packing products UV drying .

 UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

1. Model NO. TM-500UVF-A
2.UV Drying  products:500*100*2000mm
3.Conveyor belt size:L2200* W500MM
4.UV Lamp power:4PCS*3KW /380V
5.Total wattage:13KW
6.Wind fan wattage: 1000W/380V
7.Motor wattage:1000W/3P/380V
8.Conveyor speed:0~10m/min
9.Speed change ways: Continue
10. Dimension: L*W*H2120*500*1350
11.Weight:350kg
note:1 good Teflon belt which can bear the high temperature
2 add 1 set intensive air cooling extraction controlled with thermostat
3  install a vacuum suction system internal the tunnel very very strong for the conveyor

Model number TM-500UVF-A TM-600UVF-A TM-700UVF-A TM-800UVF-A TM-900UVF-A TM-1200UVF-A
max product width 500mm 600mm 700mm 800mm 900mm 1200mm
max product length 2000mm 2000mm 2000mm 3000mm 3000mm 3000mm
 UV Process shine area 500*2000mm 600×2000mm 700×2000mm 800*3000mm 900*3000mm 1200*3000mm
  conveyer speed: 0-10m/min 0-10m/min 0-10m/min 0-10m/min 0-10m/min 0-10m/min
UV Lamp power 3KW ×4PCS/ 3KW ×4 PCS/ 3KW ×4 PCS/ 5.6KW*4pcs 5.6KW*4PCS 5.6KW*4 PCS
UV Machine  Dimension: 2020×550×1200mm  2020*650*1200mm  2020*750*1200mm  3020*850*1200mm 3020*950*1200mm 3020*1250*1200mm


Testing Please provide:
1. 380V power supply.






Product Image

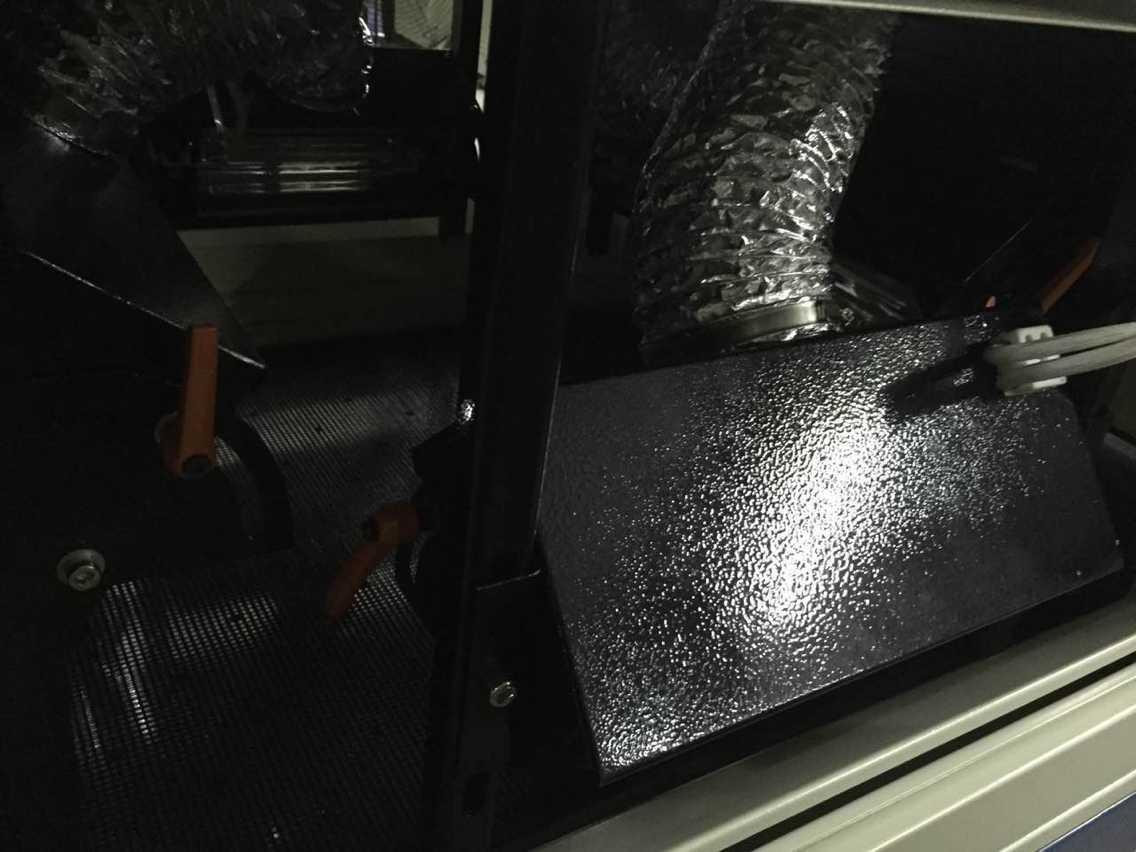

Shoes UV curing machine TM-500UVF-A 1
Img 1
Shoes UV curing machine TM-500UVF-A 2
Img 2
Shoes UV curing machine TM-500UVF-A 3
Img 3
Shoes UV curing machine TM-500UVF-A 4
Img 4
Shoes UV curing machine TM-500UVF-A 5
Img 5
Shoes UV curing machine TM-500UVF-A 6
Img 6
