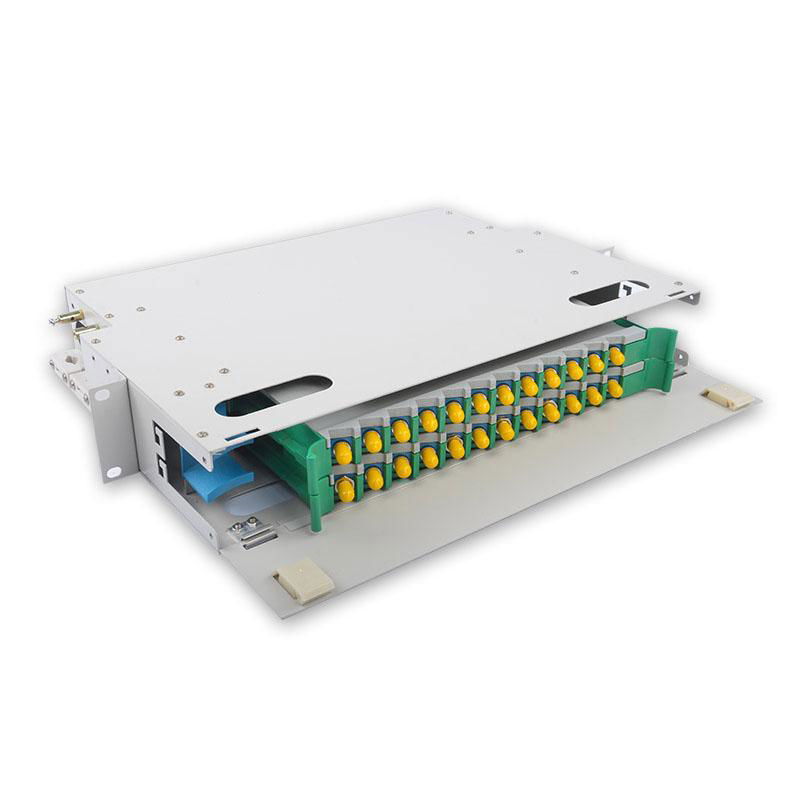

Rackmount ODF distribution frame ST connector
Product Description
| Applications: |
| 1. It can fix the optic cable and protect the connection between cables and pigtails. |
| 2. The box is unique structure, reasonable layout. It’s easy installation and convenient maintenance. |
| 3. There is clear identification. Easy for transfer, jumper and test. |
| |
|
| Specifications: |
|
| Operating temperature |
-5°C +40°C |
| Relative humidity |
≤90% (when the temperature is below 30°C) |
| Atmosphere pressure |
70Kpa – 106Kpa |
| Storage temperature |
-40°C - +70°C |
| Insertion loss |
≤0.20dB |
| Return loss |
PC≥45dB ,UPC≥50dB,APC≥60dB |
| Durability |
>1000 times |
| Insulating resistance |
≥1000 MΩ 500V |
| Voltage-resistance strength |
Under the effect of 3000V, 1min, non-puncture, and no arc-over |
| Wavelength |
850nm, 1310nm, 1550nm |
| Payment Terms: | T/T in advance |
| |
