| Model: | SYF30 |
|---|---|
| Brand: | SYNBON |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | froklift , Diesel/electricity , upgrade |
| Price: |
US $8000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:26 Dec, 2017 |

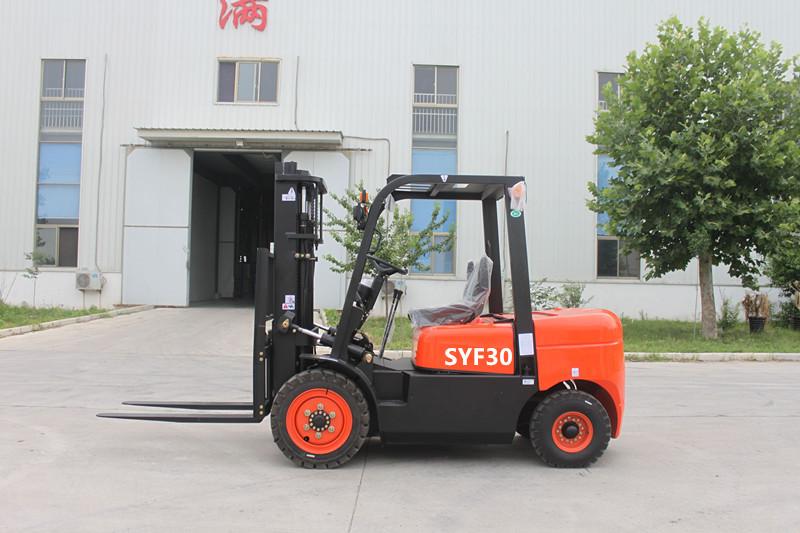

3tons diesel forklift truck
|
Main specification: |

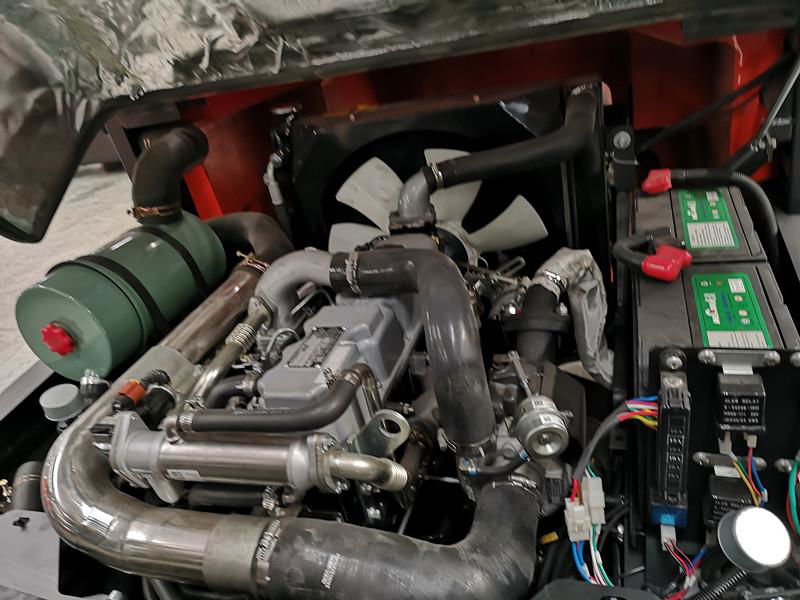

CHINA QUANCHAI/xinchai 490 ENGINE; AUTOMATIC TRANSMISSION; 3-stage 3000MM mast; 1220MM fork; PNEUMATIC tire; WARNING AND REAR LIGHT. |
||
|
Model |
|
SYF30 |
|
|
Rated capacity |
kg |
3000 |
|
|
Load center |
mm |
500 |
|
|
Power type |
|
Diesel |
|
|
Transmission |
|
Automatic |
|
|
Dimensions
|
Lifting height |
mm |
3000 |
|
Free lifting height |
mm |
80 |
|
|
Turning radius |
mm |
2500 |
|
|
Overall length |
mm |
3800 |
|
|
Overall width |
mm |
1230 |
|
|
Overall height (mast lowered) |
mm |
2110 |
|
|
Overall height (mast raised) |
mm |
4270 |
|
|
Overall height (overhead guard) |
mm |
2110 |
|
|
Fork length |
mm |
1370 |
|
|
Fork width |
mm |
150 |
|
|
Fork thickness |
mm |
50 |
|
|
Performance |
Max. driving speed (with/without load) |
km/h |
18/20 |
|
Max. lifting speed (with load) |
mm/s |
400 |
|
|
Max. traction (with/without load) |
kn |
15.5/10.5 |
|
|
Gradeability (with/without load) |
% |
15/20 |
|
|
Tilting angles (forward/backward) |
° |
6/12 |
|
|
Service weight |
kg |
4320 |
|
|
Engine |
Engine model |
|
China 490 engine |
|
Power |
kw |
39/40 |
|
|
Rated speed |
rpm |
2650 |
|
|
Displacement |
L |
2.67 |
|
|
No. of cylinder |
|
4 |
|
|
Wheel |
Front overhang |
mm |
465 |
|
Wheel base |
mm |
1700 |
|
|
Front tread |
mm |
1000 |
|
|
Rear tread |
mm |
970 |
|
|
Front tire |
|
28x9-15 |
|
|
Rear tire |
|
6.50-10 |
|
================================================
