| Model: | SDX-01 |
|---|---|
| Brand: | SUNDAY |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | line laser module , Wavelength405nm , Output power120nw |
| Price: |
US $10
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:28 Dec, 2017 |

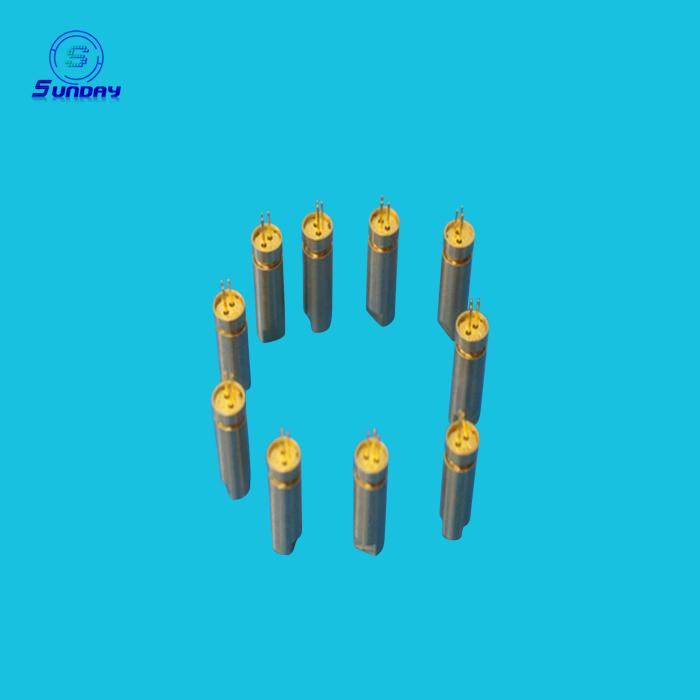

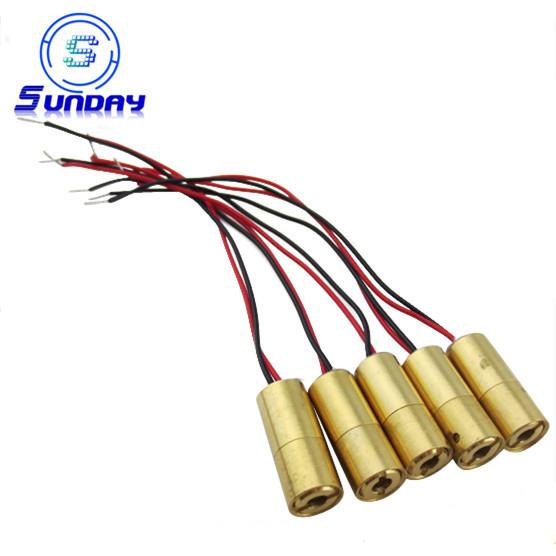

Line Laser Module
Specifications
1.Wavelength:405nm,450nm,532nm,635nm,650nm,780nm,808nm,850nm,980nm.
2.Output power:1mw to 200mw
3.Beam divergence: 1.5mrad
5.Fan angle: 5°10°30°45°60°75°90°
6.Laser line accuracy:<30”(at 5m)
7.Operating Voltage:DC3V-5V
8.Operating Temperature:10℃-35℃
9.Storage Temperature:-30℃～80℃
10.Dimensions:8mmx10mm,12mmx45mm 16mmx70mm,22mmx110mm or customer size.
11.MTTF:8000hours
Characteriscics：
High-quality laser diode,optical glass lens, driver circuit and housing
Better line quality
High reliability, high stability, long life,low price
Applications:
Machine vision
Industrial inspection
Industrial marking devices
3D contour mapping
Positioning & visualization
Biomedical
High-end alignment
Laser targeting devices and so on..
