| Model: | DTU-1701 |
|---|---|
| Brand: | DTAO |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | MOS tube tester , Capacitance tester , Transistor tester |
| Price: |
US $11
/ pc
|
| Min. Order: | 500 pc |
| Live Chat: | Last Online:07 Dec, 2017 |
1. Product Description

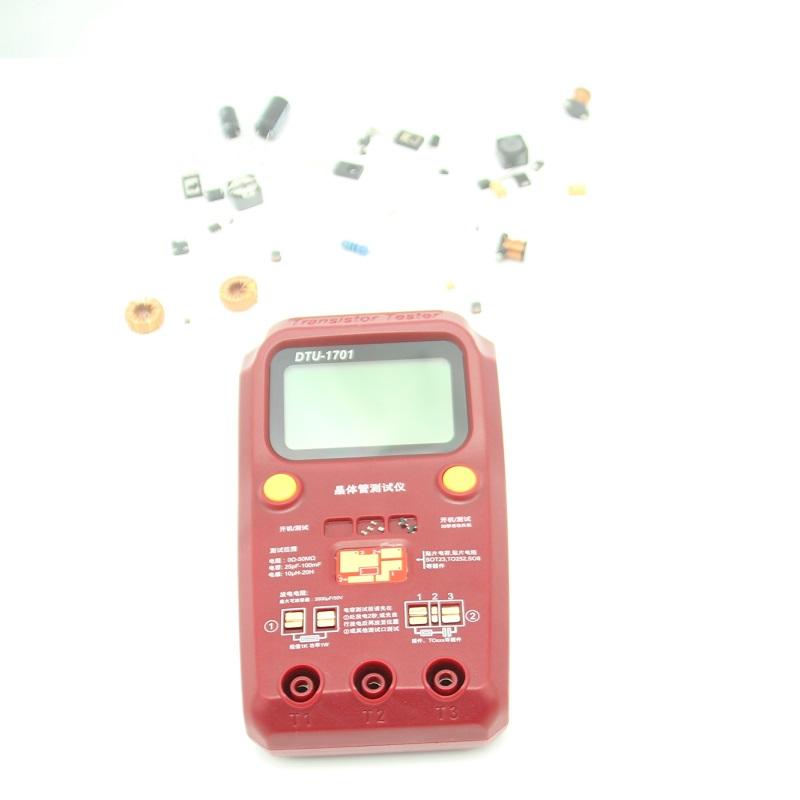

This Tester is a small tool design for Engineer, Electronic Maintenance and Fac-tory. It’s very easy to test plug-in and SMD devices, also can test different kinds of Diodes, Triodes, Thyristors, MOSFET; able to analysis the device type, the polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.
2. Attention
● Always be sure to discharge capacitors before connecting them to the Tester!
● Power down the equipment if test components mounted in a circuit.
● If using DC supply, please choose DC 9V-12V adapter(including 9V and
12V).

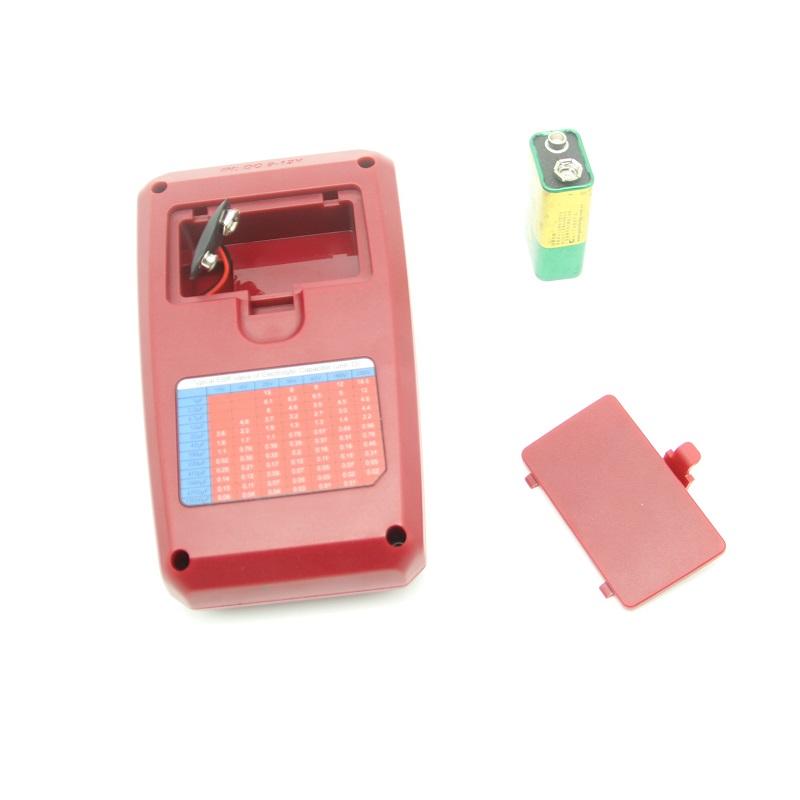

● When the battery power is under 6V, please replace a new one.
3. Measuring Parameters
Resistor: 0Ω-50MΩ Resolution: 0.01Ω
Capacitor: 25pF-100mF Resolution: 1pF
Inductor: 0.01mH-20H Resolution: 0.01mH
Capacitor ESR: 2 Resolution: 0.01Ω μF-50mF
(ESR: Equivalent Series Resistance)
