UHMWPE Plastic Ice Rink Hockey Shooting Rink
Product Description
UHMWPE Plastic Ice Rink Hockey Shooting Rink
Advantages over real ice:
1. Good skating experience like on real ice
Super smooth surface makes good skating experience like natural ice
2. Easy installation
Easy assembly/disassembly due to the puzzle system that guarantees a flat and level surface of the rink.
3. Cost effective
Low operating and maintenance cost
4.For any type of skates
No special ice skates are required, it can be used with traditional ice skates
5. Any weather any place
The system can be used in any place and in any weather condition.
6. Extensive application
Public ice-skating, hockey schools, sport facilities, etc.
7. Free Play
The same movements, jumps and tricks can be implemented as on real ice
8.Long life span
The lifespan is significantly longer than that of the traditional plastic ice-rinks
9.Any size can be customized
Plastic ice rinks are manufactured from 100% UHMW PE which will not warp, crack, splinter or corrode. It has become a popular choice for skating boards, hockey playground and many other facilities. Our UHMW PE ice rinks have lots of advantages over real ice.
UHMW PE is a kind of engineering plastic with medium price and superior properties. It has almost combines all excellent properties of plastics. It has excellent abrasion resistance, high impact resistance, self-lubricating properties ,outstanding ability against cold ,eco-friendly ,and light weight.
Characters
Made with 100% virgin UHMWPE which is known for its high quality and cost-effective rates. It is no poison, low temperature tenacity, good twisting endurance, excellent chemical erosion, superficial electrical performance within wide frequency range, etc and more rigid and harder than LDPE(low density PE) materials and is three times better in compressive strength.These sheets are widely used in different applications.
Images
Properties for UHMWPE Sheet
PROPERTIES
Test Method
Unit
Value
I.Physical Properties
Density
ISO 1183
g/cm3
0.96
Water absorption 24hrs
ISO 62
%
0.01
II.Thermal Properties
Heat deflection temperature - HDT/A
ISO 75-2
C
42
Min. service temperature
C
-269
Max. service temperature-Long Term
C
90
Thermal conductivity at 23 C
DIN 11359
W/(K*m)
0.42
Coefficient of linear thermal expansion
ISO 11359
10-4*K-1
2
Flammability Rating(6mm thickness)
UL 94
-
HB
III.Mechanical Properties at 23C
Tensile strength at yield
ISO 527-2
MPa
17
Tensile strength at break
ISO 527-2
Mpa
40
Elongation at break
ISO 527-2
%
>50
Modulus of elasticity after tensile test
ISO 527-2
MPa
650
Modulus of elasticity after flexural test
ISO 178
MPa
800
Hardness - Shore D
DIN 53505
61
Charpy impact strength
ISO 179
kJ/m2
N. B.
Friction coefficient
DIN 53375
0.25
IV.Electrical Properties at 23C
Dielectric constant at 1 MHz
IEC 60250
106Hz
3.1
Dielectric loss factor at 1 MHz
IEC 60250
106Hz
0.0001
Volume resistively
IEC 60093
Ohm () * cm
>1014
Surface resisively
IEC 60093
Ohm ()
>1011
Dielectric strength
IEC 60243-1
kV/mm
45
http://www.plasticptfe.com

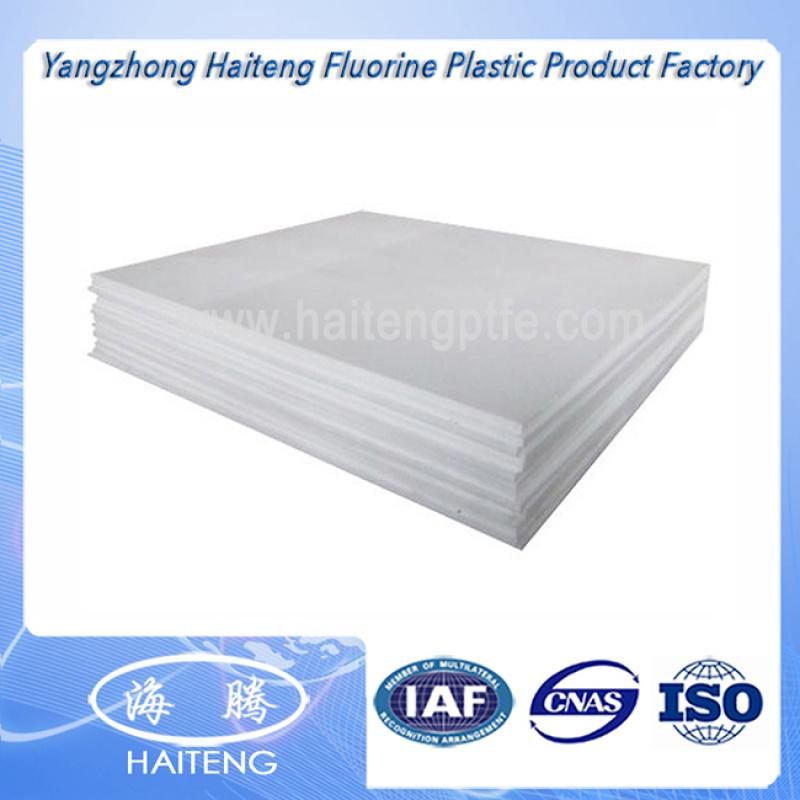

Product Image
