Circuit board engraving machine

Model:D2530
Brand:ZRELEC
Origin:Made In China
Category:Industrial Supplies / Machinery / Engraving & Etching Machine
Label:Circuit board engrav , PCB engraving machin , PCB engraving machin
Price: US $4000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Beijing Rui power electronic equipment Co. Ltd.

Free MemberBeijing - China
Live Chat:点击这里给我发消息Last Online:26 Oct, 2017

Product Description

Introduction:

  • Automatic zero position: automatic move to set-zero from anywhere.
  • Position and asymmetry positioning technology: ensure the accurate and correct of the positioning.
  • Continue drilling after breakpoint:  start engrave from any percent or to any percent.
  • Virtual process: display the actual process according to the set parameter.
  • Real-time display the process pate: show al process before processing, show the current position when processing.
  • Choose any region to engrave: choose any area for engrave
  • Combination of engrave/automatic choose the cutter: select two cutters, automatic assigned area. Choose a large cutter when it does not affect the accurate, it can milling our large area in higher speed.
  • Universal drilling: dig any holes using a fixed cutter, reduce the times of change the drill.









Parameter



Processing panel

double sides

Working area

25cm*30cm

Mini workable diameter

6mil

Mini workable linear

4mil

Resolution

0.04mil(1um)

Operate speed

4.8m/min

Spindle speed

0-60000r/min

Spindle power

95W

Linear guide

Imported linear guide rail line

Drive means

Imported ball screw drive

Drill hole diameter

0.4-3.175mm

Drill speed

100(hole/min)

Control means

ARM

Communication

RS-232/USB

Dimension

480mm*615mm*450mm

Weight

60kg

Power

200VA


Product Image

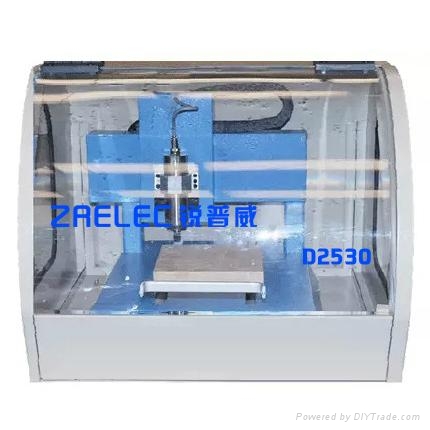

Circuit board engraving machine 1
Img 1
Circuit board engraving machine 2
Img 2
