| Model: | 01 |
|---|---|
| Brand: | baowei |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Battery, Storage Battery & Charger |
| Label: | solar panel , batteries , solar module |
| Price: |
¥100
/ sqm
|
| Min. Order: | 100 sqm |
| Live Chat: | Last Online:11 Oct, 2017 |
Quick Information
Description

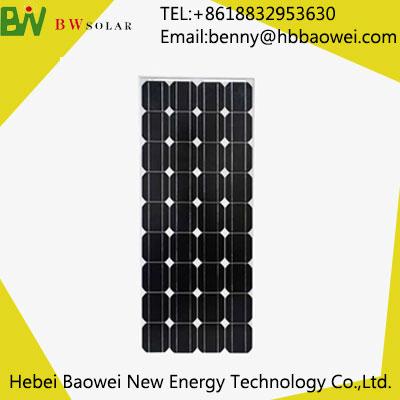

BAOWEI-150-36M Monocr line Solar Module
| Mechanical Data | |
| Cell type | Mono156mm*156mm |
| No. cells | 36 (4*9) |
| Size | 1480*680*35mm |
| Weight | 11.6kg |
| Electrical Data | ||||
| (STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5) | ||||
| Power | 135w | 145w | 150W | 155w |
| Max. power voltage (Vmp) | 18.18V | 18.18V | 18.18V | 18.18V |
| Max. power current (Imp) | 7.43A | 7.98A | 8.26A | 8.43A |
| Open circuit voltage (Voc) | 21.6V | 21.6V | 21.6V | 21.6V |
| Short circuit current (Isc) | 8.17A | 8.78A | 9.08A | 9.38A |
| Power Tolerance | ±3% | |||
| Normal Operating Cell Temp(NOCT) | -40/+85℃ | |||
| Tem compensation coefficient | -（0.45±0.05）%/ ℃ | |||
| Tem of ISC | (0.065±0.015)%/ ℃ | |||
| Tem of VOC | -（80±10）mv/℃ | |||
| Tempered Glass | 3.2mm | |||
