AOI Automated Optical Inspection Testing Service

Model:CW-D586
Brand:Chuangwei
Origin:Made In China
Category:Industrial Supplies / Other Industrial Supplies
Label:Solder Paste Inspect , AOI Test Pcba , Inspection by AOI
Price: -
Min. Order:1 Set
Inquire Now Add to Basket

Member Information

Detail

ChangWei Electronic Equipment Manufactory

Free MemberGuang Dong - China
Live Chat:Last Online:15 Mar, 2021

Product Description

Solder Paste Inspection - Used SMT / PCB Equipment Marketplace,CW-D586 Feature:

1. Intelligent double conveyor structure design, the machine with the customer's double conveyor reflow or mounting machine seamless docking, cuts down the consumption.

2.According to the customer's own production demands to choose the double conveyor single vision system or double conveyor two vision system configuration.

3. double conveyor programs can be free to switch & combination to respond to different production needs.

4.Two sets of inspection system can share the database, can output the SPC report.

Automatic Optical Inspection of Soldering PCB SMT Description:

Easy to operate and multi-function AOI

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, check component defects before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.

Double conveyors design

*The first and the fourth conveyor fixed, the second and the third conveyor are adjustable: the inspection size between:50×50mm~510×280mm .

*Can customize double conveyors or other more functions according to customer's different request

Add professional character recognition function (OCR/OCV) further enhance the testing precision;

The new function first potential PPK analysis process and statistical analysis P-BAP chart can get offset value after reflow, which provide accurate effective reference material for process improvement.

Both double conveyors single head and double heads AOI are pioneered by us

*Both double conveyors single head and double heads AOI are pioneered by us, which can joint with other front and rear equipment in SMT seamlessly, save load and unload time to carry out continuous operation to improve productivity

*Meanwhile, this equipment can choose a variety of light source using high-speed digital camera to achieve the highest detective capability. This can be placed in multiple stations of SMT line for inspecting such as after print, before reflow and after reflow.

Offline Deb ing

The offline programming software can connect multiple online testing AOI and carry out program deb ing without halt to improve efficiency.

Database sharing and statistical functions

All internal AOI are managed via central server, all single machines are in remote control. SPC reports will be generated through collection and analysis of all data to promote process improvement and improve products passing rate.

Detailed SPC Analysis Report

To generate a variety of visual reports through analysis and statistics from testing results of all products.

About us:

Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.

Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China

Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.

Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.

Other Information Solder Paste Inspection - Used SMT / PCB Equipment Marketplace,CW-D586

If you need the machine,please contact us:

Skype/Email: s5@smtfly.com

WhatsApp/Wechat:  +86 136 8490 4990

www.pcb-depaneling.com

www.pcb-depanelizer.com


Payment Terms:TT/LC

Product Image

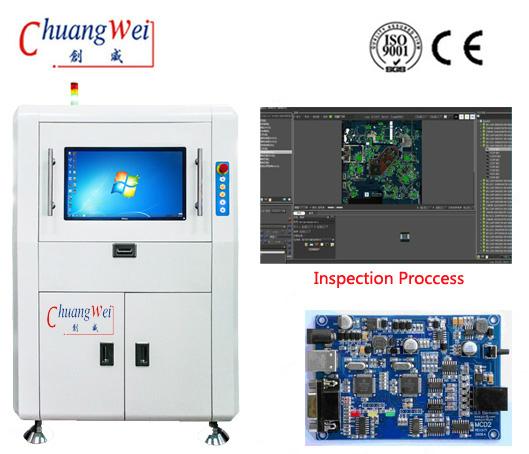

AOI Automated Optical Inspection Testing Service 1
