Product Description



The JCMA Series solenoid dosing pumps are Microprocessor-based digital control solenoid driven metering pumps with simple operation and stable operation.





The microprocessor design employs a customized liquid crustal display (LCD) and a taxtile response keypad. The "state-of-the-art" surface mount electronics are fully encapsulated to ensure protection in its working environment. all external inputs and outputs are opto-isolated from microprocessor.











JCMA-S: Manual Adjustment




1) Manual adjust flow





2) Pump LED ON/OFF indicator





3) Displayable frequency percentage






JCMA-C: Auto-Adjust (digital impulse signal control)




1) Working condition display, liquid-level probe and remote ON/OFF connector, two output modes available





2) Manual flow adjust mode: according to your manual-chose frequency





3) Auto flow adjust mode:signal recived (Digital pulse signal)








JCMA-H: Auto-Adjust (4-20mA electric curent signal control)




1) Working condition display, liquid-level probe and remote ON/OFF connector, two output modes available





2) Manual flow adjust mode: according to your manual-chose frequency



3) Auto flow adjust mode: signal recived (4-20mA electric current signal)











                                                JCMA36 Model









Model




Max. Flow



Max. Pressure



Pipe Dia. (mm)



Material




JCMA362.5/10


2.5 L/H


10bar



In 4 Out 9.5


PVC




JCMA36- 1.5/12


1.5 L/H


12bar



In 4 Out 9.5


PVC




JCMA36- 0.8/15


0.8 L/H


15bar



In 4 Out 9.5


PVC






                                                  JCMA45 Model








Model



Max. Flow



Max. Pressure



Inlet Pipe Dia. (mm)



Outlet Pipe Dia. (mm)



Material




JCMA4515/1.5


15 L/H


1.5 bar



In 5.5 Out 9.5



In 4 Out 9.5


PVC




JCMA45- 11/2


11 L/H


2 bar



In 5.5 Out 9.5



In 4 Out 9.5


PVC




JCMA45- 7/3.5


7 L/H


3.5 bar



In 5.5 Out 9.5



In 4 Out 9.5


PVC




JCMA45- 3.5/7


3.5L/H


7bar



In 5.5 Out 9.5



In 4 Out 9.5


PVC

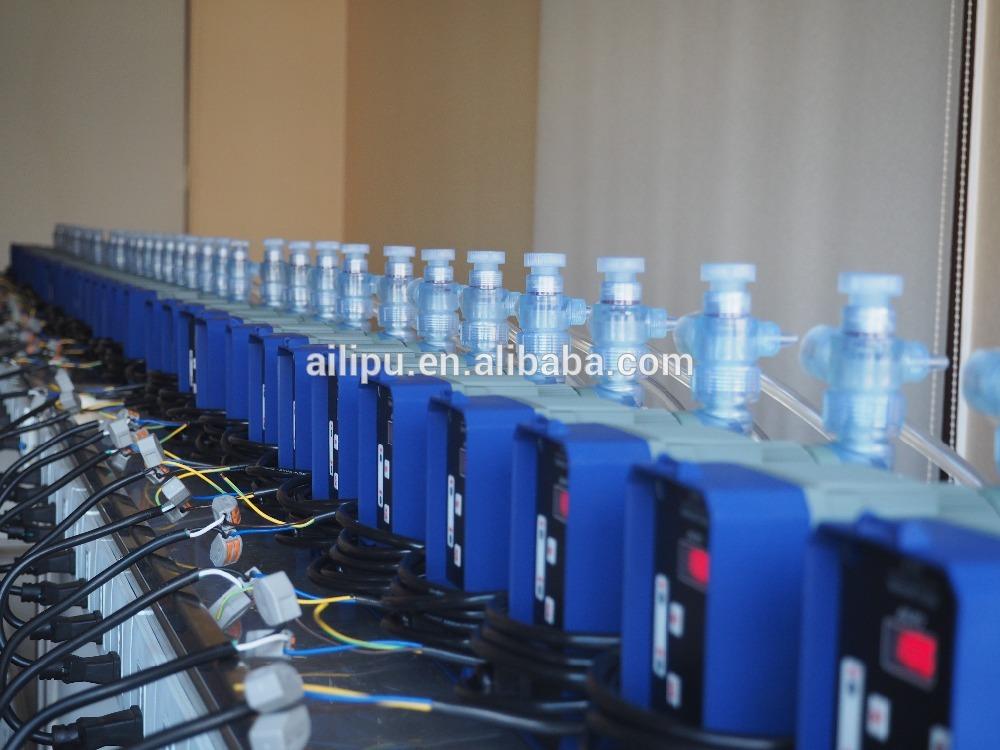

Products Show
















Key Features




1) High speed operation: up to 400 strokes per minute with the elimination of slug-feed effects





2) Compact size: small, quiet, and lightweight





3) Long lasting diaphragm: made up by PYFE, which is compatible with all kinds of chemicals. The life is over 5 years, which 5 times as national standards GB/T7782-2008





4) Strong stability: working stability in AC100-240V, and suitable for 50-60 Hz





5) High protection level: protection level is IP65, and it can function safely under tough environment





6) Ball check valves: ensure tight sealing to prevent loss of prime
