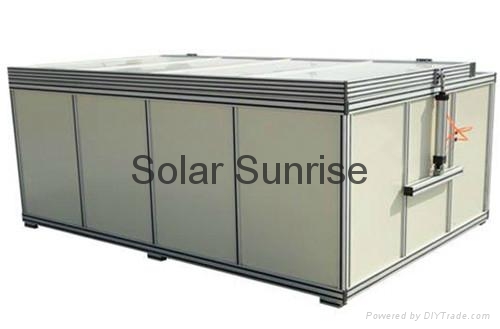

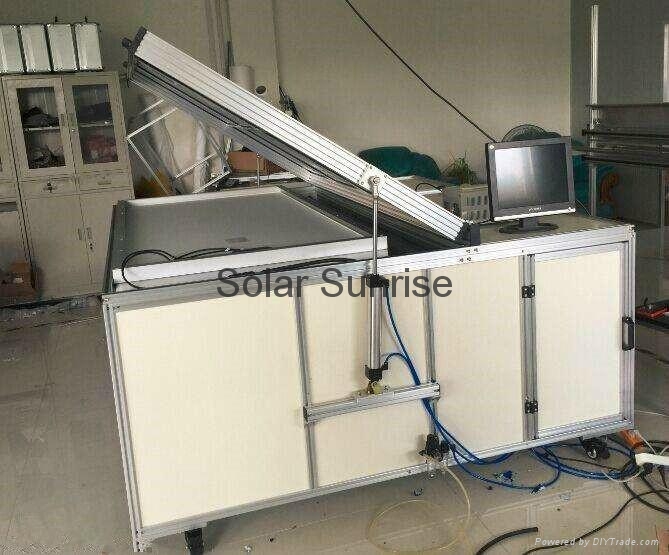

Solar module EL Tester EL-1600/2400

Introduction:

The working principle of EL Tester is to detect internal defect of solar modules by electroluminescence.

Test and inspect the micro-crack,breakage,broken fingers of the cells and pseudo-soldering of the modules,also applicable to check or find the mismatch of the cells or stringers with different power rating.

Features:

1. Bigger and clearer Images, so that it is very easy to find all solar modules defect.

2. High automation with auto Picture&storage, automatic recognition for serial number.

3. High detection efficiency: advanced imaging system with optimization design to realize single module detecting time within 50 seconds.

4. System of high stability to ensure 100% electrified rate for solar modules.

5. System operation panel and software are very easy and convenient to use.

6. Powerful auxiliary functions: This equipment can be connected to solar modules assembly line and implement interactive information. Other customized functions can be added by our developing group upon customers’ requirements.

Applications:

Test and inspect the micro-crack,breakage,fragment of the cells and pseudo-soldering of the modules.

Check and find the mismatch of the cells or strings with different power rating.

Technical Specifications:
