| Model: | UL20549 |
|---|---|
| Brand: | WCH Cable |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Electric Wire & Cable |
| Label: | cable , spiral cable , halogen free cable |
| Price: |
US $0.212
/ pc
|
| Min. Order: | 200 pc |
| Live Chat: |  | Last Online:03 Oct, 2023 |

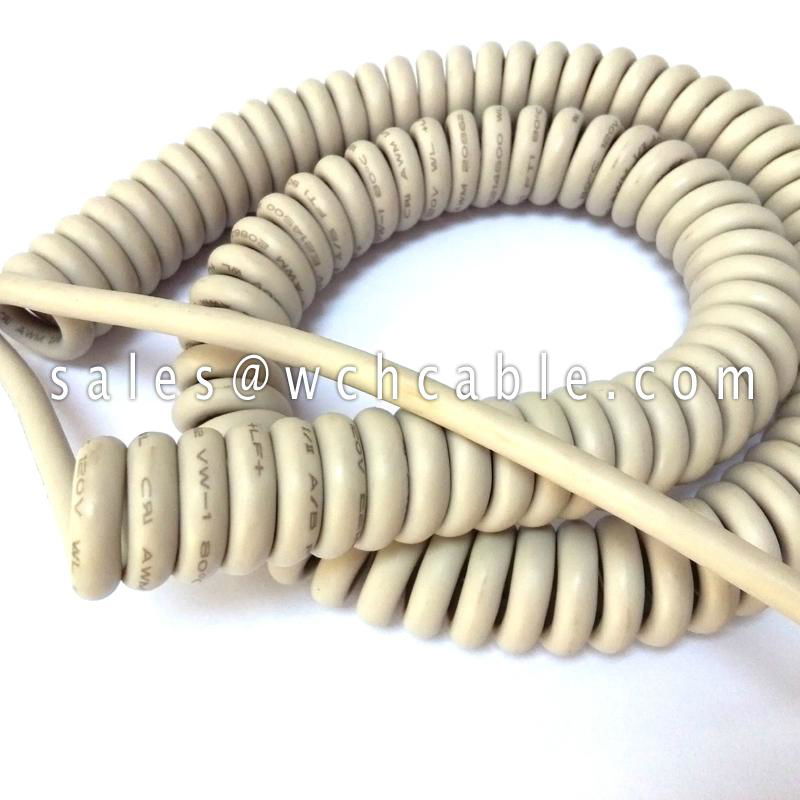

Halogen Free Spiral Cable UL20549
1. Tinned stranded or bare annealed copper conductor.
2. Insulation material: PP, PVC, SR-PVC, HDPE, FR-PE, TPE, PUR.
3. Rated temperature: 80C.
4. Rated voltage: 300V.
5. Uniform insulation wall thickness for easy stripping and cutting.
6. UL VW-1 and CSA FT-1/FT-2 vertical flame test verified.
7. Jacket material: Thermoplastic Polyurethane PUR.
8. Standard executed: Appliance Wiring Material UL758
9. 100% RoHS compliant.
10. Outstanding feature: Halogen Free.
Application
Internal wiring of electronic equipment and appliances.
| UL Style | Cores | Conductor | Insulation Thickness | Nominal
Diameter |
Jacket Thickness | Overall Diameter | Conductor Resistance at 20°C | |
| AWG | No/mm | mm | mm | mm | mm | Ω/KM | ||
| UL20549 | 2C | 30 | 7/0.10 | 0.25 | 0.80 | 0.60 | 3.00 | 381 |
| 28 | 7/0.127 | 0.25 | 0.90 | 0.60 | 3.20 | 239 | ||
| 26 | 7/0.16 | 0.25 | 1.00 | 0.60 | 3.50 | 150 | ||
| 24 | 11/0.16 | 0.25 | 1.10 | 0.60 | 3.80 | 94.2 | ||
| 22 | 17/0.16 | 0.25 | 1.30 | 0.60 | 4.20 | 59.4 | ||
| 20 | 21/0.178 | 0.25 | 1.50 | 0.60 | 4.60 | 36.7 | ||
| 18 | 34/0.178 | 0.25 | 1.80 | 0.60 | 5.20 | 23.2 | ||
| UL20549 | 3C | 30 | 7/0.10 | 0.25 | 0.80 | 0.60 | 3.20 | 381 |
| 28 | 7/0.127 | 0.25 | 0.90 | 0.60 | 3.60 | 239 | ||
| 26 | 7/0.16 | 0.25 | 1.00 | 0.60 | 3.90 | 150 | ||
| 24 | 11/0.16 | 0.25 | 1.10 | 0.60 | 4.20 | 94.2 | ||
| 22 | 17/0.16 | 0.25 | 1.30 | 0.60 | 4.40 | 59.4 | ||
| 20 | 21/0.178 | 0.25 | 1.50 | 0.60 | 4.90 | 36.7 | ||
| 18 | 34/0.178 | 0.25 | 1.80 | 0.60 | 5.60 | 23.2 | ||
| UL20549 | 4C | 30 | 7/0.10 | 0.25 | 0.80 | 0.80 | 3.80 | 381 |
| 28 | 7/0.127 | 0.25 | 0.90 | 0.80 | 4.30 | 239 | ||
| 26 | 7/0.16 | 0.25 | 1.00 | 0.80 | 4.60 | 150 | ||
| 24 | 11/0.16 | 0.25 | 1.10 | 0.80 | 4.80 | 94.2 | ||
| 22 | 17/0.16 | 0.25 | 1.30 | 0.80 | 5.30 | 59.4 | ||
| 20 | 21/0.178 | 0.25 | 1.50 | 0.80 | 5.80 | 36.7 | ||
| 18 | 34/0.178 | 0.25 | 1.80 | 0.80 | 6.60 | 23.2 | ||
| UL20549 | 5C | 30 | 7/0.10 | 0.25 | 0.80 | 0.80 | 4.30 | 381 |
| 28 | 7/0.127 | 0.25 | 0.90 | 0.80 | 4.70 | 239 | ||
| 26 | 7/0.16 | 0.25 | 1.00 | 0.80 | 5.00 | 150 | ||
| 24 | 11/0.16 | 0.25 | 1.10 | 0.80 | 5.40 | 94.2 | ||
| 22 | 17/0.16 | 0.25 | 1.30 | 0.80 | 5.80 | 59.4 | ||
| 20 | 21/0.178 | 0.25 | 1.50 | 0.80 | 6.40 | 36.7 | ||
| 18 | 34/0.178 | 0.25 | 1.80 | 0.80 | 7.00 | 23.2 | ||
| UL20549 | 6C | 30 | 7/0.10 | 0.25 | 0.80 | 0.80 | 4.60 | 381 |
| 28 | 7/0.127 | 0.25 | 0.90 | 0.80 | 4.90 | 239 | ||
| 26 | 7/0.16 | 0.25 | 1.00 | 0.80 | 5.40 | 150 | ||
| 24 | 11/0.16 | 0.25 | 1.10 | 0.80 | 5.60 | 94.2 | ||
| 22 | 17/0.16 | 0.25 | 1.30 | 0.80 | 6.30 | 59.4 | ||
| 20 | 21/0.178 | 0.25 | 1.50 | 0.80 | 6.80 | 36.7 | ||
| 18 | 34/0.178 | 0.25 | 1.80 | 0.80 | 7.80 | 23.2 | ||
