Waterproof aluminum profiles for LED Strips mounting on ground

Aluminium description:
Item NO:P2626-0.5m

Length: 0.5~3m optional, 1m(standard), 2m(standard)

Suit for LED strip width: 12mm x LED strip 8,10,12 mm

surface finish:anodized


Screen(transprent, diffused)



End Cap(one with a hole, another one without a hole)






Installation process:
1.assembly process:

 a.Put the led strip inside the profile button ;

 b. Put the pc cover to the aluminum

 c. use the end cap plug the profile

 d.you can put the fix clip to wall and floor, the fix clip can be installed where  you want.use screw fixed the clip  in here, put the aluminum inside

2.How to make the product waterproof?

 The first way:

 a.make a channel with width 20mm and height  9mm

 b.add the sealant into the channel;

 c.put the end caps onto aluminum profile with the sealant, and then put it into the channel

 d.complete the install

Application:

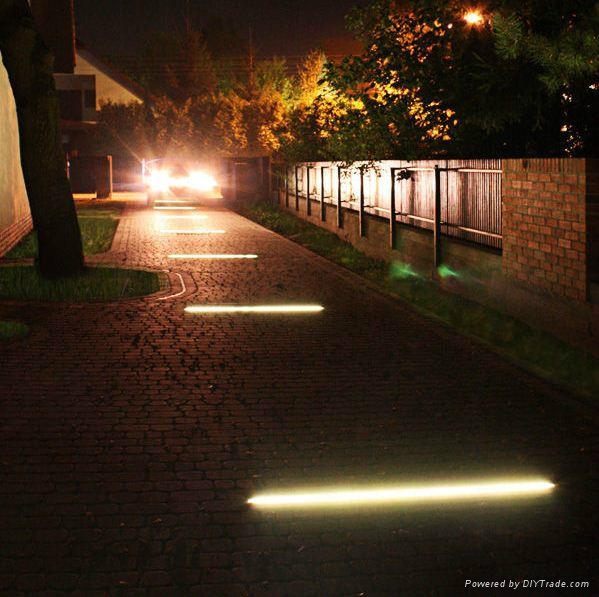

Unique profile P2626 is ideal for mounting under ground . There is no better solution to install lighting in the parking . It can be installed in a space near the pool , in the intervals of terrace boards in paving tiles , granite and ceramic plates , etc.
The main difference between the profile of P1908, from other types of profiles , it is massive and durable light diffusing screen, which is mounted with a special sealant ( sealant name , we strongly recommend to learn from employees MSD Light). This profile is best protects the LEDs from moisture and mechanical damage.





FAQ:

Q1. What is the length of your product?

A: the length is 0.5~3m optional

Q2. Do you have any MOQ limit ?

A: 1 psc

Q3. Is your price FOB or EXW?

A: EXW

Q4: How long the warranty of your product?

A: Yes, we offer 7 years warranty to our products.

Q5:What are your terms of payment?

A: T/T, Paypal,Western Union
