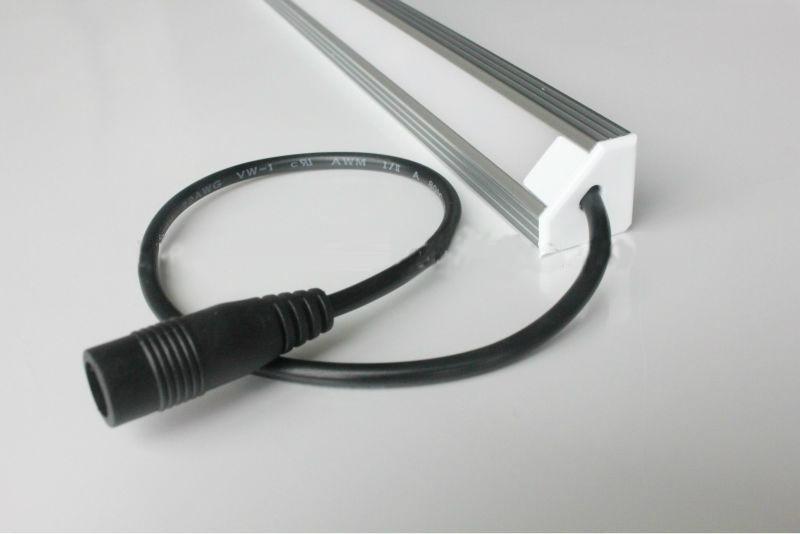

Corner Aluminium Extrusion/Channel For LED Strip

Product Description

Remark:

1 meter includes:

1meter Aluminum + 1meter diffuser + 2 PCS end cap + 2 PCS fix clip + 2 PCS screw

(1) Aluminum

Material: 6063 T5 aircraft Aluminum + Surface treatment:anodized

Size: W 19mm * H 19mm* L 0.5-3 meters optional

Suit for LED strip width:1 x LED strip max11.2mm

(2) Diffuser (Anti-UV)

Diffuser material :  PC

Lens : transparent ,diffused, milk optional

Light Transmission :  transparent (92%)   diffised (88%)    milky(85%)

(3) End caps( material ): plastic ( grey)

(4) Fix clips /mounting bracket ( material ):metal

Install

Install quickly

1.Slid PC cover from profile's one side into another side.

2.This Aluminum housing comes with  fixing clips. Simply install it  by fixing clips+screws+glue and quickly to be mounted in the corner.

Application

Application for  all types of grooves, inputs or surface edges.

FAQ

(1) Length : If I want special length longer than max length(3 metres),Can you do  that ?

      Yes ,we can .But the MOQ is 500 pcs.

(2) If I want black color ?

      Yes,customized requirement will be welcome.

 (3) Do you have any MOQ limit?

      Yes,MOQ is 10 pcs.

(4) Is it OK to print my logo on the products?

      Yes,pls tell us before production.

(5) Are you offer free sample?

      Yes,we do.The length is 0.5-1 metres.

(6) How long is the delivery time?

      Delivery time is 5-7 days.
