| Model: | TMS |
|---|---|
| Brand: | TMS |
| Origin: | Made In China |
| Category: | Textile & Leather / Fabrics / Cotton Fabrics |
| Label: | Digtal Cutter , single Cutting Machi , Textile Fabric Cutti |
| Price: |
US $19000
/ SET
|
| Min. Order: | 1 SET |
| Live Chat: | Last Online:17 Nov, 2021 |
Product Description:
TM digital flatbed cutting system supply the best solution to make sampling and short-run production in variety of industries , which equipped with variety of knives and pens, meets different materials' cutting.
It can realize high speed, high precision full cutting, half cutting and punching. can connect with other software well with our powerful data converting software, and complete the transition from traditional manual sampling to advanced high speed and precision production mode, and meets the different cutting needs of customers.
Application : Sign & Graphic, Packaging, Automotive, Furniture, Composites, Gasket, Textile, etc.
Advantage:
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.2. The high precision AOL CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of JWEI cnc oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. The high precision AOL CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
|
Technical Parameter: |
Applibale Material/Maximum Cutting Thickness | ||||||||||||
| Model:TMS-2516 | cutting progress/repeat:0.1mm | Typical Industrial Application | fashion and apparel, automotive, and furniture ,leather bag ,as well,as other industries | ||||||||||
| Cutting area: 2500mm*1600mm | materials fixing method: vacuum absorption | ||||||||||||
| Cutting thickness: 100mm(according to different materials)
|
transport port : PCI data line | Applicable Materials | Woven fabric, knitted fabric, leather, PVC plastic, sponge composite fabric, fiber composites | ||||||||||
| rotating speed : 4500RPM motor 80w | drive system : import servo | ||||||||||||
| vibration knife speed : 11500RPM motor 80w | working voltage : Host 220v+10% 50HZ 380V+10% 50HZ 9KW Pump | ||||||||||||
| Machine Consumables: | Different Tools - optional (Quotation valid for one option only) | ||||||||||||
| Consumables name | Quantity | Cost(USD) | Stock Yearly Recommended | ||||||||||
| round knife (optional) | 1set | 20.00/pc | 15 pieces | ||||||||||
| straight knife (optional) | 1set | 12.00/pc | 15 pieces | ||||||||||
| V-Notch cutter (optional) | 1pc | 30.00/pc | 15 pieces | ||||||||||
| Remark:The above data are tested under on normal machine conditions,working 8hours/day. | |||||||||||||
|

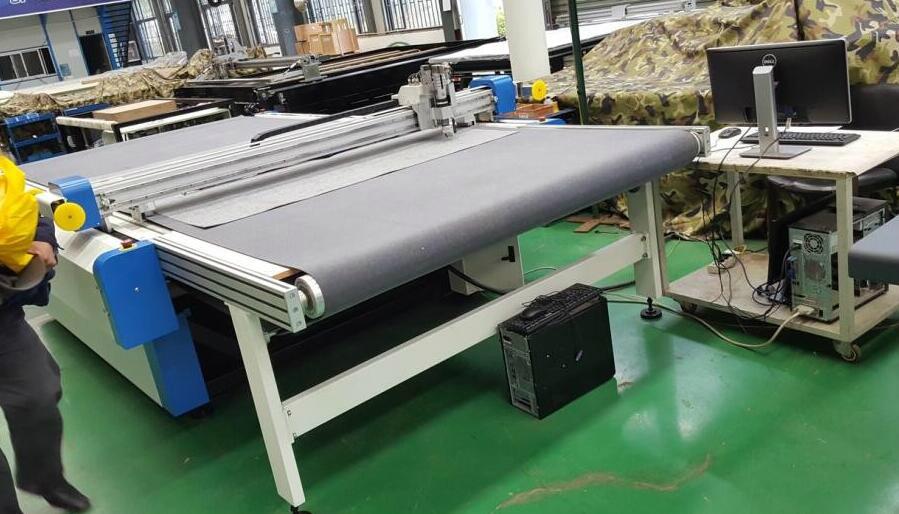

Machine Features: 1. Continous conveyor table enables materials cutting without stop, no limit for fabric length
|
|||||||||||||
Video of Auto feeding digital cutting machine :
https://youtu.be/DEsBMQ8Icoo
https://youtu.be/Ggxw_tb1Sgc
https://youtu.be/HnPmskfTlOg
https://youtu.be/1SpFHHbjg3E
| Payment Terms: | TT/LC |
|---|---|
