Universal joint cardan shaft for industrial machinery

Model:SWC
Brand:Huading
Origin:Made In China
Category:Industrial Supplies / Machinery / Transmission
Label:cardan shaft , universal joint , universal coupling
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Jingjiang Huading Machinery Manufacturing Co., Ltd

Free MemberJiang Su - China
Live Chat:
点击这里给我发消息Last Online:07 Nov, 2022

Product Description

SWC cardan shaft
Cardan shaft
is a mechanical component for transmitting torque and rotation, usually used to connect driving motor and operation machines that cannot be connected directly because of distance or the need to allow for relative movement between them.

Technical Data

       NO
  D
mm

  Tn
kN.m

   Tf
kN.m

  β
               Size         Rotational                               inertia
                kg.m2
                  M
                 kg
LS
mm
Lmin D3 Lm Lmin Increase 100mm Lmin Increase  100mm
SWC180BF 180 20 10 ≤25 100 810 114 110 0.267 0.0070 80 2.8
SWC225BF 225 40 20 ≤15 140 920 152 120 0.778 0.0234 138 4.9
SWC250BF 250 63 31.5 ≤15 140 1035 168 140 1.445 0.0277 196 5.3
SWC285BF 285 90 45 ≤15 140 1190 194 160 2.873 0.0510 295 6.3
SWC315BF 315 125 63 ≤15 140 1315 219 180 5.094 0.0795 428 8.0
SWC350BF 350 180 90 ≤15 150 1410 267 194 9.195 0.2219 632 15.0
SWC390BF 390 250 125 ≤15 170 1590 267 215 16.62 0.2219 817 15.0
SWC440BF 440 355 180 ≤15 190 1875 325 260 28.24 0.4744 1290 21.7
SWC490BF 490 500 250 ≤15 190 1985 325 270 46.33 0.4744 1631 21.7
SWC550BF 550 710 355 ≤15 240 2300 426 305 86.98 1.3570 2567 34.0
SWC620BF 620 1000 500 ≤15 240 2500 426 340 147.50 1.357 3267 34.0

Huading Cardan Universal Shaft Features:

1. We offer over 1000 different spare parts for a a wide range of rolling mill, paper machine, textile machine, mining machine, crane, pipe welding machine and other heavy duty machinery .

2.Elastomer connecting in the middle


3.Can absorb vibration, compensates for radial, axial and angular deviation

4.Oil resistance and electrical insulation

5.Have the same characteristic of clockwise and anticlockwise rotation

Cardan Shaft Types
We can supply you SWP, SWC, WSD, WS universal coupling as following:

Welded shaft type with length compensation / expansion joint

Short type with length compensation / expansion joint

Short type without length compensation / expansion joint

Long type without length compensation / expansion joint

Double flange with length compensation / expansion joint

Long type with big length compensation / big expansion joint

Super Short type with length compensation / expansion joint
Our Company
Jingjiang Huading Machinery Manufacturing Co., Ltd. Is a high-tech enterprise specializing in the design and manufacture of various types of coupling. There are 86 employees in our company, including two senior engineers and no fewer than 20 mechanical design and manufacture, heat treatment, welding and other professionals. Advanced and reasonable process, complete detection means. We company actively introduce foreign advanced technology and equipment, on the basis of the condition, we make full use of the advantage and do more research and innovation. Strict to high quality and operate strictly in accordance with the ISO9000 quality certification system standard mode.

The leading products of the company are mainly universal coupling, gear coupling, flexible coupling, rigid coupling and other series of dozens of thousands of specifications coupling, widely used in metallurgy, mining, lifting transport, petroleum chemical industry, papermaking, pharmaceutical, textile, printing and dyeing, ships, locomotives and equipment, longitudinal welded pipe cut, Kaiping, straightening and other industries, it provide strong support of technology and equipment for the localization of imported domestic numerous couplings, won the praise of clients.

Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

Products List

Transmission Machinery Parts Name Model
universal coupling WS  WSD  WSP
cardan shaft SWC  SWP  SWZ
tooth coupling CL  CLZ  GCLD  GIICL  GICL  NGCL  GGCL PGCLK
disc coupling JMI   JMIJ   JMII    JMIIJ
high flexible coupling LM
chain coupling GL
jaw coupling LT
grid coupling JS



Welcome to customize products from our factory and pls send us more details about your purchasing.
Thank you for your time and attention.


Payment Terms:T/T

Product Image

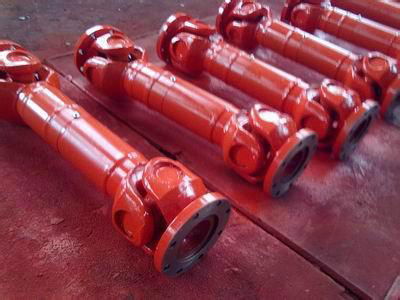

Universal joint cardan shaft for industrial machinery 1
