| Model: | - |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | CNC PART , cnc , precision parts |
| Price: |
-
|
| Min. Order: | 50 pc |
| Live Chat: | Last Online:09 Nov, 2017 |
|
Name |

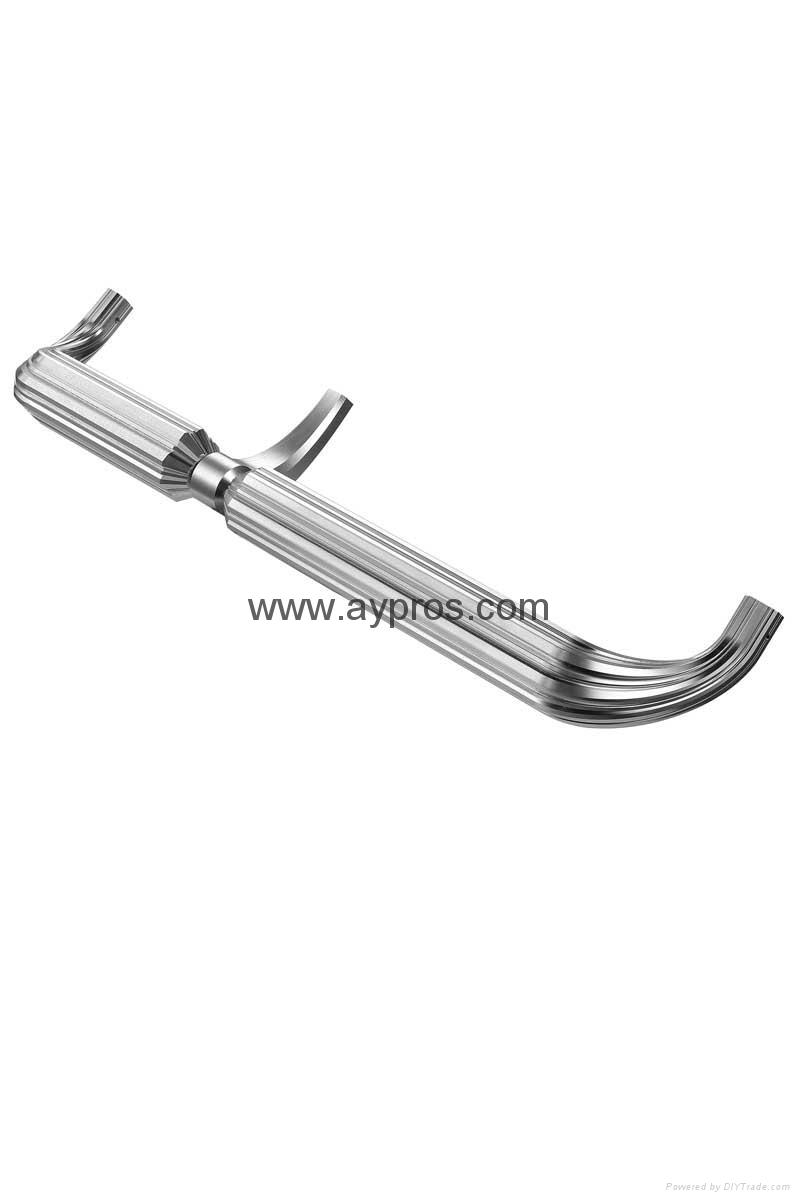

Aluminum door handle for 5 star hotels |
|
Material |
7075 Aluminum Alloy |
|
Dimension |
300x80x105mm (11.8”x3.15”x4.13”) |
|
Surface treatment |
Super-finishing, deburr & scratches free |
|
Tolerance |
contour accuracy within 0.05mm (0.002”), bore diameter within 0.015mm |
|
Equipment |
Hardinge 5 Axis CNC center |
|
Special cutting tools |
R0.2mm (0.008”) ball nose cutter |
|
Challenges |
Finished with only 2 set-ups, Super-finishing to generate a very flat, smooth surface without sign of tool marks. Extremely small tool is applied to sharpen grooves and edges. |
|
Feature |
The lever handle produced a 87° curve, 0.2mm(0.008”) ball nose milling & chamfering for perpendicular grooves. Threaded hole M8X1.25mm for extremely tight tolerance that enable the two fit into each other. |
|
Hardness |
HB 340 |
|
Industry |
Commercial |
| Payment Terms: | TT |
|---|---|
