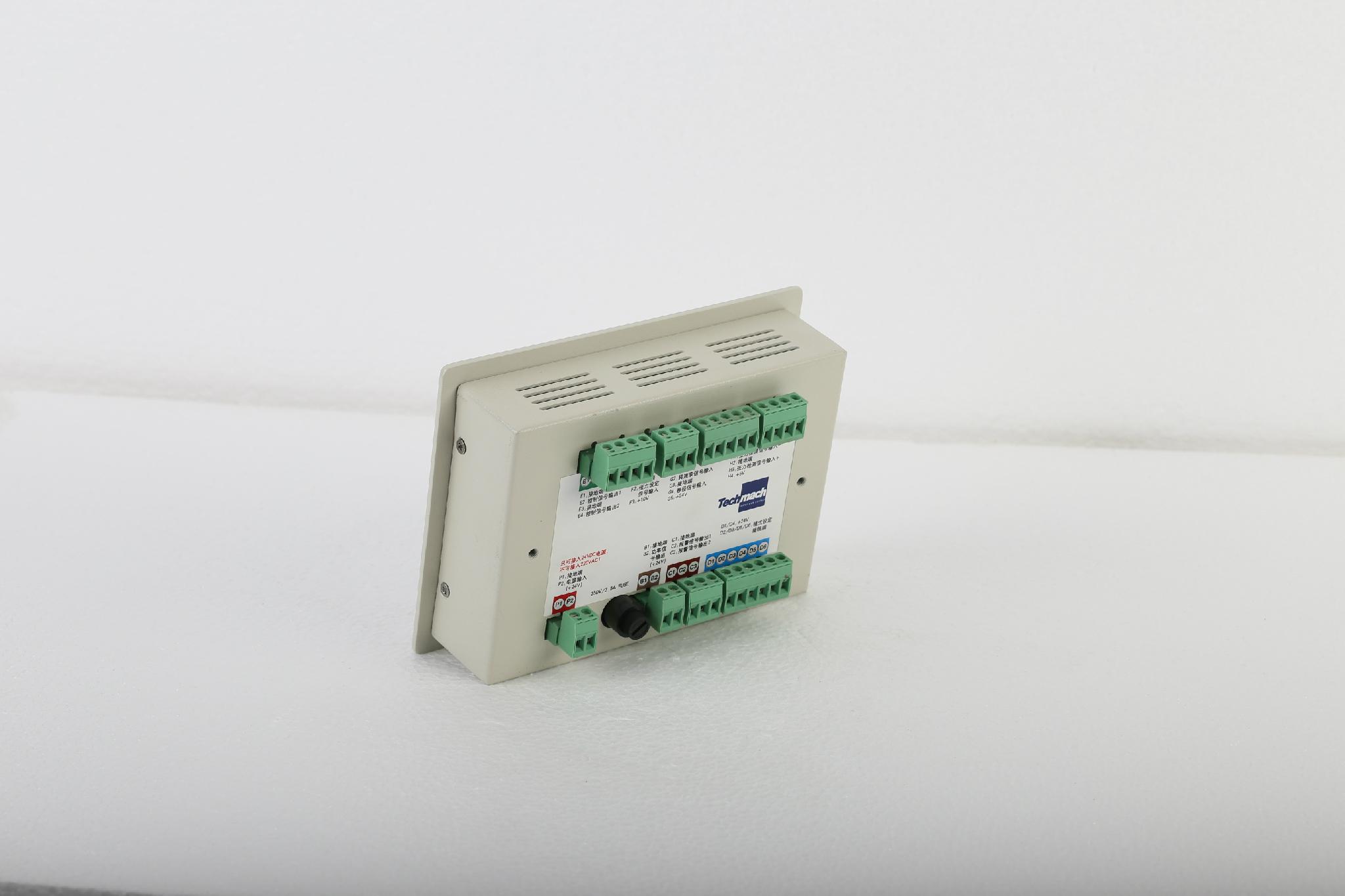

The DTC-11 All-Digital Tension Controller utilizes the latest digital technology to access all types of signals including tension detection signals, floating roller signals, and diameter position signals. The input signals via a patented PID operation output to the AC and DC motor, pneumatic brake / clutch, magnetic brake / clutch, and other various types of actuators for tension control.

The DTC-11 automatic tension controller can work in open loop or closed loop control mode, widely used in the unwinding and the middle of the process, provide the perfect solution for tension control.The controller's operation panel cannot only provide for a variety of operations and settings, but also can connect PLC or computer, making the operation more convenient and fast.

Main Fucntions:

1、The use of artificial intelligence technology, can be compatible with almost all the tension detector in the market.

2、Floating roller tension control.

3、The roll diameter calculation mode.

4、4A power output, no external power amplifier, directly connect magnetic brake, clutch.

5、Unwinding with a buffer start mode.

6、Winding with inertia compensation mode and taper control mode.

7、easily store the relevant control parameters.

8、Multi-language options: English, French, German, Italian.

Performance parameter table：

Input voltage：24VDC                                    Taper control：0~100%

Tension detector excitation voltage output：10VDC                System accuracy error：<1%

Control signal output：-10～+10VDC or 0～10mA                  Ambient temperature:0℃～50℃

PWM output:24VDC or 4A                                  Weight: 0.9kg
