OBDBEST CR-100 OBDII EOBD Code Read Scanner

ID NO.：CTC118

CR-100 uses the latest ARM processor system frame with Portable universal auto diagnostic code reader equipment that researched by the OBDBEST electronic CO. LTD which has devoted itself to auto electronic research and development  for many years, also, it is the high-tech enterprise, with its own brand-- OBDBEST. Swift response, a 3.2" full color LCD screen, Gorgeous vivid, Streamlining design, easy to use, humanized menu, three background subject choices according to the environment and the strength of the light. It will automatically adjust the backlit, it is convenient for the users to use it in the car when the light is not strong.

Features

Diagnostic function.

Read dynamic data stream

Readiness status test

Read current DTCs

O2 sensor detection test

Read vehicle information

Read on-boad systems or components control

MIL Inicator

Search freeze frame data

Clear DTCs

Read pending DTCs

Tested data playback

Read permanent DTCs

Record, Save & Playback Live data up to 8 hours!

Function test

Vehicle fuel consumption test

Vehicle acceleration test.

Oxygen sensor derection test

OBDII & EOBDII & CAN BUS

Technical parameter

Screen：3.2,320*240 colorful LCD screen.

Input voltage range： 9 ~ 18V

Working current： typical value100mA  12V

Typical consumption：<1.2W

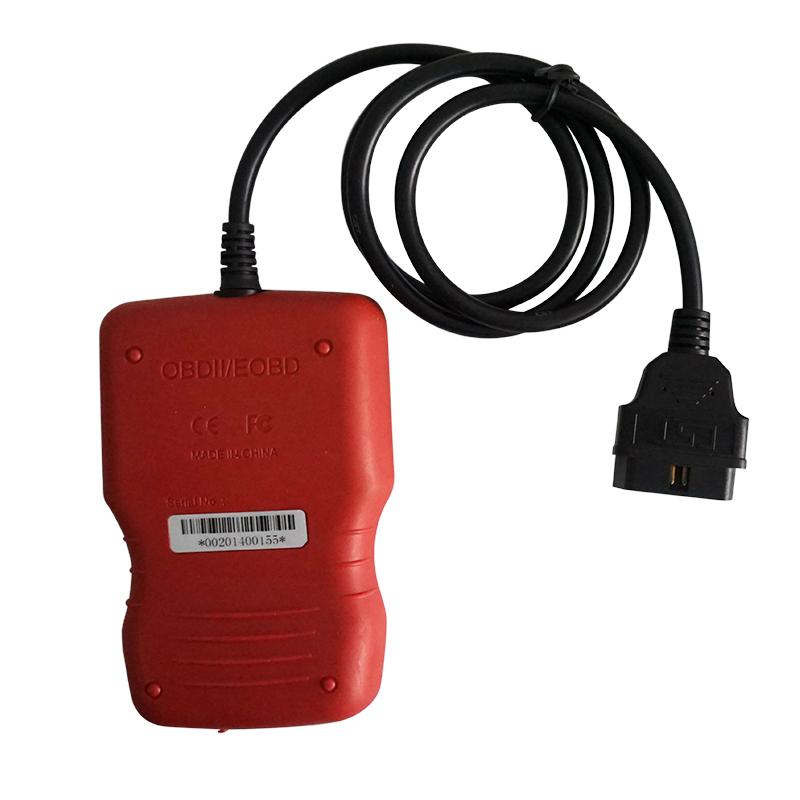

Wiring Connected way：standard 16pin diagnostic port.

Working temperature： 0 °C ~ 50 °C

Storage temperature：-20 °C ~ 70 °C @ RH 60%

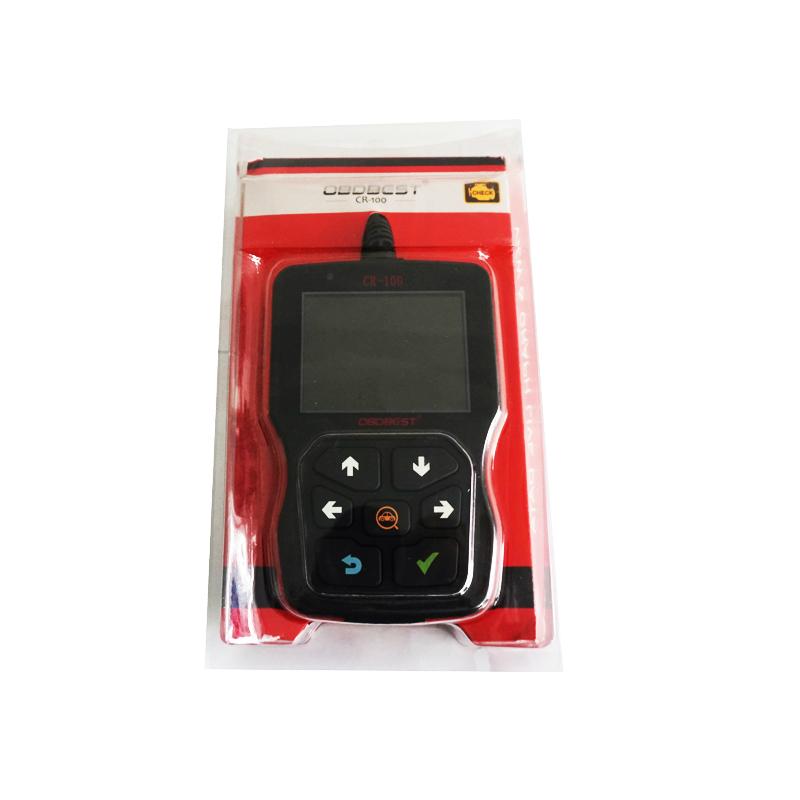

Package

1pc*CR-100 main unit

1pc*USB cable

1pc*User Manual
