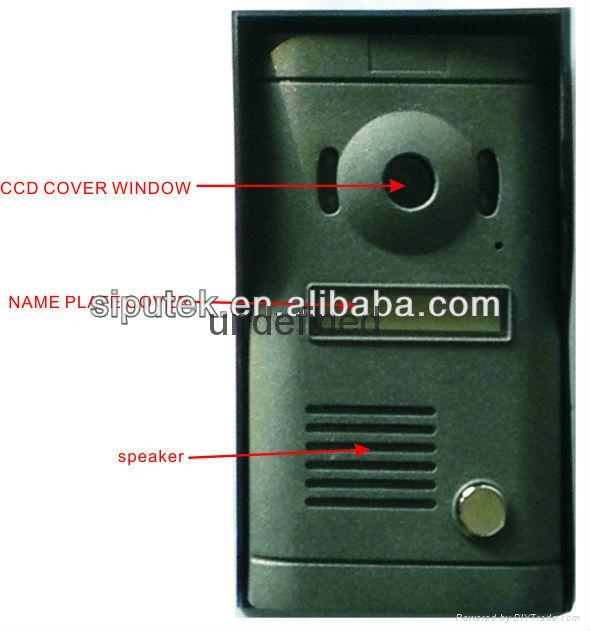

SIPO-015:

● Metal case

● Flush mounting installation

● Maximum Wiring Distance: 50m / 165 feet( 22AWG, 0.65mm 4 wire )

● Wiring: 4 wires

● Communications ways: Synchronous Communications

● Scene Illumination: 0.1 Lux ( 300mm from the camera )

● Scanning frequency: Horizontal: 15.75KHZ Vertical: 60Hz

● Image Angular: Horizontal 68º vertical: 55º

● Angular Adjust: Left: 13º Right: 13º Up:4º Down: 4º

● Ambient Humidity: 45% ~ 95%

● Ambient Temperature: -10℃±40℃

● Video Signal: 1Vp-p 75Ω, PAL or NTSC

● Power sources: DC 12V

● Product Dimension: 100(W) * 20(H) * 170(L) MM

● N.W.: 0.48kg

SIPO-832:

Brief Description: Video Door Phone with 100 to 220V AC Power Source, Supports Up to 2 Door Cameras

Main Function:
● Monitoring & talk with a visitor, Door lock release
● Monitoring an entrance
● Up to 2 door cameras
● Supports up to 2 door cameras
● Interphone
● 823 connectable
● Guard station unit

Specifications & Features:
Features:
● 823(2) has Upgraded with new design and new ability which is more supurb than 823
● 2+2+2
2 cameras + 2 monitors + 2 interphones connectable
● Wall surface mounted type
● Easy installation after mounting a bracket onto the wall

Spec:
● Power Source: AC100 ~ 220V, 50 / 60 Hz
● System type: Stand-alone
● Mounting type: Wall surface monted type
● Display: 10.16cm (4'' ) B/W CRT
● Wiring: Camera; 4 wires Interphone, 4 wires Guard station unit; 2 wires
● Dimension: Excluding handset: 189* 208*53mm
Including handset: 189*208*56mm
● On-screen duration: Talk, 60sec, Standby; 30 sec
● Distance: 50m( ¢ 0.65), 28m ( ¢ 0.5)
● Temperature: 0(℃)~ 40 (℃)
