| Model: | U-90DB |
|---|---|
| Brand: | laptop adapter |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Power Supply & Distribution / Power Adaptor |
| Label: | laptop adapter , 90w universal laptop , universal adapter |
| Price: |
US $11.08
/ pc
|
| Min. Order: | 50 pc |
| Live Chat: | Last Online:10 Jul, 2017 |
90W Power protection and short circuit protection laptop travel adapter
Product Description
Features:
--Compatible with 15 - 20 volts laptop with wattage requirement up to 90 watts.
--Double chipset innovation provides constant true voltage automatically with low consumption.
--Built with input/ output overvoltage protection,input/output overcurrent protection, over temperature protection, over power
protection and short circuit protection.
--Innovative connector - designs provide required voltages and polarity automatically.
--More than 35 laptop connectors are optional to match most of laptops.
--5.0V/ 2.1A USB ( Max 10.5W ) output fit for Cell phones, Tablet PC, MP3, MP4, PSP, Digital camera, GPS, etc.
--LCD show the output voltage and working information.
Specification:
| Product name | Universal Laptop Adapter |
| Color | Black / White |
| Power | 90W |
| Input | AC 100 ~ 240V 2A ( 50~60Hz ) |
| USB Output | 5.0V/2.1A (10.5W Max) |
| Output | 15V / 16V / 16.5V / 18.5V / 19V / 19.5V / 20V (90W Max) |
| Dimension | 133*58*31mm ( L*W*H ) |
| Net Weight | 278G |
| Packing | Blister+Cardboard/ Customized accepted |
Pictures:

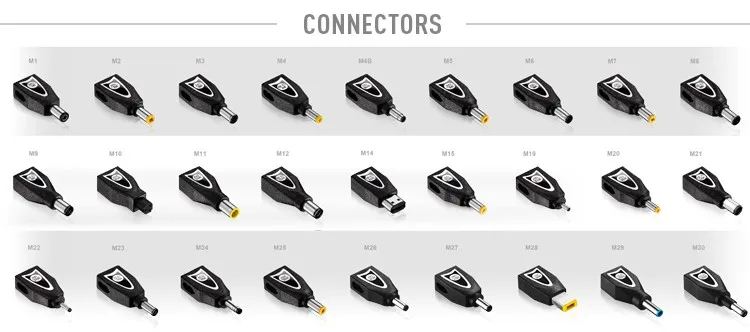

| TIP NO. | OUTPUT | TIP SIZE | FIT MACHINE MODELS |
| M1 | 15V (90W Max) | 6.3*3.0*12mm | Toshiba:15V/3A,15V/4A,15V/5A,15V/6A;NEC:15V/6A etc. |
| M2 | 16V (90W Max) | 5.5*2.5*12mm | IBM,Lenovo: 16V/3.36A,16V/3.5A,16V/4.5A etc. |
| M3 | 16V (90W Max) | 6.5*4.4*10mm | Fujitsu: 16V/3.36A,16V/3.75A;Sony:16V/3.42A,16V/3.75A,16V/4A etc. |
| M4 | 18.5V (90W Max) | 4.8*1.7*12mm | HP/Compaq:18.5V/1.1A,18.5V/2.7A,18.5V/3.5A,18.5V/3.8A,18.5V/4.74A,18.5V/4.9A etc. |
| M4B | 19V(90W Max) | 4.8*1.7*12mm Bullet | HP/Compaq: 18.5V/2.1A,18.5V/4.9A,19V/4.74A;LG:18.5V 3.5A etc. |
| M5 | 19V (90W Max) | 5.5*2.5*12mm | Acer: 19V/3.42A,19V/4.74A; Asus: 19V/3.42A,19V/4.74A;Detla:19V/2.64A,19V/3.16A,19V/3.42A,19V/4.74A; Gateway:19V/2.64A,19V/3.16A,19V/3.42A,19V/4.74A;Hasee: 19V/3.42A,19V/4.74A;IBM: 19V/3.16A,19V/4.2A NEC: 19V/4.74A;Toshiba:19V/3.42A,19V/3.95A,19V/4.74A; Lenovo:19V/4.74A;Liteon:19V/3.16A,19V/3.42A,19V/3.95A,19V/4.74A etc. |
| M6 | 19V (90W Max) | 5.5*3.0*12mm | Samsung: 19V/2.1A,19V/3.16A,19V/4.74A etc. |
| M7 | 19V (90W Max) | 5.5*2.1*12mm | Acer:19V/3.16A,19V/3.42A,19V/4.74A;Liteon:19V/3.16A,19V/3.42A,19V/4.74A;NEC: 19V/3.16A etc. |
| M8 | 19.5V (90W Max) | 6.5*4.4*10mm | Sony: 19.5V/2.15A,19.5V/3A,19.5V/3.9A,19.5V/4.1A,19.5V/4.74A, 19.5V/5.13A etc. |
| M9 | 19.5V (90W Max) | 7.4*5.0*12mm | Dell: 19.5V/3.34A,19.5V/4.62A etc. |
| M10 | 20V (90W Max) | 3 Holes | Dell: 20V/3.5A,20V/4.5A etc. |
| M11 | 20V (90W Max) | 7.9*5.4*12mm | IBM,Lenovo: 20V/3.25A,20V/4.5A etc. |
| M12 | 18.5V (90W Max) | 7.4*5.0*12mm | HP/Compaq: 18.5V/3.5A,18.5V/4.9A,18.5V/6.5A,19V/4.74A etc. |
| M14 | 18.5V(90W Max) | OVAL | HP/Compaq: 18.5V/4.9A etc. |
| M15 | 19V(90W Max) | 5.5*1.7*12mm | Acer: 19V/3.16A,19V/3.42A,19V/4.74A;Liteon:19V/3.16A,19V/3.42A,19V/4.74A etc. |
| M16 | 16.5V(90W Max) | Magsafe | Apple Macbook Pro: 16.5V/3.65A. |
| M17 | 18.5V(90W Max) | Magsafe | Apple Macbook Pro: 18.5V/4.6A. |
| M18 | 14.5V(90W Max) | Magsafe | Apple Macbook Air: 14.5V /3.1A. |
| M16B | 16.5V(90W Max) | Magsafe 2 | Apple Macbook Pro Retina:16.5V/3.65A. |
| M17B | 20V(90W Max) | Magsafe 2 | Apple Macbook Pro Retina: 20V/4.25A. |
| M18B | 14.85V(90W Max) | Magsafe 2 | Apple New Macbook Air: 14.85V/3.05A. |
| M16C | 16.5V(90W Max) | Magsafe | Apple Old Macbook Pro: 16.5V/3.65A. |
| M17C | 18.5V(90W Max) | Magsafe | Apple Old Macbook Pro: 18.5V/4.6A. |
| M19 | 19V(90W Max) | 2.5*0.7*10mm | Asus: 19V/2.1A etc. |
| M20 | 19V(90W Max) | 4.0*1.7*12mm | HP: 19V/1.58A etc. |
| M21 | 19.5V(90W Max) | Octagonal / Chip inside | Dell: 19.5V3.34A etc. |
| M22 | 19V(90W Max) | 3.0*1.0*10mm | Samsung: 19V/2.1A etc. |
| M23 | 19.5V(90W Max) | 4.5*3.0*12mm Chip inside | Dell: 19.5V/2.31A etc. |
| M24 | 19.5V(90W Max) | 4.0*1.7*12mm Bullet | HP: 19.5V/2.05A etc. |
| M25 | 20V(90W Max) | 5.5*2.5*12mm | Lenovo: 20V/2A,20V/3.25A,20V/4.5A etc. |
| M26 | 19V(90W Max) | 4.0*1.35*10mm | Asus: 19V/3.42A; 19V/2.37A; 19V/4.74A etc. |
| M27 | 19V(90W Max) | 4.5*3.0*10mm | Asus: 19V/3.42A; 19V/4.74A etc. |
| M28 | 20V(90W Max) | Square 11*4.5*11mm | Lenovo: 20V/2.25A ; 20V/3.25A; 20V/4.5A etc. |
| M29 | 19.5V(90W Max) | 4.5*3.0*12mm Blue tip | HP Envy: 19.5V/4.62A; 19.5V/2.31A etc. |
| M30 | 19.5V(90W Max) | 4.8*1.7*10mm Long tip | HP Envy: 19.5V/3.33A ;19.5V/4.7A etc. |
Method of utilization for Universal Laptop Adapter:
- Confirm the model of your notebook computer.
- Check the input voltage as shown on the bottom panel of your notebook computer or contact the manufacturer of your notebook
computer for respective information
computer for respective information.
- Select the DC Connector that is compatible with your notebook computer and connect the DC connector to the DC Power cord.
- Connect the adapter to any power socket with the AC power Cord. The Power LED will go on.
- Connect the DC power cord to your notebook computer.Notebook computer will then be powered.
Caution of Universal Laptop Adapter:
- For use with information technology equiment only. This device may not cause harmful interference. Indoor use only, avoid using
this product near wet or high temperature areas.
- Keep this product away from children and infants.
- Do not modify or disassemble this product.
