| Model: | BD-326 |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | 4CH DVR , D1 CAR DVR , 4CH MDVR |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:30 Jun, 2017 |
This is an inexpensive type 4 channel Mobile DVR works with aviation connector, support 1pcs Max. 128GB sd card memory. This DVR support GPS and 3G also.
Features:
> Max. 128GB sd card used
> 4CH D1 @ 100f/s
> GPS,3G available
> Aviation connector
> 1.5-2GB for 1 hour recording
> 3G/GPS function available

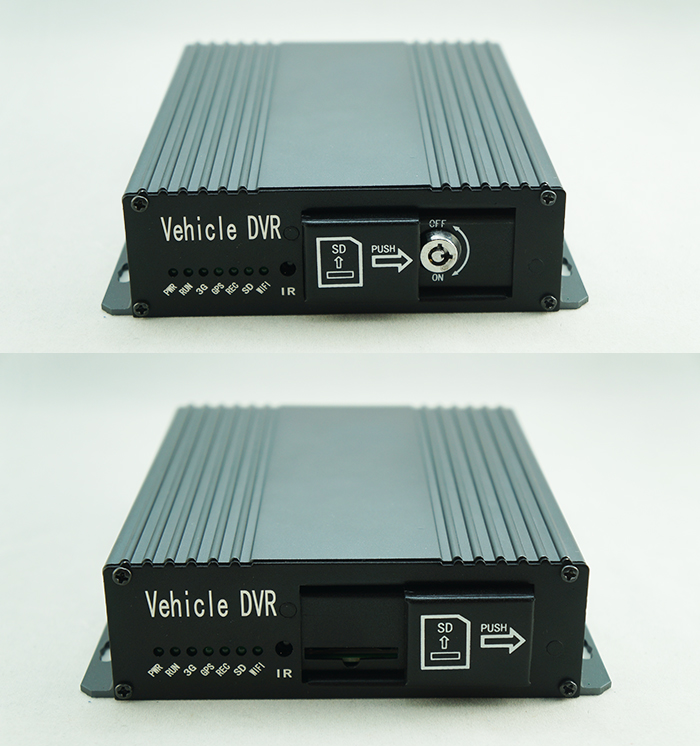

DVR front panel with lockable case, support 1 SD CARD Max. 128GB

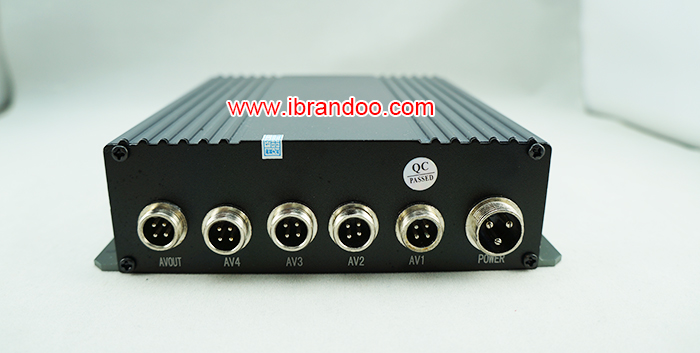

Rear panel, aviation connector

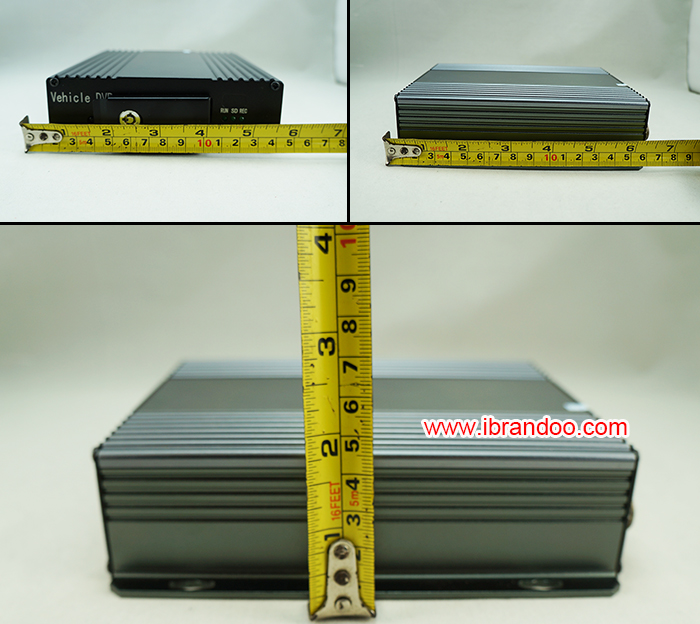

Car DVR dimension: 15x16x4.5cm (WxLxH)

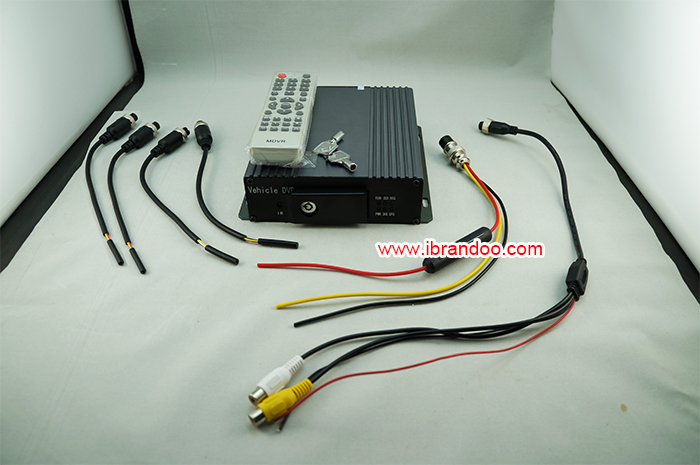

DVR and accessories: remote controller 1pcs, video input cable 4pcs, video output cable 1pcs, power cable 1pcs,DVR key 2pcs.

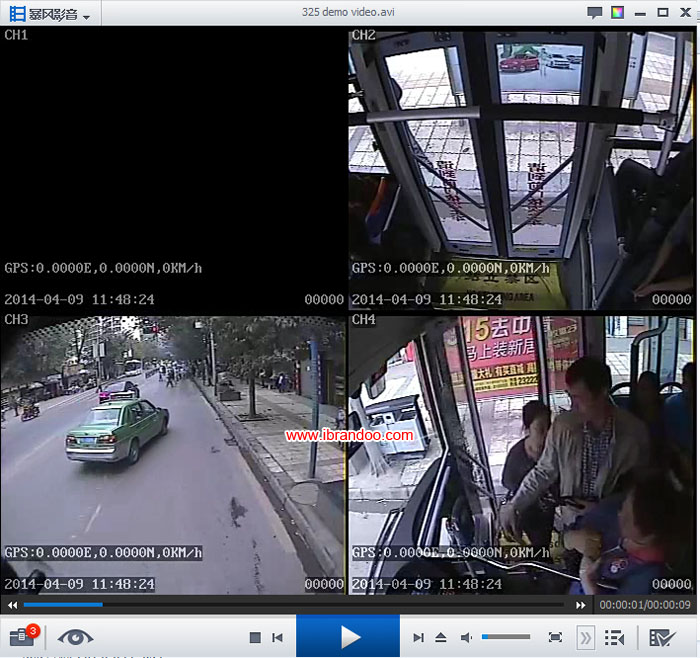

Details on video record, support GPS data, time and date, also including car serial number

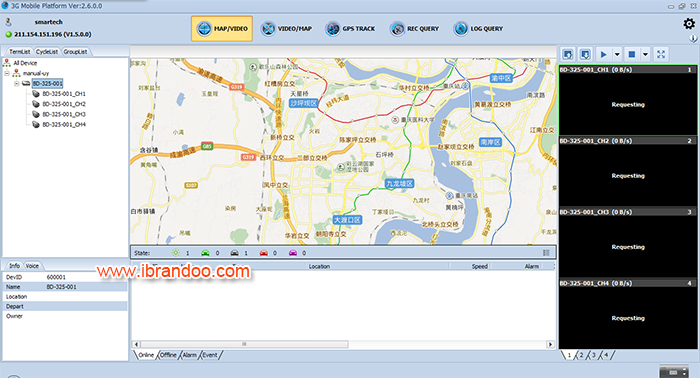

3G CMS client interface
Specifications:
|
Items |
Parameters |
Specifications |
|
System |
Language |
Chinese/English/Russian (OEM) |
|
Operation Menu |
Graphical User interface（OSD menu） |
|
|
Password |
Users Password/ Administrator Password |
|
|
Video |
Video input |
4-CH video input 1.0Vp-p，75Ω |
|
Video output |
1-CH video COMPOSITE output 1.0Vp-p，75Ω |
|
|
Video Display |
1 channel or synchronous 4 channels |
|
|
Video Singal |
PAL、NTSC |
|
|
Video Compression |
H.264 Main profile， 75fps D1/s |
|
|
Audio |
Audio input |
4-ch Audio input |
|
Audio output |
1-ch Audio output |
|
|
Recording mode |
Audio & Video sync Recording |
|
|
Image processing & storage
|
Video format |
CIF/HD1/D1 Optional |
|
Video stream Standard |
ISO14496-10 |
|
|
Video bit rate |
CIF: 1536Kbps ~ 128Kbps，8 levels optional. Highest:1 level HD1: 2048Kbps ~ 380Kbps，8 levels optional. Highest:1 level D1: 2048Kbps ~ 400Kbps，8 levels optional. Highest:1 level |
|
|
Audio Bit rate |
8KB/s |
|
|
Storage |
Support 1pcs Max. 128GB sd card memory |
|
|
Alarm |
Alarm input |
NO |
|
Communication Interface |
RS232 Interface |
Support 1-RS232 interface |
|
Software |
Analysis of PC playback |
Playback Recording on PC，and analyses the vehicle recording info. |
|
Software Upgrade |
SD cards upgrade. |
|
