Description:

Fire-resistant cable refers to the cable that can keep a safe running time in the case of flame combustion.

China's national standard GB12666.6 (equivalent to IEC331) divides the fire resistance test into A, B two classes, The flame temperature of A grade is 950 ~ 1000 ℃, and the continue flaming time is 90min, B grade flame temperature is 750 ~ 800 ℃, flaming time is 90 min. In addition,tthe test specimen shall bear the rated voltage during the test.

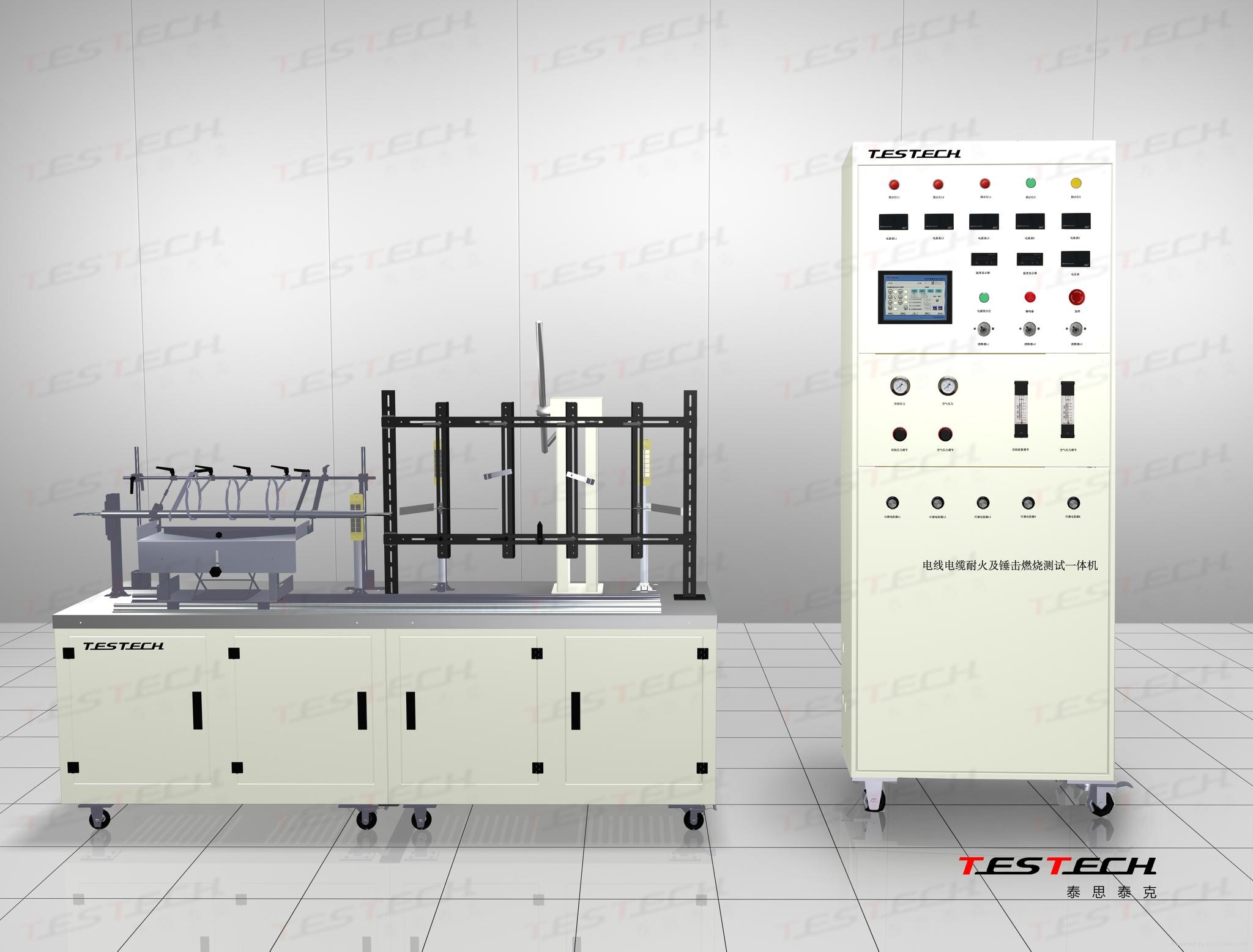

TESTECH Fire Resistance Tester is designed according to the requirements of GB/T19216.11-2003 (alternative GB12666.6) and IEC60331-11,and used to obtain the refractory characteristics of a fire resistant cable or optical cable under flame conditions.

Model:FTech-IEC60331

User’ s Experience:

1, This cabinet is made of stainless steel, anti-smoke and gas corrosion.

2, The control system is designed with a high degree of automation, automatic ignition, temperature and time digital display, convenient to observe and record, stable and reliable.

Standards

• IEC 60331 Part 11

• IEC 60331 Part 21

• GB/T 19216

Main Features:

1, All fixtures are made of stainless steel;

2, The burner is a belt type propane blowtorch with a Venturi mixer, and the burner nozzle is length 500mm, width 15mm;

3, Those burning holes are staggered into 3 rows, and the front width is 15mm, holes diameter is 1.32mm and these holes center distance is 3.2mm;

5, One end of the specimen holder is equipped with a clamp to fix the sample, and the other end is convenient for heat transfer along the longitudinal specimen;

6, The cable sample is supported by two metal rings, and the middle length of the two rings is about 300mm;

7, An inner diameter of the sample supporting metal rings is 150mm, and the cross-sectional diameter of the ring is 10 ± 2mm.

8, The position of the burner torch from burning the bottom is not less than 200mm, and not less than 300mm from the tank wall.

Combustion System:

1, Independent standard electrical control platform;

2, With intelligent detection function, when a short circuit in the sample during the test, automatic alarm and turn off the fire source.

3, Fuse current in the experimental circuit is 2A;

4, The sample is applied to power of AV 100V ~ 1000V adjustable;

5, The time can be set free for the fire, the time recommended by standards is 90min.

Device parameters:

1, Voltage: AC 380V 3-phase, 50 / 60Hz, 30A;

2, The input voltage 0 ~ 1000V; can be adjusted;

3, The breakdown current is 2A;

4, Maximum power: 5000VA;

5. Timer: 0 ~ 999min

6, The flame temperature of 0 ~ 1100 ℃ adjustable;

7, The test load current is 0.25A, can be adjusted;

Specification

1. Size: 1,600 (W) × 850 (D) × 1,650 (H) mm

2, Console size: 600 (W) × 750 (D) × 1,200 (H) mm

 3, Power: AC 380V 3-phase, 50 / 60Hz, 30A

 4. Weight: 100kg
