| Model: | SCT-C1325 |
|---|---|
| Brand: | SCT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | co2 laser cutting , 150w laser cutting , laser cutting machin |
| Price: |
US $3500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:28 Sep, 2018 |
SCT-C1325 CO2 150w laser cutting machine
Applicable material: wood, bamboo, jade, acrylic, leather, garment, marble, ceramic, paper, glass, rubber and other nonmetal material.
Applicable Industry: advertisement, arts and crafts, toys, garments, mould, package and paper industry etc.
Main Features:
1. Configure high power and quality laser tube, can work over 8000 hours.
2. U flash Disk Supported: Read files directly from U-flash disk, you can work even without PC!
3. Red Dot Pointer: Provides a visible means of determing engraving location.
4. Air Assist: Remove heat and combustible gases from the cutting surface.
5. Intuitive Control Panel: Speed, power, and more controls directly from the laser.
6. Raster/Vector Color Mapping: Change your engraving speeds and power by using color settings.
7. with function of restoring from poweroff, continuation function from break point.
8. Transmit files directly from Corel draw and Auto CAD, Photoshop, Tajima directly.
Technical parameters:
|
Model |
SCT-C1325 |
SCT-C1620 |
|
Max working area |
1300x2500mm |
1600x2000mm |
|
Laser power |
80w/100w/130w/150w |
80w/100w/130w/150w |
|
Laser type |
CO2 sealed off Glass tube |
0~100% control Freely |
|
Driving system |
Stepper motor and drivers |
Servo motor and Drivers option |
|
Working table |
Honeycomb or blade |
Honeycomb or blade |
|
Min.Character |
English 1.5x1.5mm |
English 1.5x1.5mm |
|
Resolution |
≤ 2500DPI |
≤ 2500DPI |
|
Positioning Accuracy |
±0.01 mm |
±0.01 mm |
|
Work environment |
Temperature 0-45℃ humidity 5%-95% |
Temperature 0-45℃ humidity 5%-95% |
|
Software |
RDCAM |
RDCAM |
|
Control system |
Advanced RD DSP |
Advanced RD DSP |
|
Cooling type |
Water chiller |
Water chiller |
|
Graphic format Supported |
DSF PLT BMP DXF DWG AL LAS |
DSF PLT BMP DXF DWG AL LAS |
|
Working voltage |
AC 220v 50/60hz |
AC 220v 50/60hz
|
Company introduction:
JINAN SUNRISE CNC TECHNOLOGY CO., LTD (SCT) is located in Jinan Economic Development Zone, is a specialist company dedicated to developing, studying, designing, manufacturing, and selling CNC machines, such as Fiber laser cutting machine, CNC laser engraving cutting machine, Stone CNC Router, Wood CNC Router, Advertising CNC Router, Cylinder CNC Router, Laser marking machine, CNC plasma cutting machine, CNC punching machine, CNC drilling machine etc.

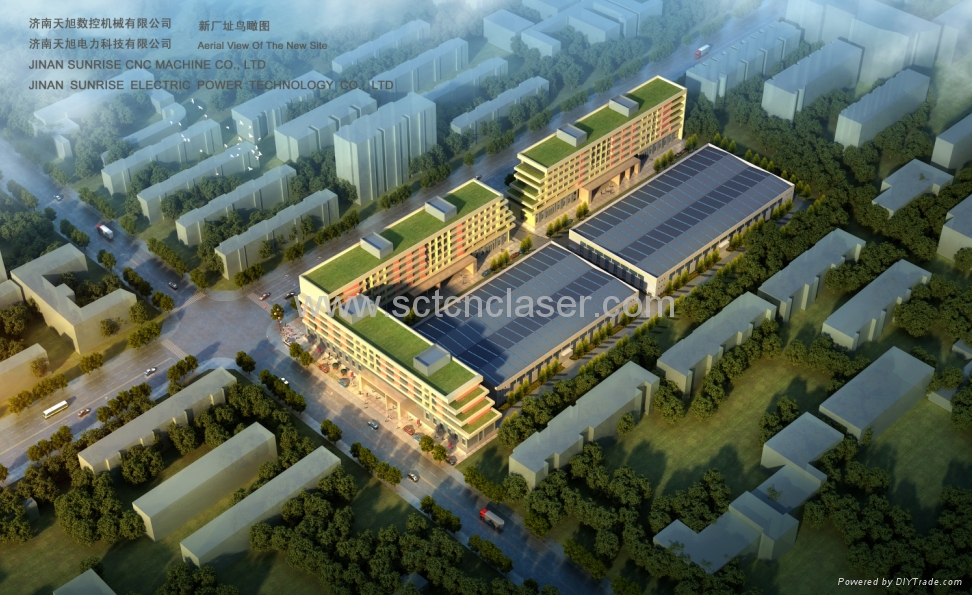

With the development of SUNRISE, now our company has occupied important position in this industry. Due to the orders and sales performance is continuously improving, in order to better development, to meet customer's demands, and to provide customers high quality equipment with the shortest time, our company have bought the new site, the area about 50,000 square meters, this will make sufficient preparations for development of our company and every customer.
After-sale service:
·Warranty 12 months (except for consumable parts)
·Whole-lifetime Free service
·Technical Support online or remote control
·Free Tutorial and training courses (in video or in factory)
·Spare Parts discount
If any inquiry or demands, please feel free to contact with us.
Email: deb@sunrisecnc.com
Mob: +86 15563350635 (wechat & whatsapp)
| Price Terms: | FOB Qingdao or Shanghai |
|---|---|
| Payment Terms: | TT / LC / DP / DA /Western Union |
| Packing: | Free-fumigation wooden case |
| Lead Time: | 5 working days |
| Standards Certificate: | CE,SGS,ISO |
