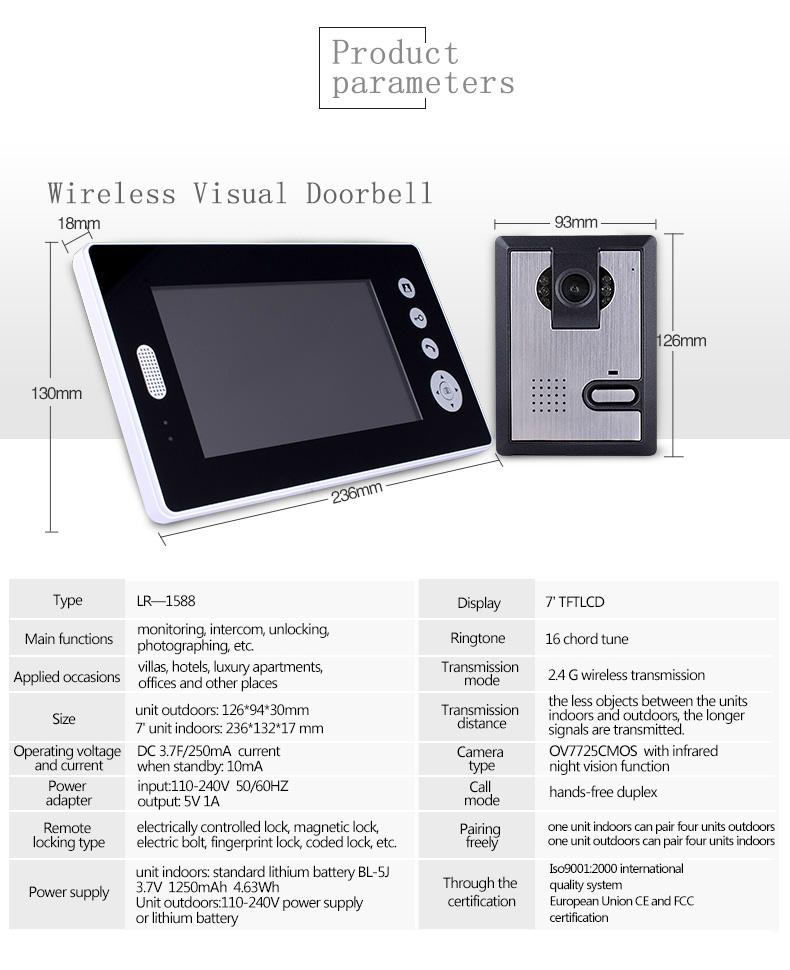

Type: LR-1588
Display: 7' TFTLCD
Main functions: monitoring, intercom, unlocking, photographing, etc.
Ringtone: 16 chord tune
Applied occasions: villas, hotels, luxury apartments, offices and other places
Transmission mode: 2.4 G wireless transmission
Size: unit outdoors: 126*94*30mm
7 inch unit indoors: 236*132*17 mm

Specifications

Production Introduction Wireless Video Door Phone LR-1588 is widely used in apartment, hotel, villas, office, building and so on. LR-1588 consists of two parts:outdoor camera and indoor monitor. the outdoor camera is easy to install, you can use the indoor monitor where the wireless signal can reach. Indoor monitor can be hanged on the wall, cabinet; and also can be placed on the desk, tea table, dining table. Camera: wide view angle camera lens, allow you to capture the video of the outside and the visitors without dead angle.

Microphone: it can transmit the visitors' voice to the unit indoors. the voices are much clearer and truer as it has high quality sounds effects.

Infrared Night vision light: 6 LED lights ensure you to identity the images of the outside and the visitors, improving the safety.

LED charging indicator: the LED turns on green when pairing code or pressing button and turns on red when low capacity.

Calling button: press the button to call the unit indoors at the same time the camera is turned on automatically.

Loudspeaker: it features high quality voice effects, making the indoor host voices heard by the outdoor clearly and gently.

Features:

1. 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 300 meters in open area, robust anti-interference;

2. Clear night vision: can capture image in low-illumination environment. this model is still very clear in 5m, while the genral vidoe door phone not clear exceed 1m.

3. Rain shield for the outdoor camera is available;

4. 7 inch Digital TFT color panel;

5. High-strength tempering glass, abrasion resistant and scratch, longer working life;

6. High Sensitivity touch keys

7. Monitor, wireless unlock, hands-free call and talk;

8. 16 chord melodies and melody volume is adjustable;

9. Date and time are showed on screen;

10. Indoor monitor store up to 100pcs pictures, pictures mark date and time;

11. Brightness and talk volume are adjustable

12. BL-5J battery of camera and monitor is replaceable and rechargeable;

13. Outdoor camera has two work modes:

1) Pl ing in the power adapter.

2) Using battery, it can works about 15 days.

14. with Wireless unlock control ,Tamper alarm function;

15. One outdoor camera supports up to 3pcs indoor monitors and vice versa;

16. the outdoor unit with the function of tamper alarm, and if you keep pressing outdoor calling key more than 5 seconds, will turn off battery battery's power, once again turn on power.
