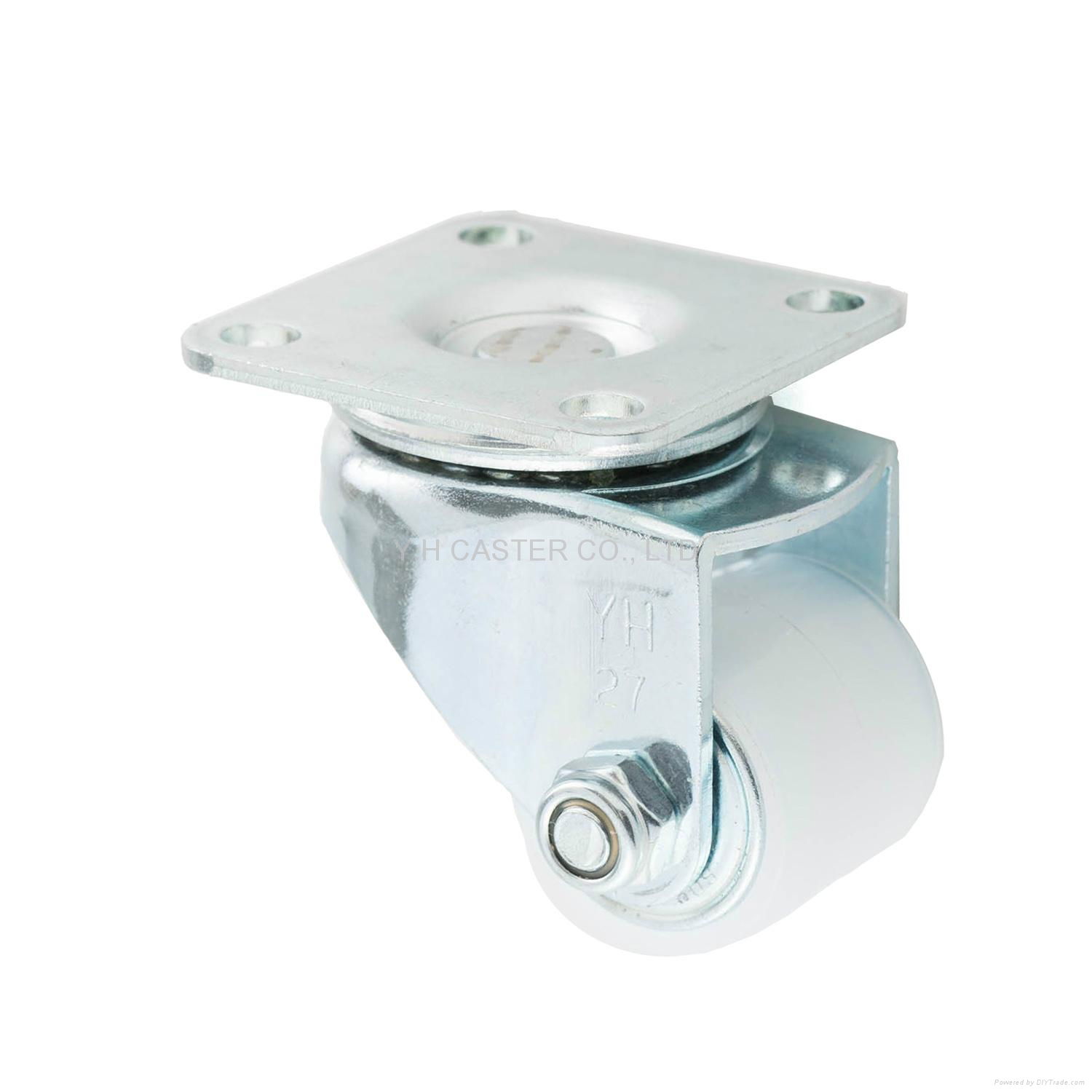

23 Series 2723 Nylon Caster
Wheel Diameter：27mm
Tread Width：23mm (0.906”)
Wheel Type：Nylon6
Moving Loading：40 KG
Type： Swivel Plate、Plate with Brake、Swivel Threaded Stem、Threaded Stem with Brake
Brake Type：Total Brake
Features：
1. 2 Bearings
2. Sturdy and durable
※ Nylon 6 ：non-toxic、grease and iron filings resistant、inelastic
|
details |
||
|

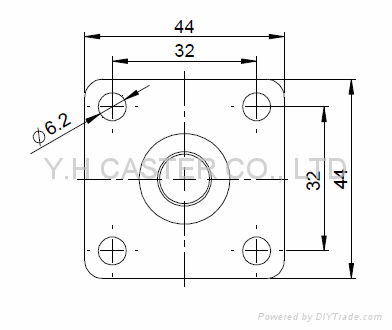

Swivel Plate |
Plate Size |
2 x 44 x 44mm |
|
Bolt Hole Spacing |
32 x 32mm |
|
|
Total Height |
59mm |
|
|
Threaded Stem |
Stem Size |
3/8” x 19mm |
Code
|
item |
code |
|
2723 Nylon Wheel (with Bearing) |
2723NPW |
|
2723 Nylon Swivel Plate |
23-2723NPW11-SW |
|
2723 Nylon Plate with Total Brake |
23-2723NPW11-TB |
|
2723 Nylon Swivel Threaded Stem (3/8”) |
23-2723NPW23-SW |
|
2723 Nylon Threaded Stem with Total Brake (3/8”) |
23-2723NPW23-TB |
