100 micron bright pure tungsten wire mesh for light filtering

Model:HY
Brand:HY
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:Tungsten wire mesh , Tungsten mesh , Tungsten wire
Price: US $1.21 / pc
Min. Order:10 pc
Inquire Now Add to Basket

Company Information

Detail

Product Description

Material Brighr pure tungsten wire
Mesh cout 2--200
Features With stable nature large resistance high melting point Resistance to high temperature of 3400 degree
Application electromagnetic shielding mesh vacuum heat treatment furnace grate RF electromagnetic shielding light filtering and used as vacuum furnace tungsten mesh heating element
Certification SGS

Feature of the tungsten wire mesh

  • Corrosion resistance.
  • Anti-acid and alkali resistance
  • Anti-high temperture.
  • Good filter performance.
  • Long using life

Application of the tungsten wire mesh

  • In acid, alkali environment conditions sieving and filtering.
  • Petroleum industry as mud mesh,.
  • Chemical fiber industry as screen mesh.
  • Plating industry as acid cleaning mesh.

Tungsten wire mesh is made of tungsten wire with purity over 99.9%. Tungsten wire mesh has very high tensile strength. It has the highest melting point of all metals even at high temperature over 1650ºC.

Among its properties are a melting point of 3410ºC, a low coefficient of thermal expansion and low vapor pressure at elevated temperatures, along with good electrical and thermal conductivity

Weave Pattern: plain weave, twill weave.

The manufaturing of tungsten wire mesh/screen has two process:

1: Tungsten wire drawing: itis accomplished by coating the wire with a graphite lubricant, heating to a red heat, and then drawing through tungsten carbide or diamond dies. The process is sometimes referred to as hot cold-working, which means that, while the wire is hot, the temperature is still below the recrystallization range. The raw material is qualified with high purity other good metallurgical properties.


2: Tungsten wire mesh weaving: the tungsten wire's diameter can be from 0.03mm to 2.0mm according to customer's requirement, meanwhile, the mesh can be from 0.2mesh/inch to 200mesh/inch. The tungsten wire mesh is finished with high quality, such as precised aperture size, mesh thickness, no defect on mesh surface, etc.

Tungsten wire mesh/Screen Specifications
Thickness: from 0.06mm to 4.0mm,
Mesh density: from 0.2mesh/inch to 200 mesh/inch.
All meshes will be made according to your specified requirements.

Packaging and shipping details:



Inspection
Every tungsten and molybdenum product is under strict nondestructive test and density detection. We offer material composition sheet and examination report of the products.



First, packaging with moisture-proof paper

Second, packaging with kraft paper

Third, packaging with foam plastics in all side of plywood case.

Finally packing products in plywood case


Product Image

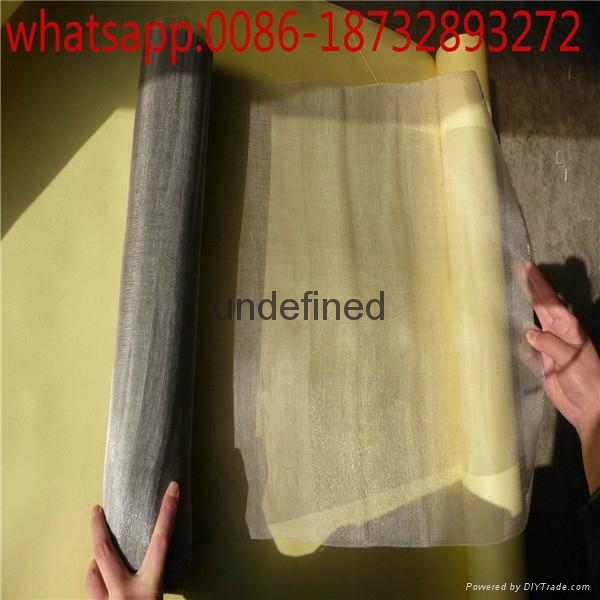

100 micron bright pure tungsten wire mesh for light filtering 1
Img 1
100 micron bright pure tungsten wire mesh for light filtering 2
Img 2
100 micron bright pure tungsten wire mesh for light filtering 3
Img 3
100 micron bright pure tungsten wire mesh for light filtering 4
Img 4
100 micron bright pure tungsten wire mesh for light filtering 5
Img 5
