Germany Rexroth Siemns Configuration Paper Shopping Bag Making Machine

Model:RZFD-330
Brand:MTED
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:shopping bag machine , Germany Rexroth , paper shopping bag
Price: US $120000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Wenzhou Ruizhi Packing Machinery Co., Ltd

Free MemberZhe Jiang - China
Live Chat:
Last Online:14 Jun, 2017

Product Description

RZFD-330  is fantastic full automatic square-bottom paper bag making machine, fed with primary or printed paper roll ,such as: kraft paper,striped brown paper, medico paper,coated paper etc.

Equipped with Germany REXROTH servo motor and servo driver, PLC integrated with optical fiber, Germany SICK tracking sensor and Italy SELECTRA EPC Unwinding system , it completes all processions efficiently and steadily to bring a beautiful paper bag all in a time, including: side gluing, print pattern photocell tracking,computer control length, tube forming, tube cutting off, bottom folding, bottom gluing, and product collection intelligently.



RZJD-330 brings you a beautiful square bottom paper bag, the smallest size of the bag is 140×270x65mm(W*L*H), and the biggest size is 330x530x150mm(W*L*H). Paper specification is 60-170gsm. Max speed 220bag/min.

Technical Parameter

Type

RZFD-330

Bag Width (W)

140-330mm

Bag Length (L)

270-530mm

Bag Bottom Width(H)

65-150mm

Paper Specification

60-170gsm

Max Speed

30-220pc/min

Paper Roll Diameter

200-1200mm

Paper Roll Width

450-970mm

Reel Inner Diameter

76mm

Web Edge Control System

Italy SELECTRA  EPC System with ultrasonic edge sensor

Web Tension Control

Magnetic Powder brake and full automatic constant intension control

Bottom Gluing System

Automatic Induction, saving glue and easy clean

Automatic Oil System

YES

Automatic Counting Function

YES

Power

18.5KW

Weight

8500kgs

Machine Dimension

9000x3450x1900mm

Capacity for 8Hrs

110,000bags



The Main Configuration

Name

Origin and Brand

QTY

PLC

Germany REXROTH

1set

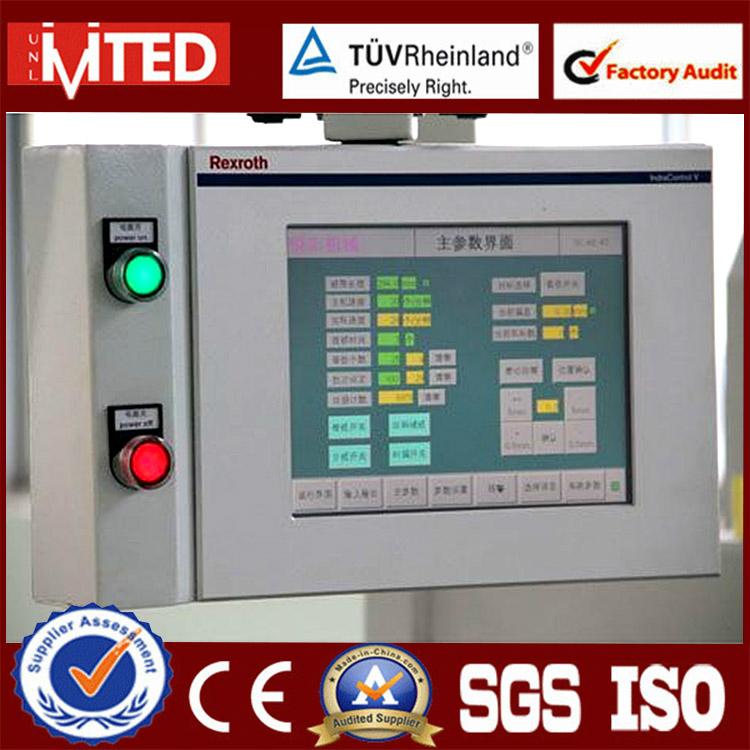

Man-machine touch screen

Germany REXROTH

1set

Servo motor and driver

Germany REXROTH

1set

Frequency Driver

Switzerland ABB

2sets

Color tracking photocell

Germany SICK

1pc

Positioning Tracking photocell

Germany SICK

1pc

Low voltage Apparatus

French SCHNEIDER

1set

Main Motor

Germany SIEMNS

1set

Paper bag shape motor

Germany SIEMNS

1set



AFTER SALE SERVICE

1. Engineer is available to service machinery overseas.

2. Lifetime Maintenance After Sales

3. One year warranty.  During the warranty period, we offer a free replacement due to quality problems caused by damage to the components. Due to the buyer's use improper caused by faults are not within the scope of warranty.



Thanks

Thank you for your consulting. We do sincerely hope to cooperate with your company. By the guarantee of outstanding machine quality, professional engineer, and strong team service, we have faith our machine to contribute for the development your company.



Sincerely hope for a pleasure cooperation

Wish your company: business prosperity



Wenzhou Ruizhi Packing Machinery Co.,Ltd

ZhengLou Industrial Area, WanQuan Town, PingYang County, WenZhou city, ZheJiang,China

Zip Code: 325400  Tel:86-577-63785677  Fax:86-577-63785677

Contact: Jessica Yang Mobile: 0086-013867730584

Email:wzruizhipacking@sina.com  website: www.wzruizhi.com  www.wzruzhi.cn




Payment Terms:TT/LC
