Lilliput PC-7145 7" Portable Navigation GPS Data Terminal with Android 5.1.1

Model:PC-7145
Brand:LILLIPUT
Origin:Made In China
Category:Transportation / Car Accessories / Car Communications
Label:7 inch pc , Android 5.1.1 , GPS
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description

Quick Details

  • Type: Gps Navigator
  • Use: Automotive
  • Screen Size: 7 inch
  • Function: Bluetooth-enabled, Touch Screen
  • Place of Origin: China (Mainland)
  • Brand Name: LILLIPUT
  • Model Number: pc-7145
  • Warranty: 1 Years

Packaging & Delivery

Packaging Details: Lilliput Standard Color Box, Netural White Box, or Custom Design Box.
Delivery Detail: Sample :within 3 work days;100pcs:7-10 work days

PC-7145

7" Mobile Data Terminal

Powerful Qualcomm Quad core processor

4xARM Cortex A7 1.1GHz core

7" 800x480 capacitive touch

450 cd/m² high brightness

500:1 high contrast

Extensions: RS232, OTG, TF & SIM

DC 9-36V wide voltage

ACC / Gpio for optional



Standard solution

Wi-Fi version including Wi-Fi and Bluetooth functions, which is available for ordinary car, vehicle or other industrial applications.



Advanced solution

4G version including not only Wi-Fi and Bluetooth functions, but also 4G and GPS functions, ACC and Gpio are also for optional. lt's suitable for fleet dispatching system, GPS tracking system and other advanced applications.



Portable Compact Design

It features light-weight design, which offer portable and various mounting methods for munltple car, vehicle and other applications.



Application Industries

Rich resource working with Android 5.1.1 OS to apply in different fields, eg. Fleet management, large warehouse management, agriculture & construction vehicle, manufacturing, retail, portable medical device, Human-machine interface, intelligent industrial control system, electric power industry, catering and entertainment, port terminal, container freight, etc.



  Display Screen   7" LED backlit
  Resolution   800×480 (1,152,000 pixels)
  Viewing Angle   140° / 120° (H/V)
  Brightness    450cd
  Contrast   500:1
  Aspect Ratio   16:9
  Touch Panel   Capacitive
  OS   Android 5.1.1
  CPU   Qualcomm Quad core 1.1GHz, 4×ARM Cortex-A7 up to 1.1GHz per core
  GPU   Graphics: A304 300MHz
  Audio: MP3, MP4, WMA, WAV…
  Video Decode 1080P 30fps
  Video Encode 720P 30fps
  Memory   4×ARM Cortex-A7 up to 1.1GHz per core

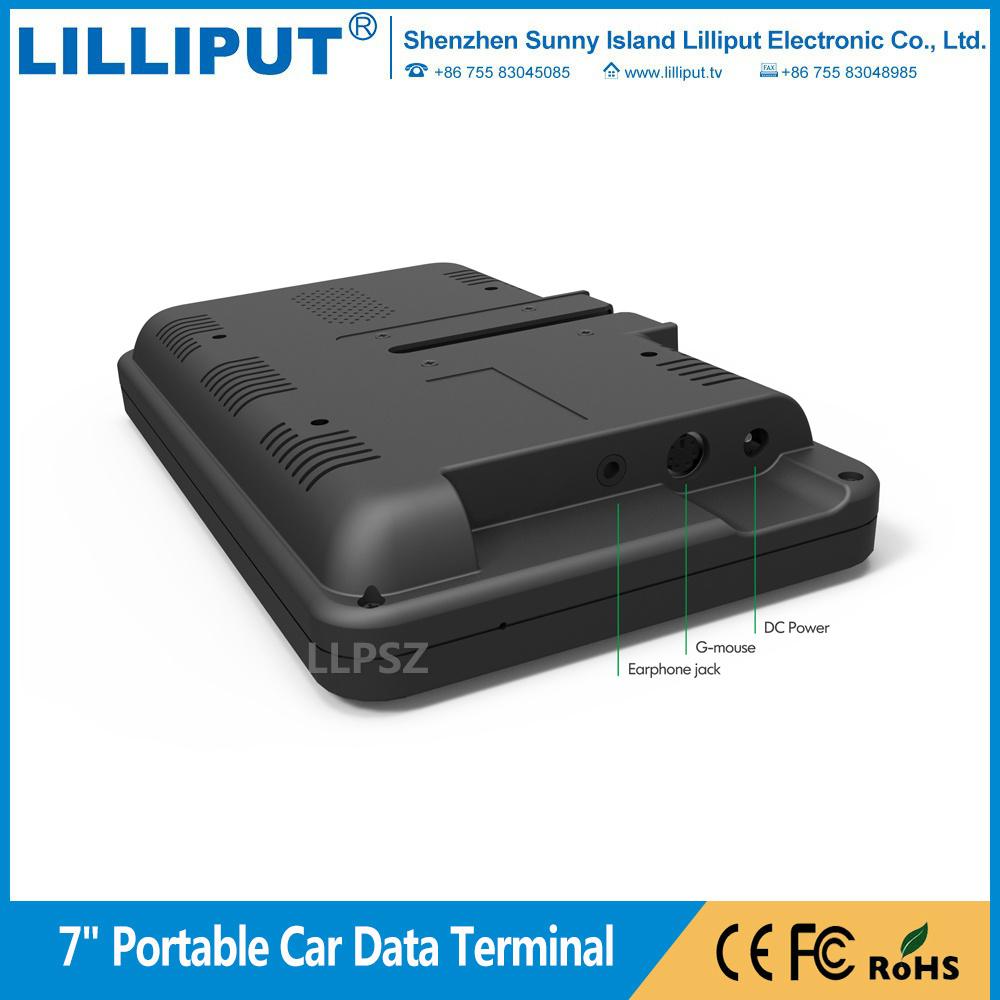

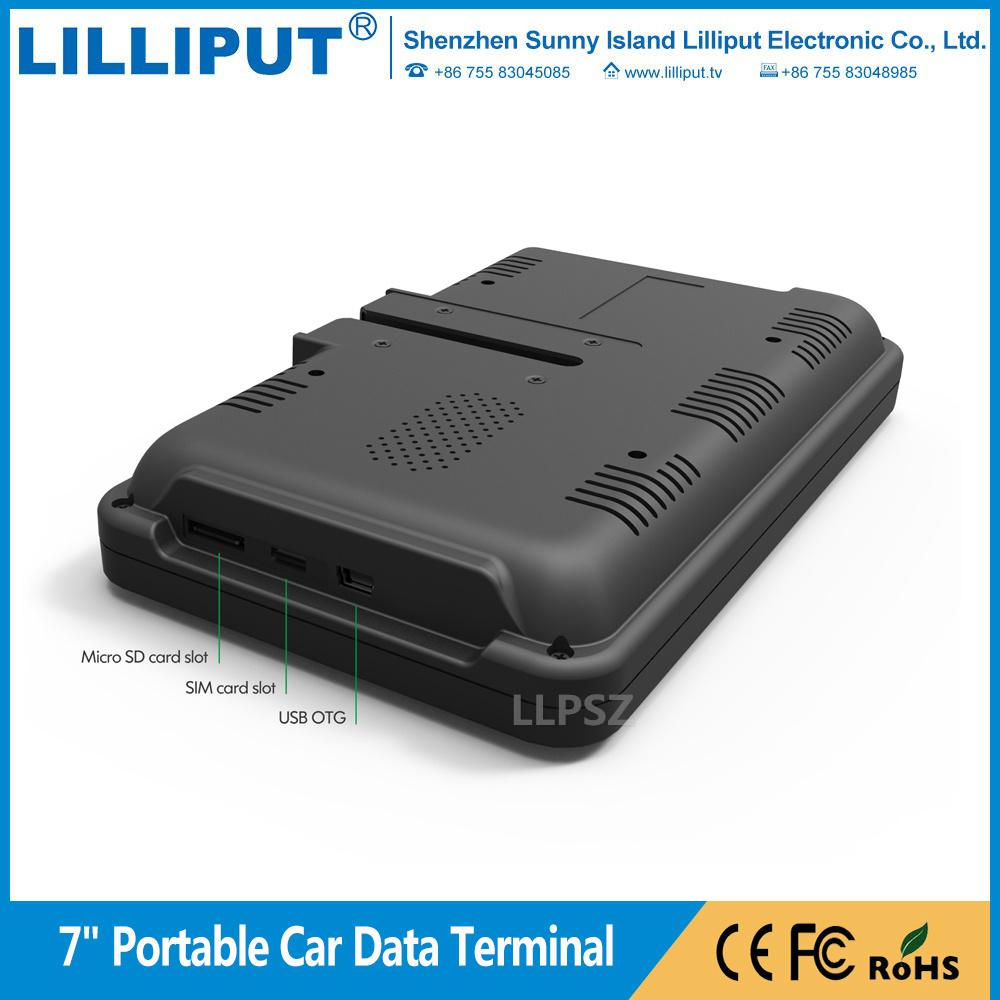

  Interface   Micro SD card slot, SIM card slot,
  USB OTG ×1, Earphone jack, DC power input, RS232×2
  Function   Wi-Fi & Bluetooth
  Optional: 3G / 4G / GPS / ACC / GPIO
  Power   <8W
  Working Temperature   -20 - 60ºC
  Storage Temperature   -30 - 70ºC
  Power Supply   DC 9-36V

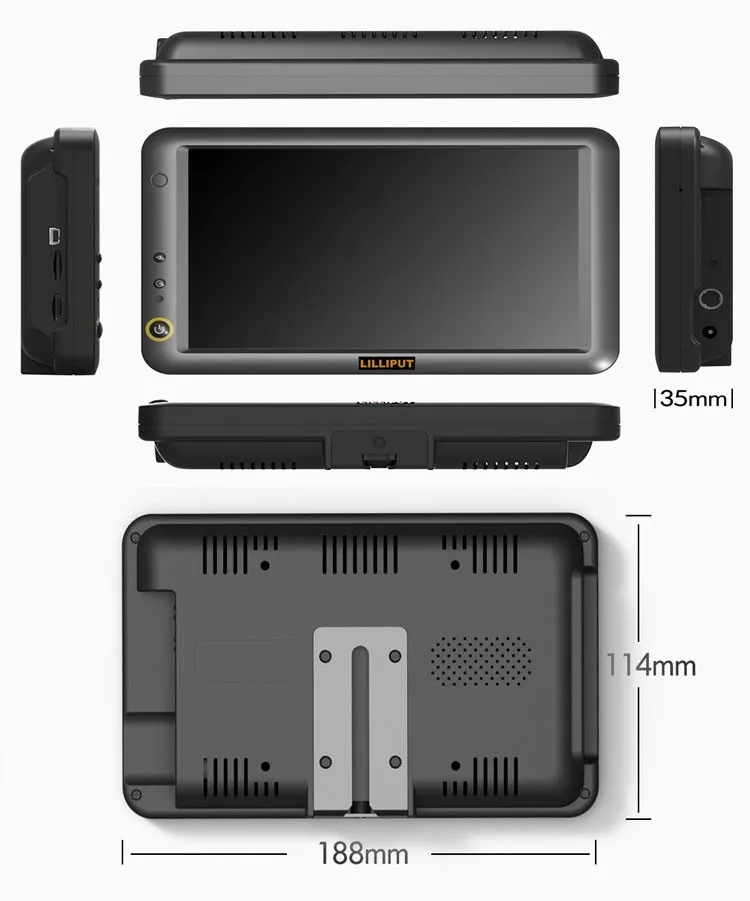

  Dimension(LWD)   188 × 114 × 35 mm
  Weight   442g




Product Image

Lilliput PC-7145 7" Portable Navigation GPS Data Terminal with Android 5.1.1 1
Img 1
Lilliput PC-7145 7" Portable Navigation GPS Data Terminal with Android 5.1.1 2
Img 2
Lilliput PC-7145 7" Portable Navigation GPS Data Terminal with Android 5.1.1 3
Img 3
Lilliput PC-7145 7" Portable Navigation GPS Data Terminal with Android 5.1.1 4
Img 4
