Main Technical Specifications:

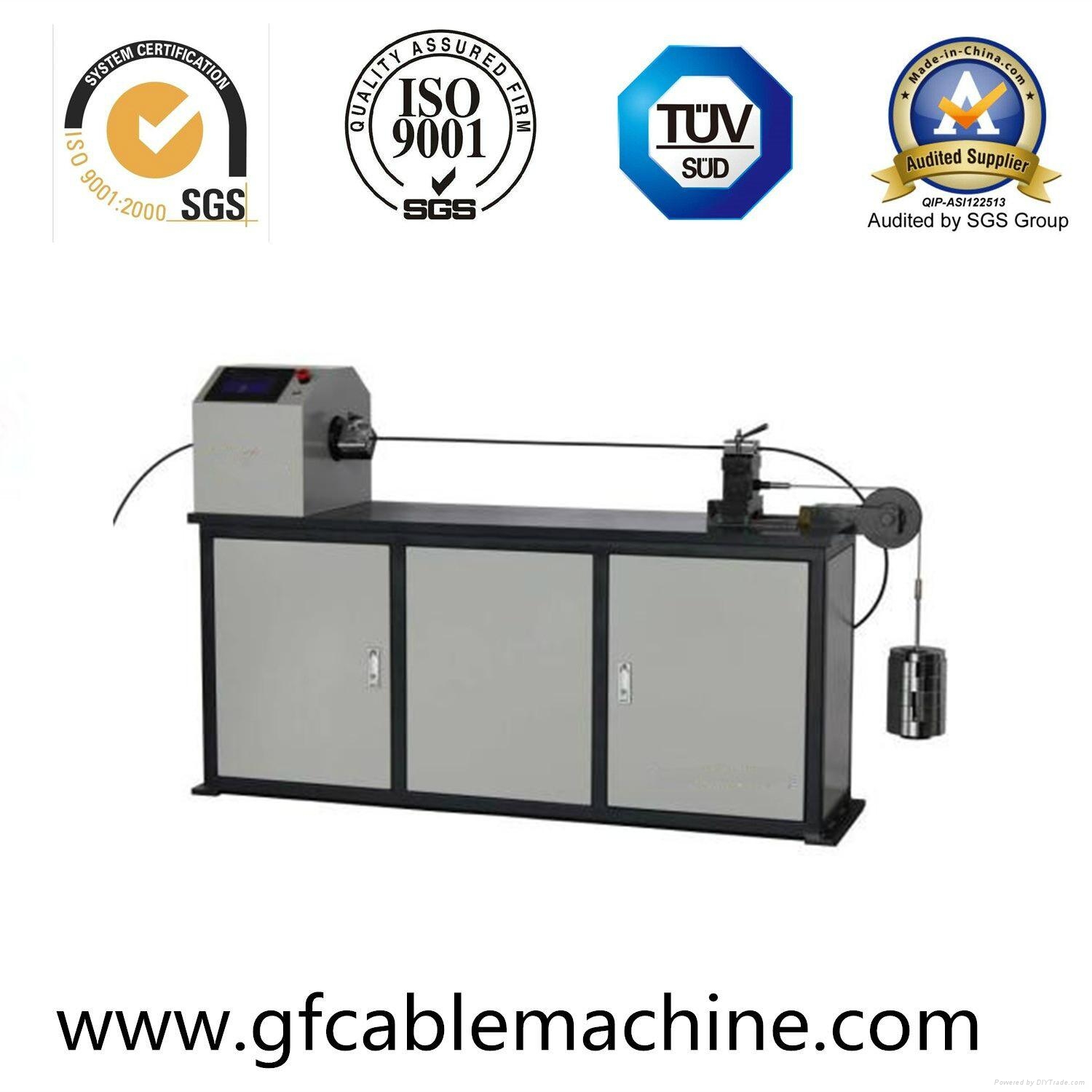

1.Product model: GNZ-1000
2.Max torsion length: 1000mm
3.Torsion angle: ±90°, ±180°, ±360°for choice
4.Torsion speed: (5~30) times/min (when the torsion angle is at ±180°), set arbitrarily.
5.Torsion times: 1~9999, set arbitrarily.
6.Counterweight bracket: 5kg
7.Counterweight: 5kg×4, 2.5kg×1.
8.Tests can begin with stand-only or remotely controlled by computer. Automatically records torsion counts and automatic stop after the test finished.
9.Equipment weight: 600kg
Installation requirements
1.Power supply: single phase, AC220V±10%, 50~60Hz, 1.5kW.
2.Install onto a stable base and room of more than 1 m around.
3.Ambient temperature: 25ºC±10ºC, humidity: ≤80% non-condensing.
4.No vibrating or corrosive media indoor.
