Fiber Laser Machine with 3000x1500mm work, SHLF-3015C
Product Description
Fiber Laser Machine |
Feature |
1) Specialized fast speed cutting of a variety
of metal plates, pipes (add pipe cutting
device), mainly used in stainless steel,
carbon steel, galvanized sheet, electrolytic
plate, brass, aluminum, steel, various alloy
plate, rare metal and other materials.
|
2) Imported high precision doubel servo drive
and rail guide transmission, HIWIN linear
guide, stable driving and high precision
|
3) Machine frame, cross beam and worktable adopt
integralwelding, made as standard large
machine, After the stress reliaf annealing,
rough machining, and then the vibrationaging
treatment. Cancompletely eliminate the
stressofwelding and processing, main tain
high strength, high precision and keep the
mormal use of 20 years without deformation
|
4) X and Y axis equiped with Japan servo motor,
high precision, high speed, big torque, big
inertia and stable performance, guarantee
the high speed and acceleration of the whole
machine.
|
5) Based on Shanghai Cypcut special fiber
cutting machine CNC controlsystem which
based on windows operation system. This
integrates special laser cutting machine
controlling functional modulesand has the
advantage of powerful function, good man-madine
interfaceandsimple operation.
|
Model
|
SHLF-3015C |
Laser type |
Import original fiber laser |
Laser power |
500W 750W 1000W 2000W 3000W (Optional) |
Weight |
5000kg |
Dimensions |
4600x2450x1700mm |
Working area |
3000x1500mm |
Repeatpositioning accuracy |
+/-0.02mm |
Maximum speed |
100m/min |
Maximum Acceleration |
1G |
Transmission |
Double driver rack gear |
Power consumption |
<10KW |
Power supply and frequecy |
380V/50HZ/60HZ/60A |
|
Product Image

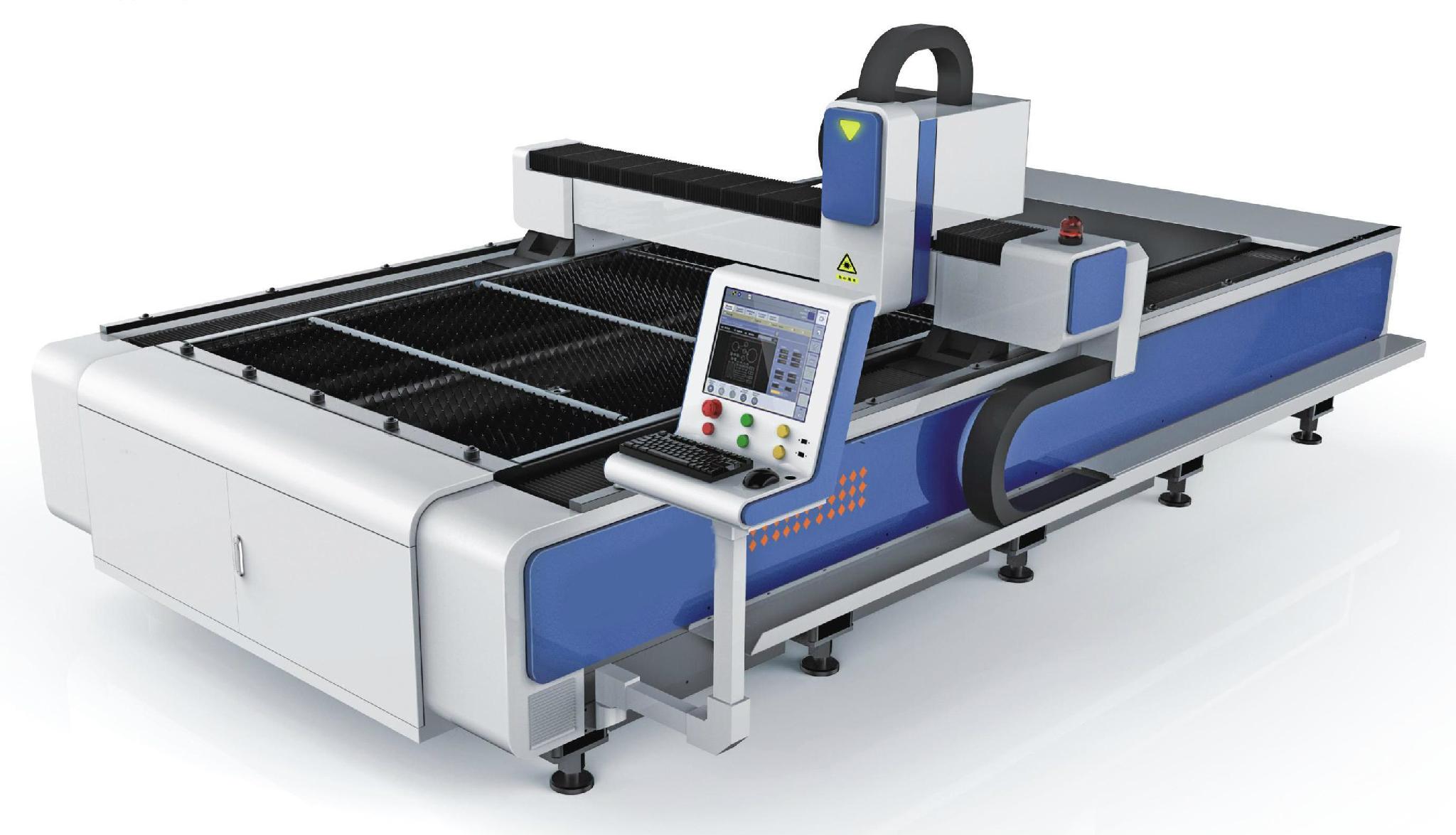

Img 1

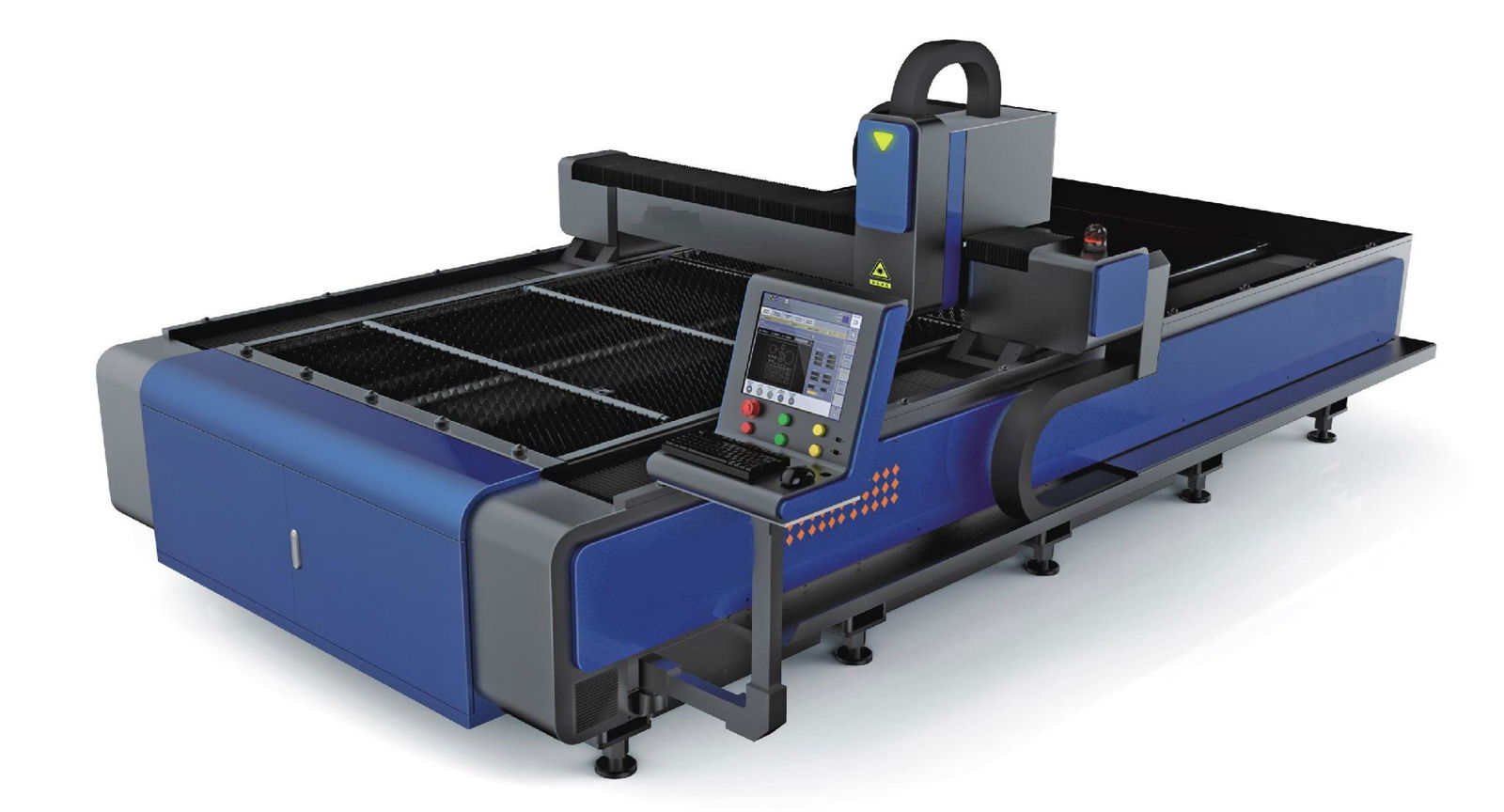

Img 2
