SS686ZZ S686 2RS 6x13x5mm Inox bearing mini fishing reel bearing

Model:SS686ZZ S686RS
Brand:ZOTY
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Insulation
Label:S686ZZ , S686-2RS , S686 2RS
Price: US $0.3 / pcs
Min. Order:500 pcs
Inquire Now Add to Basket

Member Information

Detail

Zoty Industrial Co.,Ltd

Free MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:20 Mar, 2018

Product Description

SS686ZZ S686 2RS 6x13x5mm Inox bearing mini fishing reel bearing Description





Specifications:

·Item: SS686ZZ S686 2RS Ball Bearing

·Type: Deep Groove Ball Bearing

·Closures: 2 Metal Shields / Rubber Seals 2RS

·Lubrication: Self Lubricated (Grease)

·Dimensions: 6mm x 13mm x 5mm

·ID (inner diameter)/Bore: 6mm

·OD (outer diameter): 13mm

·Width/Height/thickness: 5mm

·Size: 6x13x5mm

·Equal: SS686 2Z & SS686-ZZ

·Weight: 0.0025kg

·Precision Rating: P0,P6,P5,P4

·Clearance: C0,C2, C3, C4, C5

·Vibration level codes: V4, V3, V2, V1

·Noise rank: Z1,Z2,Z3 Z4

·Internal elimination code: C0 C2 C3 C4 C5

·Material: Chrome steel (100Cr6,GCr15 )&Stainless steel(420 440 304 316)for you choose





Zoty Industrial Co.,Ltd supply the high performance stainless steel deep groove ball bearings can provides not only with the cleanliness and corrosion resistance characteristic, but also with high accuracy and excellent wear resistance compare to the high stainless steel ball bearings. The rings and balls are made of the material AISI420 stainless steel as a standard structure of deep groove ball bearings, production accuracy could reach ISO standard ABEC-1 and above, and the vibration level reach Z0V0 grade and above.



Specification

Material: AISI420, AISI440C, 304, 316 Stainless Steel

Closures: OPEN/ZZ/2RS

Clearance: C0, C1, C2, C3 Available

Accuracy: P0

Grease: 30% ~ 40% MULTEMP SRL

Temperature: -40℃ to + 110℃

Certification: CE/ROHS

Package: 10pcs into plastic tube / Standard Carton outside

Pallet: Wooden or Iron pallet with plastic film against moisture.



Test Property:

Resist at 96H Salt Spray Test



Application:
Stainless Steel Ball Bearings widely used in kitchen appliance, medical device, rowing boat, door & window which near the sea, food machinery, chemical machinery and clearing machine, etc.


Product Image

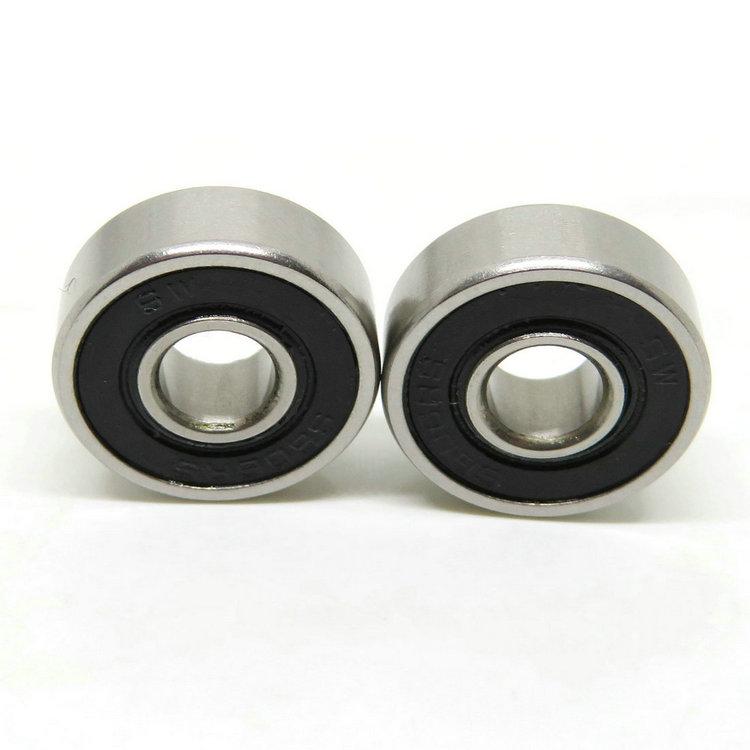

SS686ZZ S686 2RS  6x13x5mm Inox bearing mini fishing reel bearing 1
Img 1

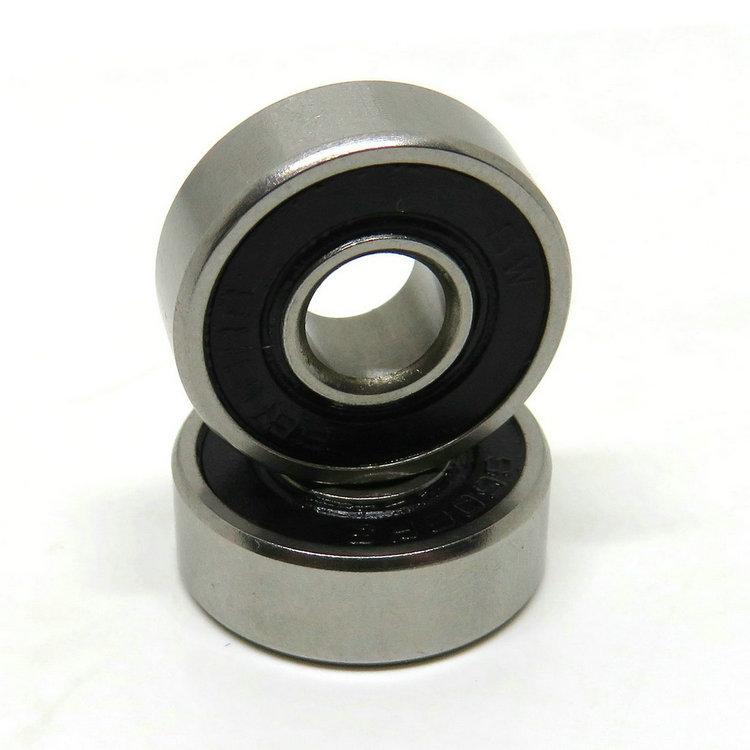

SS686ZZ S686 2RS  6x13x5mm Inox bearing mini fishing reel bearing 2
Img 2

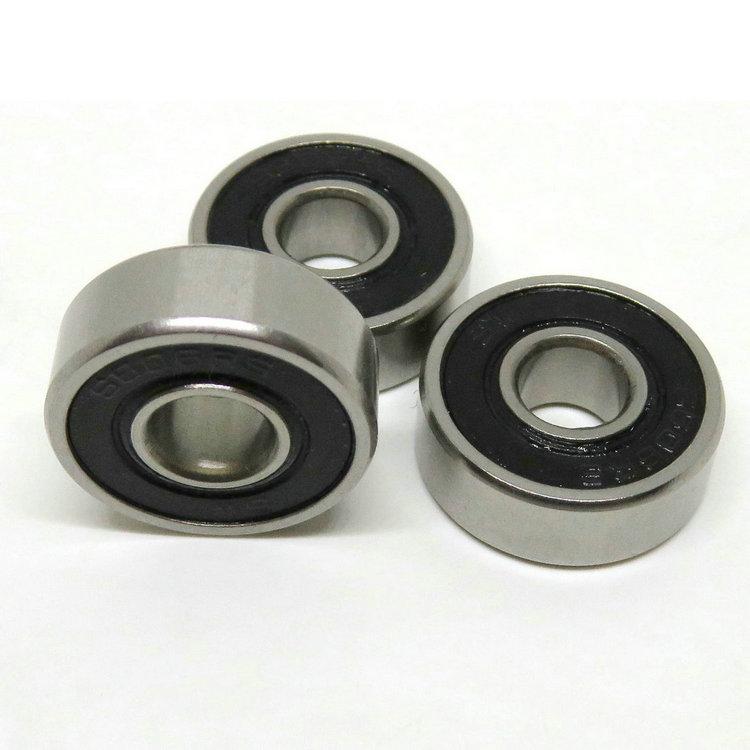

SS686ZZ S686 2RS  6x13x5mm Inox bearing mini fishing reel bearing 3
Img 3

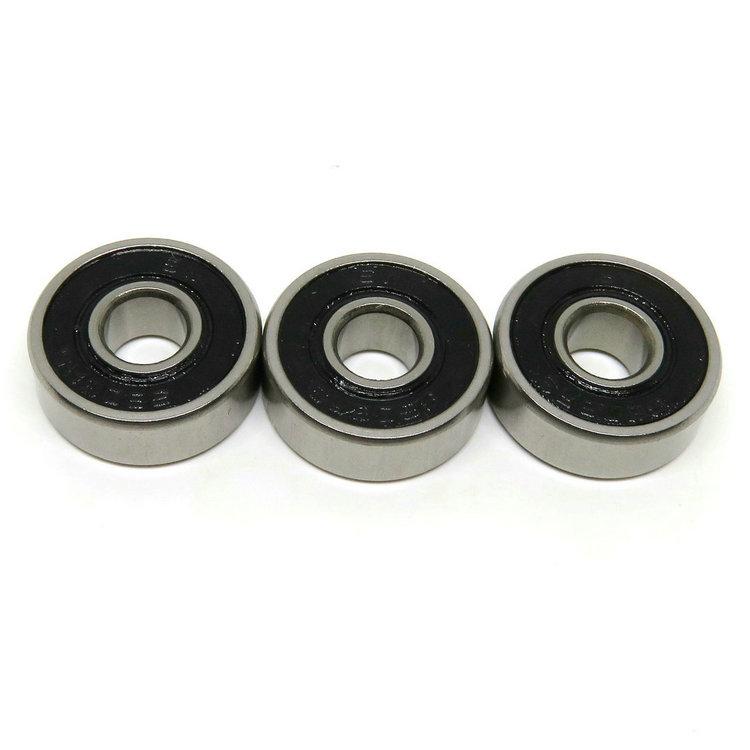

SS686ZZ S686 2RS  6x13x5mm Inox bearing mini fishing reel bearing 4
Img 4
SS686ZZ S686 2RS  6x13x5mm Inox bearing mini fishing reel bearing 5
Img 5
