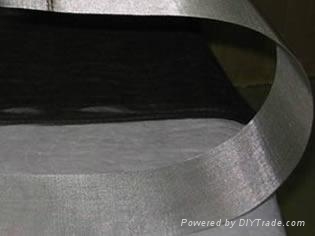

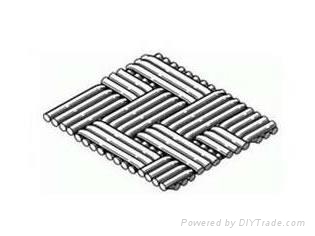

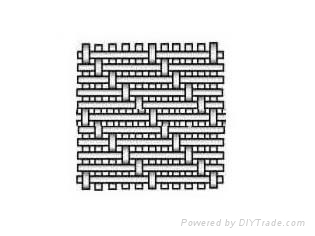

Five Heddle Woven Stainless Steel Wire Cloth has a smooth top surface and an open lower surface. It is ideal to withstand high mechanical strain and excellent filter performance.
Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L.
Packing: wrapped with moister-proof paper, then in wooden cases.
|
Meshes per inch(25.4mm)
|
Wire Diameter(mm) |
Aperture(mm)
|
Open Area% |
Weight(kg/m2) |
|
108 × 59 |
0.160 |
0.075 × 0.271 |
20 |
1.07 |
|
110 × 60 |
0.160 |
0.071 × 0.263 |
19 |
1.09 |
|
38 × 38 |
0.150 |
0.518 × 0.518 |
60 |
0.43 |
