Introduction:

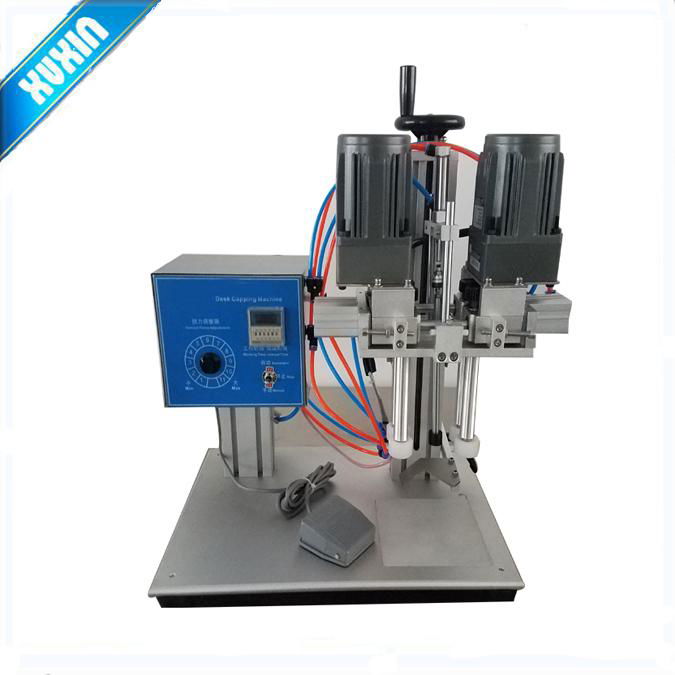

Suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily
chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle
clamping, delivering and cap screwing. It is characterized by high level of automation, outstanding stability, easy
adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by adjusting. .

Features:

1, the electrical control movement;
2, positioning device, easy to operate;
3, locking cover wide range of lockable caps of different switch sizes;
4, locking cover, speed adjustable, can adjust the tightness of different caps

Application:

Suitable for cosmetics, pharmaceuticals, beverages and other bottles of the lock cover.

Parameters:

Model : XX-6100
Power supply : AC220V/50Hz;
Power consumption : 90W;
Air source pressure : 5-6kg/cm2
Cap diameter : 20-50mm;
Bottle height : 50-400mm;
Twisting force : 4-8kg/cm2
Sealing speed: 30-45pcs/min
Percentage of damage : 0.1%
Production capacity : 600-1800 bottle/hour;
Overall dimension/ weight : 620LX560WX770Hmm./ 30kg
