automatically Container hot stamping machine

Model:H-120CH
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Gilding machine , hot stamping machine , soft-tube stamping
Price: US $27692 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Company Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:23 Jul, 2018

Product Description

Full automatically Container hot stamping Machine //Structure

Working table

10 stations rotating disk, index plate control

Surface treatment

Flame treatment

Press

Vertical press

Temperature control

IR Heater, automatically controlling

Foil collecting

Automatically collecting

H-120CH Full automatically container hot stamping machine //Usage and characters

Guide

  • Common type of PE soft-tube gilt; Suitable for all kinds of soft-tube made ​​of plastic material gilt;
  • With the smooth side of the cap are suitable for this machine gilt;
  • Also for some of the cosmetic cover a diameter less than 40mm gold foil.
  • With automatic transmission is fully automatic stamping machine cap, the cap for a top side of the gilt automatic stamping machine;
  • Structural design of the central compact structure; bottle feeding from the side, facing into the stamping station;
  • Stable horizontal movement, the frequency motor control, stamping pressure evenly, stamping quality;
  • Programmable logic controller fine-tuning various parameters, a good user interface;
  • Set a single machine debugging feature operation is set up can be fully functional operation;
  • As the bottle with the top and bottom of the points, the machine can automatically identify, saving labor costs and labor intensity.

Application fields

  • 35mm in diameter, about the various sides of the foil cap;
  • All kinds of plastic material cap bronzing;
  • Various painted metal surface on the side of the bottle cap gilt;
  • Liquor industry, plastic containers and packaging industry, cosmetics industry, cap side tipping.

H-120CH Full automatically container  hot stamping Machine //Parameter

Technical parameters

  • Total consume Wattage: 260W;
  • Stamping temperature Rnange:20∼300℃;
  • Compress air Pressure﹕5-8Bbar;
  • Products Diameter:﹕(φ15~Φ35mm)×(20~60mm)
  • Max stamping Speed:2000-3000pcs/h
  • Outer dimension: 2300×2160×1200mm;
  • Net weight(kg) : 420;
  • Motor wattage: 1500W;
  • Power supply: 220V;
  • Heater wattage: 800W IR.

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package size: 2770×1680×1790MM;
  • Gross weight: 745kg
  • CBM: 8.329

H.S.Code

8443198000

Certificate

CE

H-120CH Full automatically Container hot stamping machine //Advantage

Function

  • Vertical cylinder pressure mechanism design, a strong pressure;
  • Stamping head can be adjusted for back-front, Left-right, Up-down, easy to operate safely and quickly;
  • Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
  • Stamping pressure, temperature, time stamping adjustable;
  • Automatic foil feeding , Foil collection, and adjustment;
  • Lift stamping head height adjustable;
  • Bin storage, automatic Crawler installed for cap feeding;
  • Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
  • Automatic stamping process;
  • The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system, the action using SMC Corporation pneumatic control;
  • With a square column design, the machine structure, solid and durable;
  • Shift the amount of imported high precision sensor control, to ensure that the hot stamping effect more perfect;
  • Precision linear bearing high-quality, durable, lightweight and flexible to ensure that the machine is running, to extend the mechanical life.
  • IR heating, heating, high efficiency, stability and ensure stamping quality.
  • Rotary table design automatic inflatable device for stamping cap sideways

Product Image

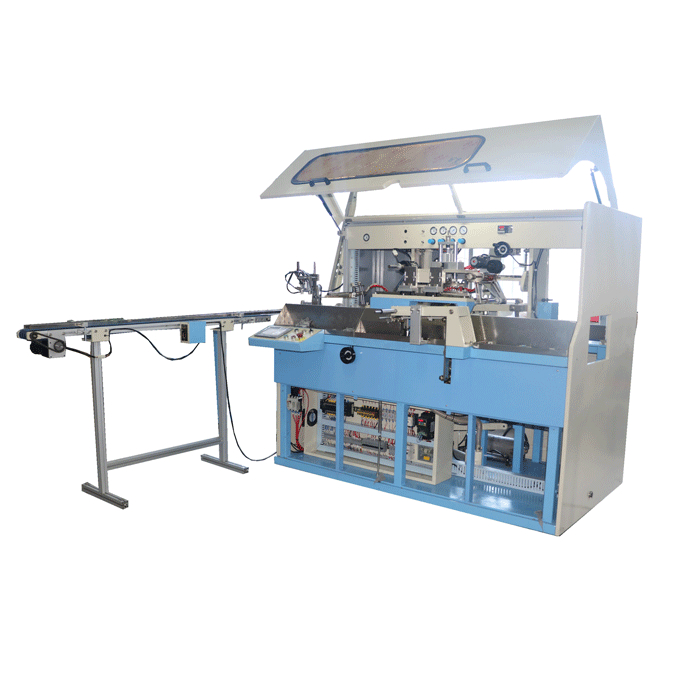

automatically Container hot stamping  machine  1
Img 1
automatically Container hot stamping  machine  2
Img 2
automatically Container hot stamping  machine  3
Img 3
automatically Container hot stamping  machine  4
Img 4
automatically Container hot stamping  machine  5
Img 5
